Nanjing Xingtailong Special Ceramics Co., Ltd products
95~99 Porcelain Products
Model 95~99 - Porcelain Products
According to customer needs, we can process all kinds of 95~99 porcelain products.
Porcelain Insulator for Electrostatic Precipitator
Model 95 - Anti-Explosion-Type Suspension (Pull Rod) Porcelain Insulator
Rated DC voltage: 72～120kV. Tensile failure load: ≥20kN. Temperature resistance grade: 95 porcelain is suitable for 500 ° C. It can be distributed to the hot plug and has self-defense protection.
Insulator for Radio and Television Transmission Tower
Model 150 m - High Frequency Base Insulator
Loading base and insulation for 75-150 m medium wave self-standing tower steel tower. The load carrying capacity is 1500-7000 kN respectively. High frequency dielectric loss: tg δ (1.5MHz, 20 ° C) ≤ 4 × 10 -4.
Vacuum Tube Shell (Metallized Ceramic Tube)
Vacuum Tube Shell (Metallized Ceramic Tube)
High power 126KV and above 95 porcelain vacuum tube.

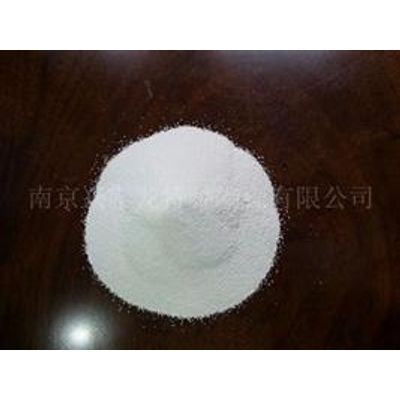

Alumina Spray Drying Granulation Powder
Spray Drying Granulated Powder (95 Porcelain Alumina Granulated Powder)
Spray dried granulated powder (95% alumina).
Various Other Special Insulators
Corrosion Resistant High Temperature Suspension Insulation Rod
Material: 95% AL2O3. For insulation support in high temperature and corrosive environments. Rated voltage: 45 kV ; air tightness: 0.2MPa ; temperature resistance:500 °C.
