Nantong Delta Filtration Material Co., Ltd. products

Poly Classic A PP Melt Blown filter cartridge is made with 100% polypropylene material, the PP spun filter can work as RO pre-filter and provides superior flow rate and good protection for downstream membrane systems. Graded pore structure design can greatly increase its dirt holding capacity and improve its service life.In the manufacture of these filter cartridges, all polypropylene components meet USP, Class VI(121?/250°F) toxicity criteria. The depth filtration structure with thin outer and dense internal gradient has high removal efficiency, which can effectively remove suspended substances, particles, rust and other impurities in the liquid flow. Jumbo spun filter is also available.

DELTA PP wound filter cartridge is also called string wound water filter, it is a kind of depth filter cartridge, which is made of the textile fabric string (polypropylene, absorbent cotton and so on) preciously winding onto the multi-hole axies according to the specific technology. It is ideal choice for particle removal because of high dirt holding capacity, which offers good protection for downstream membrane systems, it can reduce plant operation cost significantly due to long service life.

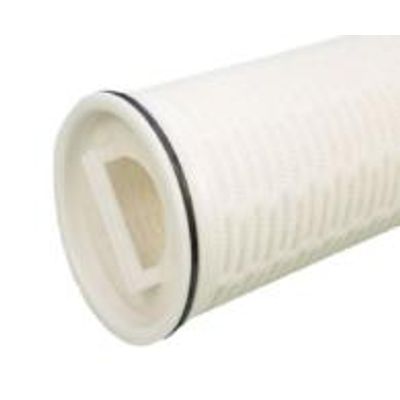

Pleat Plus P high flow filter cartridge is retrofit for Pall Ultipleat high flow filter, it is constructed with 6 inch (152 mm) large diameter which offers super high flow rate, it can greatly save water treatment plant footprint and reduce filter change-out cost. Inside-out flow operation keeps all the contaminants inside the filter thus making replacement process more convenient. Available filter media includes polypropylene and microfiber glass with pore size from 0.5μm to 100μm. Pleat Plus P series provide a more cost-effective solution

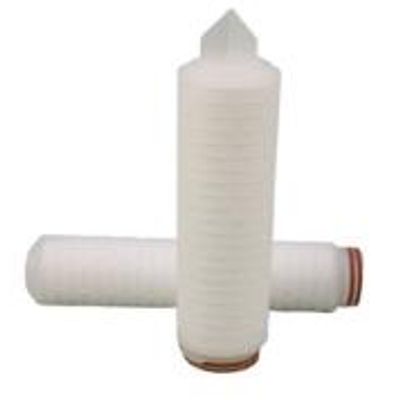

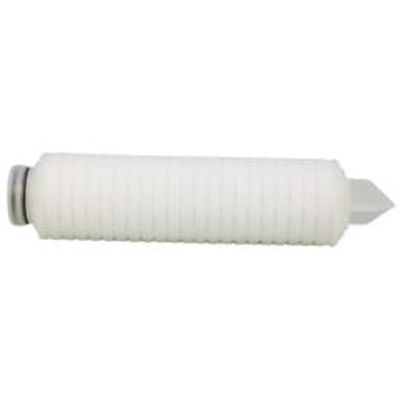

Poly Pleat BR-PES filter cartridge is designed for liquid filtration process where bacteria needs to be removed, it is constructed with 100% FDA compliant PES membrane and PP hardware, easy wetting PES membrane reduces dynamic flush time, thermal welding process makes sure no adhesive is used, Poly Pleat PES filter cartridge is bioburden reduction grade, it can be used as pre-filter in wine, beer, soft drinks, pure water, and Biopharmaceutical applications.
Poly Pleat BR-PES series is 100% integrity tested and makes sure no fiber release to downstream.

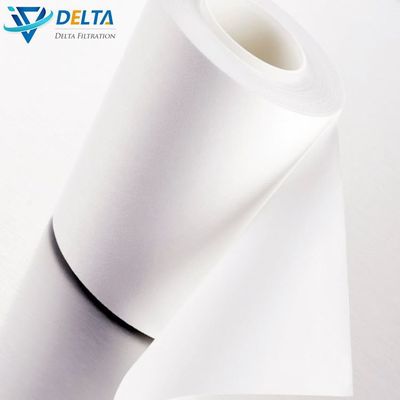

FlatMem PES membrane filter is manufactured by hydrophilic polyethersulfone polymer, highly asymmetric structure retains large size contaminants at upstream and small organisms at downstream, providing high flow rate, large dirt holding capacity and long service life. Good hydrophilicity makes it easy wetting and short rinse time by pure water. The flat sheet PES membrane has broad chemical compatibility offering good resistance to high-temperature, acid and base. Low protein binding and extractables makes the PES membrane filter a good choice for Food&Beverage and pharmaceutical process.

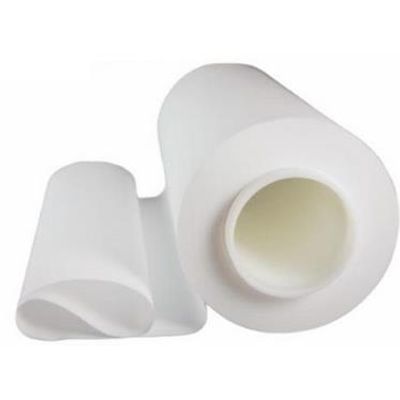

FlatMem hydrophilic PVDF membrane filter is modified from hydrophobic PVDF(polyvinylidene fluoride), manufactured by state-of-the-art process under 9001 quality management system, unsupported flat sheet PVDF membrane provides high flow rate and throughput, low protein binding and extractables. With uniform pore size distribution, FlatMem PVDF offers high retention performance which makes it a good choice for particles and microorganisms removal, large volume parenteral or ophthalmics manufacturing. Available pore sizes are 0.1μm, 0.22μm, 0.45μm, 0.65μm and 1.0μm. PVDF membrane roll is available with 270mm width.

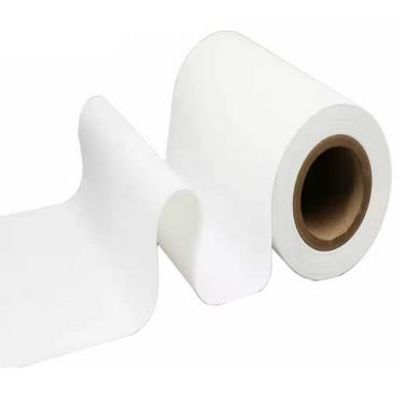

FlatMem Hydrohopbic PTFE membrane filter is naturally hydrophobic which makes it suitable to be venting membrane, uniform pore size distribution contributes to high rejection rate to particles and bacteria as well as providing high flow rate. Teflon membrane filter has broad chemical compatibility offering good resistance to high-temperature, acid and base, it is available with steam and autoclave sterilization. Advanced casting and lamination technology reduced fiber shedding and extractables. Polytetrafluoroethylene membrane sheet and roll are available.

Fluoro-Pure DFP Series Ultrafiltration module is developed to replace Dow SFP 2860 and 2880 membrane, compared with PES, PVC and PAN materials, PVDF has much better resistance to chemicals especially sodium hypochlorite-which is main chemical used for membrane cleaning.

Fluoro-Klean Hollow fiber MBR module ( MBR cassette also available) is developed to replace secondary clarifier to save footprint and provide higher quality permeate. The submerged membrane bioreactor is made with hollow fiber PVDF membrane, reinforced structure makes it suitable for critical wastewater treatment without fiber breakage, 0.1μm pore size contributes to good rejection to contaminants as well as offering high flow rate. Fluoro-Klean HFMBR is available with MBR module and cassette, it is suitable for domestic and industrial water treatment, wastewater reuse and recycling and other processes where wastewater need to be treated before discharge.
