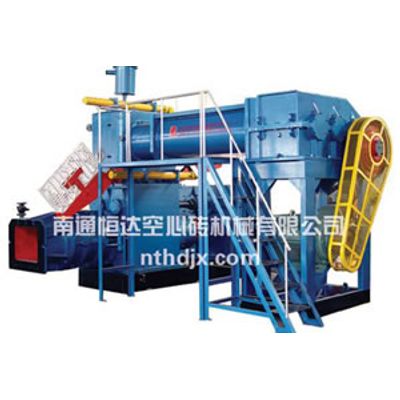

The superior and subordinate of HD90-75 clay brick maker adopt separate drives. The superior mixes separately. It is applicable for high vacuum to hard extrude thin-walled and porous shale, coal gangue, and clay brick. That`s a reasonable structure. The extrusion pressure is great, and the biggest one is 4.0Mpa. The machine works in an efficient way and saves energy. Its yield is very high, 16000 to 26000 pieces every hour.  It is of wide practicability and is the ideal equipment for technical transformation of small and medium sized brick and tile enterprise.

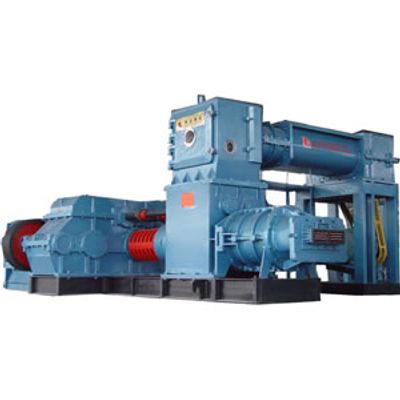

Brick Vacuum Extruder with Reamer Diameter 600/600 MM, Max extrusion pressure 4.0 Mpa. JKY60/60-40 double vacuum extruder manufactured in our company is mainly used in brick and tile factory to produce bricks and tiles and other clay products. It is also used to produce ceramics. The processed pug is changed into the needed billets by the machine through the following steps. It is mixed first, next treated by vacuum, then conveyed and squeezed by spiral reamer, finally extruded by a fixed shaped opening. Brick vacuum extruder has the reasonable structure. Its extrusion pressure is very big and the biggest one is 4.0Mpa. Its yield is very great, 19600 to 23000 pieces every hour. At the same time, it is applicable for high vacuum, squeezing thin-walled and porous shale, and coal gangue and clay brick.

A Brick Vacuum Extruder with Reamer Diameter 550/500 MM, Max extrusion pressure 3.5 Mpa. The JKY50/50-35 double vacuum extruder is mainly used in clay brick production line. It is also used to produce ceramics bricks. The processed pug is changed into the needed billets by the machine through the following steps in clay brick production line. It is mixed first, next treated by vacuum, then conveyed and squeezed by spiral reamer, finally extruded by a fixed shaped opening.  JKR55/50-35 Brick Vacuum Extruder has the reasonable structure. Its extrusion pressure is very big and the biggest one is 3.5Mpa. Its yield is very high, 15000 to 18000 pieces every hour. At the same time, it is applicable for high vacuum, squeezing thin-walled and porous shale, and coal gangue and clay brick. The main components are reducer, pneumatic clutch, gear box, stirred tank, vacuum box, and mold. The body of of JKY50/50-35 brick vacuum extruder is all made of welded steel plates

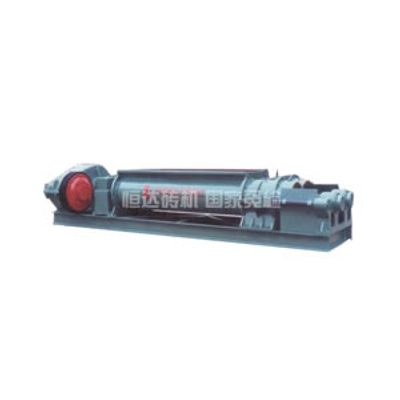

Double shaft mixer and extruding machine is suitable for brick making raw material that has already be treated by the process of batching and crushing. The mixing and extruding machine processes the raw material by water distribution, mixing, homogenizing, squeezing, exhausting and maiming so that the capacity of unit volume of raw material can significantly be improved. The double shaft mixer and extruding machine has excellent property. It is one of the key equipments in clay hollow brick production line. The main components are clutch, reducer, twin-shaft extruding part, mud cylinder and mud nozzle.

The machine is used to carry out further fine crushing of the material that has been treated by coarse crushing and secondary crushing before. The double roller crusher has excellent performance and presents good crushing effect. The main components are motor, belt drive, double roller and scraper.

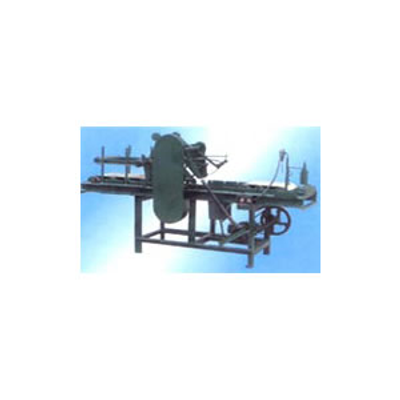

Clay strip cutter is applicable for softer non-particulate pug, such as clay and soft shale etc. It is also suitable for some pieces of ductile mud of low moisture content. clay brick cutting machine. Nantong Hengda Non-burned machinery engineering co., ltd specializes in manufacturing brick and tile machinery. The enterprise produces clay brick machine, concrete block machine, coal crusher, hammer crusher and PVC pallet. In more detail, clay brick machine includes vacuum extruder, double shaft mixing and extruding machine, roller crusher, clay strip cutter, billet cutting machine, belt conveyor, vacuum pump, YXP3100 Hydraulic unloading machine, billet transportation cart. It has the advantages of high yield and energy saving.

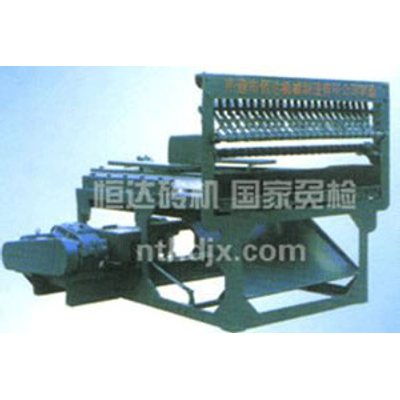

Belonging to the building material machinery, billet cutting machine is mainly used for standardized bricks and hollow bricks in brick factory. Its surface is made of hard stainless steel and is resistant to the friction of mud sliding. It is able to relieve some clay and save 30 percent of oil. Its service life is several times longer than one whose surface is made of cast iron and active steel. The worn surface can be easily replaced. That avoids scrapping the whole machine.

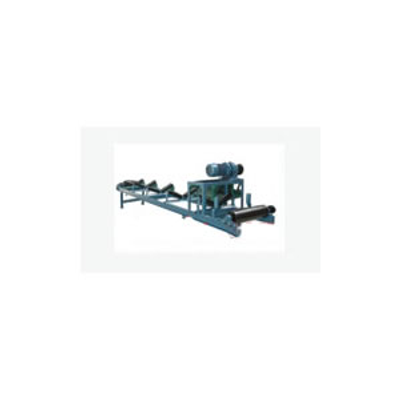

Clay brick belt conveyor conveys those articles that are of flat bottom along horizontal lines or lines of small tilt angle, such as pallets, rods, tubes, profiles, box container pallets, and other kinds of workpiece. Facing the flexible items and articles of non-flat bottom, clay brick belt conveyer carries them with pallets. Clay belt conveyer has the features of simple structure, reliable running, easy maintenance, economical operation, energy saving and so on. The most outstanding feature is that roller conveyer connects and supports the production process smoothly due to diverse functions.

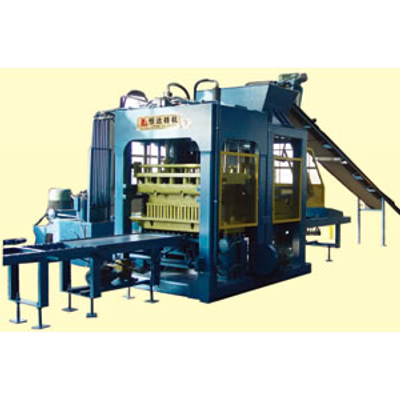

Concrete Block Machine Manufacture with yield from 2400 pieces/h to 11520 pieces/h. QT10-15 hydraulic block making machine is used to process cement, stone, sand, coal ash, construction waste and other materials and produces wall blocks, road bricks, and curbstones etc. It is environment-friendly energy-saving. It has passed ISO9001 and CE certification. It has achieved a patent called the national utility model. Its all supporting molds have been heat treated and become durable.

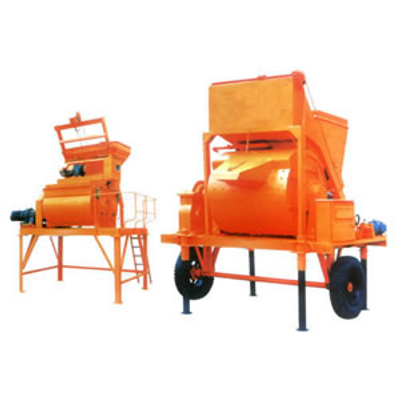

Compulsory mixer is one of twin horizontal shafts compulsory concrete mixers. It is used to mix dry and rigid concrete and all kinds of mortar for highroad, bridge, water conservancy, various small and medium-sized precast component factories and other industrial and civilian architecture working department. The main components are mixing system, feeding system, water supply system, discharging system and electrical system. The material is mixed uniformly by stirring blades. There are several types of Compulsory mixer, such as JS1000, whose yield is great, at least 60m3 every hour.
