National Vacuum Equipment, Inc. products

Features: Exclusive NVE automatic oil pump. Rugged braided stainless steel oil delivery lines. Ductile iron housing. On truck serviceability. Remote mount 5 quart see through oil tank for constant oil level monitoring. Available in both clockwise and counter-clockwise rotation. Two year warranty against manufacturer defect. Designed, built, and supported in the USA.

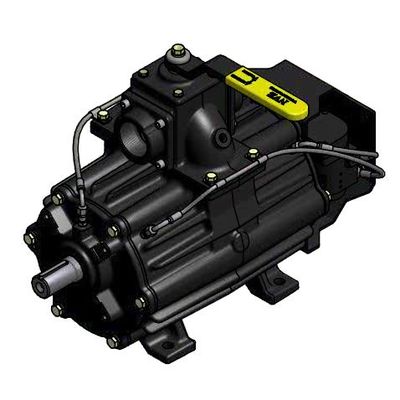

Lifetime warranty on the housing against cracking. The NVE bi-rotational, four port oil pump is exclusive to our “oil management system” delivering the precise amount of oil required for any job. Easily adjustable to 5-24 ounces per hour. Rugged braided stainless steel oil delivery lines. Integral vacuum relief valve. Vane flush port with valve. Vane wear inspection port. Proven crash protection allowing all major components to survive a catastrophic failure. Remote mount 5 quart see through oil tank for constant oil level monitoring. Integral, easily accessible, final filter. Thermometer to monitor exhaust temperature. Multiple drive options (gearbox, belt, hydraulic, and direct). Two year warranty against manufacturer defect. Designed, built, and supported in the USA.

Features: Lifetime warranty on the housing against cracking. Ductile iron housing. The NVE bi-rotational, four port oil pump is exclusive to our "oil management system" delivering the precise amount of oil required for any job. Easily adjustable to 5-24 ounces per hour. Rugged braided stainless steel oil delivery lines. Vane flush port with valve. Vane wear inspection port. Integral, easily accessible & cleanable, stainless final filter. Proven crash protection allowing all major components to survive a catastrophic failure. Multiple drive options (gearbox, belt, hydraulic, and direct). Two year warranty against manufacturer defect. Designed, built, and supported in the USA.

Continuous Duty Performance at Maximum Vacuum. Tri-Lobe Design with Precision Machining. Ballast Port Manifold – Cools blower through air injection. Range of Airflow – Performance available to accommodate power. Oil-less Operation. 4″ Hose Barbed Adjustable Porting for Intake and Exhaust. Integral Final Filter with Easy Access Cleaning. 4-Way Pressure/Vacuum Change Over Valve. Designed, built, and supported in the USA.

Features: Tri-lobe design with precision matching. Oil-less operation. Continuous duty performance. Installation ready. Ballast manifold available. Designed, built, and supported in the USA.

Features: 607 PRO Heavy Duty vacuum pump with vacuum / pressure change over valve. Yanmar 36.8 HP diesel engine or Vanguard 37 HP gasoline engine with 50 amp alternator. NACD clutch on the diesel engine. 4.0 GPM water pump @ 4000 PSI with adjustable pressure setting. Belt and pulley drive. Fully integrated electric clutch for pressure pump drive.

Features: Steel or Stainless Steel Body; Stainless Steel Stem, Seat, Gate and Guide are Standard. Viton Seals Standard; Viton O-Ring Seal on Seat; Other O-Ring Materials Available. Completely Re-buildable and Self-Cleaning; accepts TTMA and ANSI Flanges. MAWP100 PSI; Burst Pressure greater than 400 PSI.

Features: Female NPT thread ports on both ends. Full bore. Brass body. Steel lever handle.

Features: Brass construction; double gate.

Features: Brass construction. Double-acting pneumatic jack. Anticorrosion stainless steel screws. PPS, Power Plus System.
