Neo Conveyors products

Neo conveyors are leader in manufacturing of Industrial conveyors.Our products are Belt conveyors,Trough Belt conveyors,chain conveyors,Drag chain conveyors,screw conveyors,Bucket elevators,Truck Loader,Bag stacker etc. we manufacturer conveyors as per client requirements .Please visit www.neoconveyors.com for details.

Apron Conveyors are used to carry materials and pieces horizontally and inclined lines. Neo offers Apron conveyors, which are made of pans with uneven edges to keep a check on material loss. Neo Conveyors offers Apron Conveyors which are flexible for adaptation to lifting loads from hoppers bins. Apron Conveyors can be regulated by adjustment of a sticker plate at the entrance point. Neo Conveyors have a heavy handle, which can handle abrasive and hot material. Apron Conveyors are capable of handling material up to 2000 per hour and does not cause noise pollution while carrying the material.

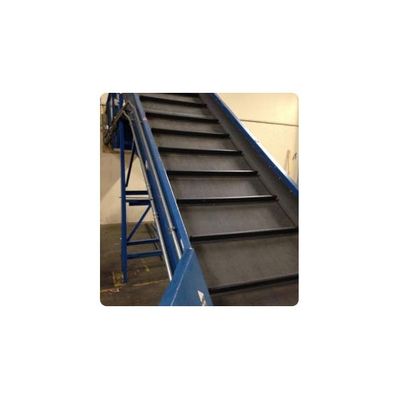

Inclined cleated belt conveyor suitable to handles bags, boxes, cartons, and loose parts. Materials move from horizontal to inclined 35 degrees for various uses, including floor-to-floor conveying and the transportation of materials from one floor to another floor, building to truck. Conveyors can be supplied with different cleat heights, width, and spacing to suit your application. Standard belts are M24 Grade Nylon Belt, PVC, neoprene, white food handling, or other optional belt types per your specifications. Systems are also manufactured with sidewall belts for conveying open food products, loose granulated products.

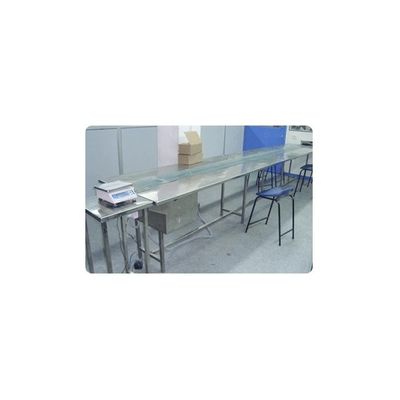

Inspection conveyor on which products can be conveyed, allowing them to be visually scanned for imperfections or for sorting. However, the Belt Inspection Conveyors, do so using a durable belt conveyor, as opposed to rollers. Belt conveyors are often used in the fresh vegetables or general material industry to grade prior to polishing, washing or packing. Neo Inspection Conveyor, are specifically, designed with a low conveyor height, eliminating the need for workers to stand on a platform during the inspection. The conveyor lifts the berries to the height of the hopper and comes equipped with trash conveyors on each side to carry away discarded berries. Inspection conveyors are available with wire or solid top belt, telescopic leg heath, casters, and optional speed drive.

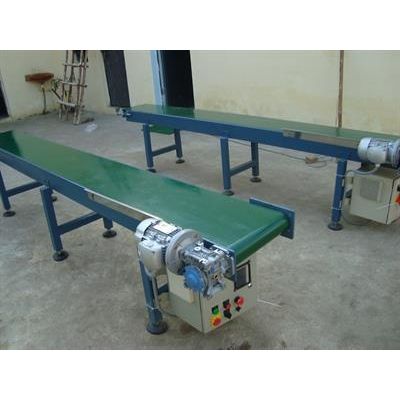

These conveyors are engaged in the inline assembly of products/processes of components, reducing the manpower cost per piece. It is designed to successfully complete the task required in the assembly line, such as the no. of operations, time cycle for each operation, and is the most profitable manufacturing solution.

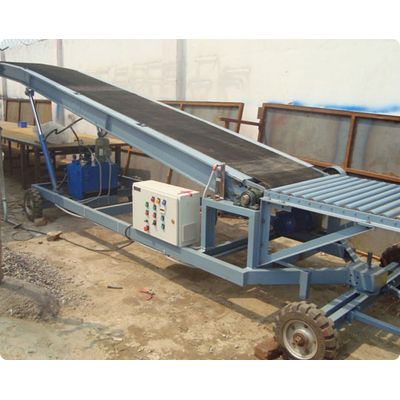

Mobile Truck loader, is an ideal choice, if, you have no loading or unloading dock. Truck loading conveyors are highly versatile. These conveyors require very little space and can be easily moved to load or unload vehicles in different locations, catering to all types of vehicles. Height adjustment is possible through the mechanical screw system as well as Hydraulic. Our conveyors are custom designed and fabricated as per the needs of the application and can be customized for dimensions, conveying capacity & loading/unloading capacity required according to the material to be conveyed.

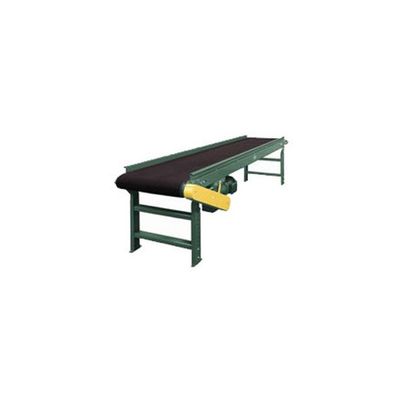

Slider bed horizontal belt conveyor is often used for assembly line operations, sorting, trash handling, inspection, or packing operations. Slider Bed Belt Conveyors are suitable to transport a wide variety of products, of different weight,  various shapes, and sizes, on horizontal surface applications, as well as in incline and decline applications. Neo’s Slider bed belt Conveyors are an energy-saving unit with a robust structure. When equipped with an end drive, the conveyor is used in a one-way mode of transportation. However, when equipped with a center drive, the conveyor is capable of being reversible.

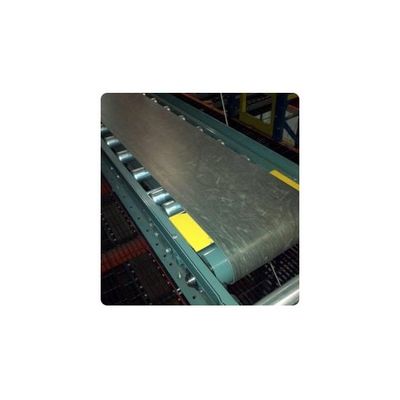

Use of roller bed under the belt instead of the formed metal bed, there is less resistance, between the belt and the conveyor bed. They are a built-in box channel designed for safety and appearance and are available in multiple widths to meet your requirements. Roller bed belt conveyor,  make it easy to transport, approximately up to 100kg weight per meter to the specified destination. A wide variety of shapes and sizes can be moved, on horizontal surface applications, as well as, on incline and decline. This allows for the conveyors to have longer runs or to convey heavier loads while using the same size motor. Center driven conveyor is capable of being reversible.

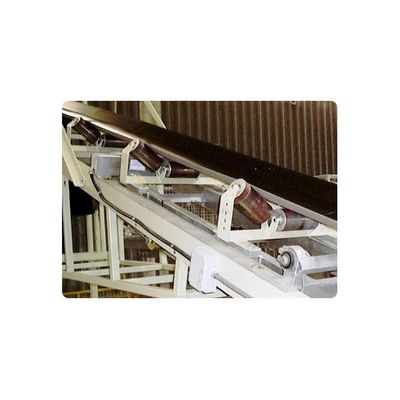

Trough Belt Conveyors are specially designed to leverage the open frame and trough effect of the rubber belt to fully contain the load of materials. Troughed Belt Conveyors are manufactured to convey a high tonnage of material. They are widely used in various industries. Trough Belt Conveyors have become clients’ ideal choice, as to require less maintenance and material can be conveyed up to 28° incline. They are suited best, for transporting municipal waste, water treatment, bio-solids, lime sludge, sludge, grit, or screenings. Neo Conveyors are utilized to transport not only cement, sand, limestone, coal, wood chips, ores, gypsum, fertilizers, chemicals, but, also food products and a wide range of other materials.

The most common and popular elevator is the Centrifugal Discharge bucket Elevator, which may be vertical or inclined. On Centrifugal Elevator, the material can easily be loaded from a boot, a pit, or a pile. The centrifugal Bucket Elevator has the ability to move large amounts of material quickly and works great for durable and abrasive materials like sand, gravel, and other free-flowing bulk materials. For carrying heavy material, nowadays the small and flat steel buckets are replaced by new plastic buckets with rubber belts, due to convenience and ease to use it.
