NESA Srl products

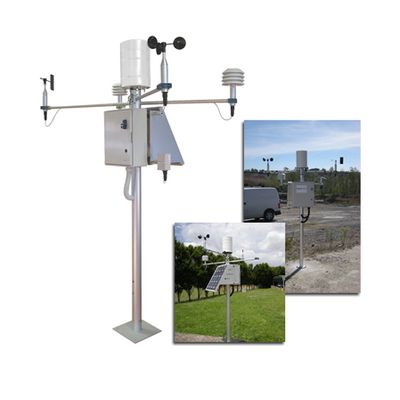

The stations are made in accordance with the WMO (World Meteorological Organization) Annex 8 norms, and are used for forecasting purposes. All equipment and installation are then executed in compliance with International norms.  Support structures (poles) in anodized aluminum anti-corrosion, easy transport to facilitate installation even in the most inaccessible areas, where there are access difficulties.  The low-power consumption allows a long power autonomy even with a small solar panel of 20W. The connection via GPRS, radio, satellite, etc., are used to simple manage data and datalogger, even remotely, via common web browser, without the aid of specific software.

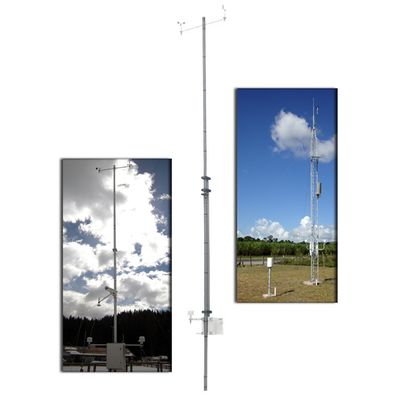

The WMO stations are made in accordance with the international Annex 8 of WMO, and are mainly used for forecasting purposes.
All equipment and installation are then executed to comply with the regulations. Support structures (poles made in anticorrodal anodized aluminum or lattices), allow easy transport to facilitate installation even in the most inaccessible areas, where there are difficulties of access andallow measurements of wind speed and direction at 10m high.  The low-power station, allows along autonomy even with a small solar panel 20W of power.  The connection via GPRS, radio, satellite, etc., are used to manage data with ease and control, even remotely, via common web browser, without the aid of specific software.

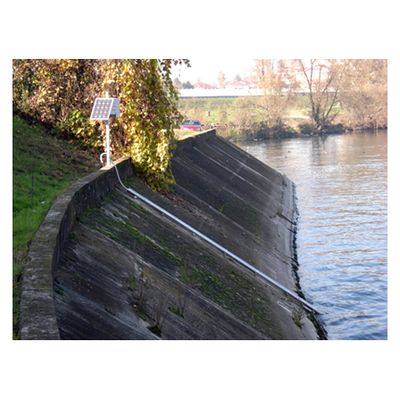

The STM-IDRO stations are made in order to measure and control the water risk: rain, flooding, floods, etc. The support structures (masts), made of anticorrodal anodized aluminium, allow and easy transport and facilitate the installation even in the most impervious areas, where the access is difficult and it is often necessary to use helicopters or transporters The low consumption of the station (

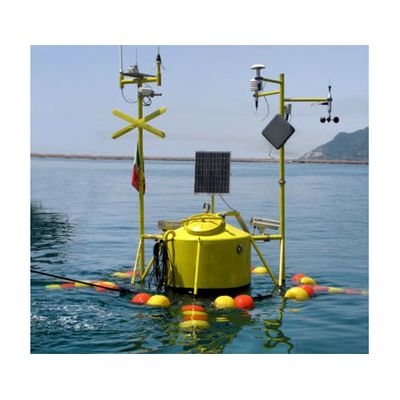

The STM-H2O stations for the marine and oceanographic monitoring, are a typical application of the waters monitoring on buoys, systems installed along the banks, portable systems for sampling on ships, etc. Nesa instrumentation (multiparametric probes, level sensors, etc.), made of anticorrodal aluminium or inert resin, is well suited to these applications where the resistance to corrosive substances is one of fundamental parameters. In additional to the sensors above the water level, multiparametric probes can be installed for the measurement of chemical-physical water parameters (pH, ORP, oxygen, conductivity, etc.). The possible connection via GPRS, radio, satellite, etc. Allow you to manage the data and datalogger very easily even remotely, by using common web browsers, without any proprietary software.

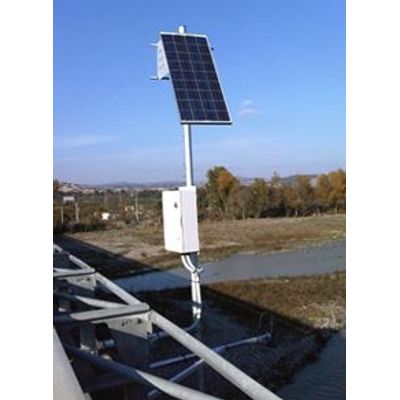

The STM-H₂O stations for the monitoring of rivers, lakes, streams and in general water bodies of freshwater, are a typical application of the superficial waters. Nesa instrumentation (multiparametric probes, level sensors, etc.), made of anticorrodal aluminium or inert resin, is well suited to these applications where the resistance to corrosive substances is one of fundamental parameters. In additional to the sensors out of the water (it is possible to associate one or more meteorological stations ), multiparametric probes can be installed for the measurement of chemical-physical water parameters (pH, ORP, oxygen, conductivity, etc.). The possible connection via GPRS, radio, satellite, etc. Allow you to manage the data and datalogger very easily even remotely, by using common web browsers, without any proprietary software.

evolution represents the natural transition from dataloggers TMF series, which revolutionized over ten years ago the world of data acquisition systems, to a more modern technology, finally bringing to the development and manufacturing of this extraordinary product, which has no competitors in terms of performances and ease of use.

Compact datalogger with a very low consumption (embedded Linuxoperating system, fully programmable via Web, with 8 analogical inputs, 5 digital inputs, 4 analogical outputs 0-2Vdc and 4 outputs for relay control. Two (6) serial ports, 2 USB and LAN port 10/100 Ethernet, completes the equipment.  Allows viewing of web data in graphical and numerical modes. Easy to install and easy to use thanks to the web interface and the system for fixing to DIN rail.  It allows direct interfacing to the ZigBee ZBC wireless module (see accessories) to interface up to 100 wireless sensors. Complete with manual and accessories.

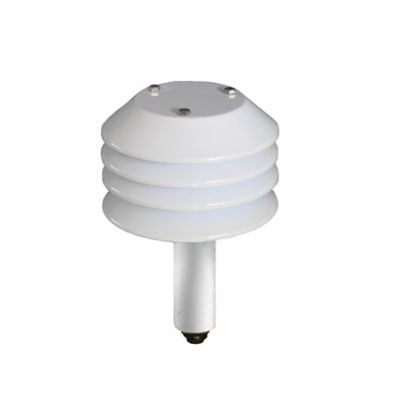

Sensor for the measure of air temperature at high precision and reliable, compact and sturdy, made of aluminum alloy with anodizing treatment for protection against salt and oxidizing agents. Fully compliant to WMO Annex.8 for environmental monitoring applications. Extremely fast response time (4-wire). Available with certification ACCREDIA. The sensor is equipped with electrical protections and is available with different signal outputs and with forced ventilation.

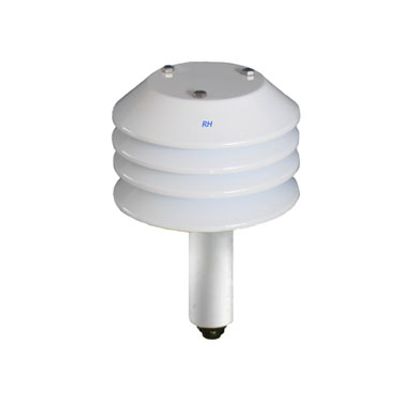

Sensor for measuring air humidity at low consumption (Very fast response(combined version Temperature and Humidity(model UTA)

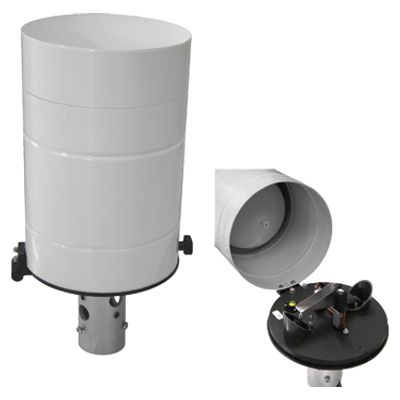

Sensor in A Class, according to UNI11452:2012 for the measurement of precipitation with collection surface of 400cm2, realized in aluminum alloy with anodizing treatment for protection against salt and oxidizing agents. According to WMO norms for environmental monitoring. Measurement system with knife blade support for tilting bucket in stainless steel with a special system to reduce friction, for ensuring high accuracy over the entire measuring range. A particular system of testing and calibration guarantees the functionality of the instrument for long time.
