NeuronSW SE products

NeuronSW - IoT Edge Device

The nEdge 4|21/22 AD is an IoT sound device launched in 2022 by NeuronSW. It integrates sensing, data processing, and networking layers into a single physical unit. The sensing layer connects to sound and other sensors via an ADC, while the data processing leverages complex machine learning algorithms. The network layer acts as an integrational element, ensuring seamless communication. This device records and processes audio along with other input data, which can then be uploaded to the NeuronSW nGuard platform via LAN. On-site integration can be accomplished using SFTP or MQTT. The nEdge's sensors are highly versatile, capable of monitoring both rotating and non-rotating equipment by attaching via glue, magnets, or screws. The sensors measure various parameters, including sound, vibration, temperature, and electric current. With ATEX and CE certification, the device is designed for safe operation in hazardous environments, providing reliable and precise monitoring solutions for diverse industrial applications.

Audio Signals Processing Sensors

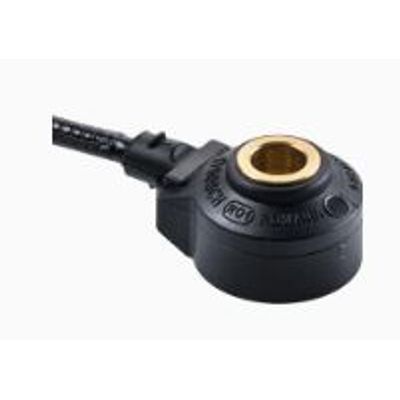

NeuronSW - Piezo-Ceramic Structure-Born Sound Sensors

Very durable piezo-ceramic structure-born sound sensor operating in different environments with temperature −30 °C to 110 °C.

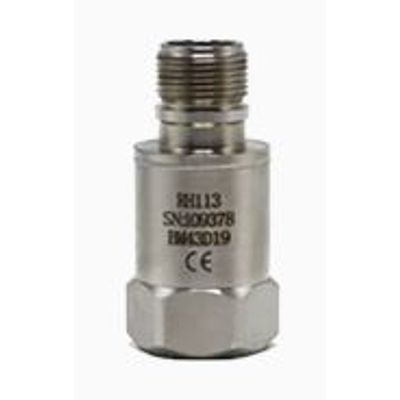

NeuronSW - Industry-Standard Vibro-Diagnostic Sensors

Industry-standard vibro-diagnostic sensor for collection of vibration data.

Multi-Parametric Diagnostics Sensor

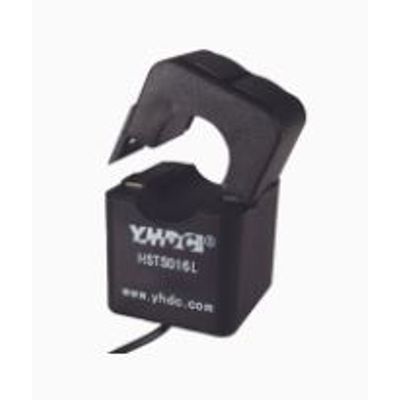

NeuronSW - Current Sensors

Non-contact DC current sensing. High isolation between input and output. Unipolar or Bipolar Measurement. Input range up to 2000A.

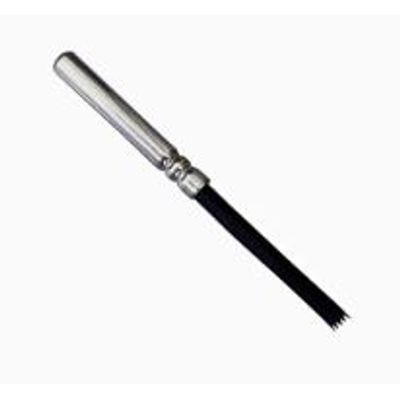

NeuronSW - Temperature Sensors

Temperature sensors are made from NTC thermistors, cast in a metal shell with thermal grease. Large electric resistance corresponding to double insulation requirements. Thermal contact between thermistor and temperature sensor environment.
