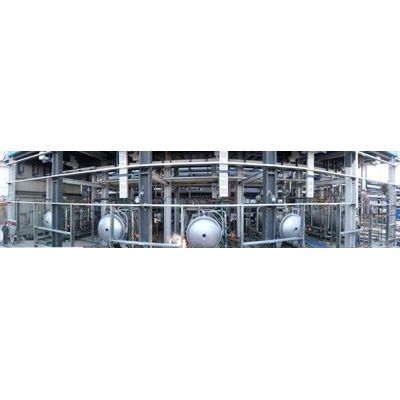

Ozone Generators
Newland - Gas Source Selection Ozone Generators
Ozone Generator system can use air or oxygen as the gas source according to working conditions. Operations must ensure the inlet gas quality has a dew point lower than -60ºC and has no dust oil.
UV Open Channel
Newland Entech - Open Channel Vertical UV Disinfection System
Newland NLQ – K / V Series Open-Channel UV Disinfection System adopts vertical modular design. Each UVC disinfection module consists of a stainless steel frame, several UV lamps, quartz sleeve with high transmittance, automatic cleaning system, power distribution system and data acquisition system. The installation mode for lamp and quartz sleeve is vertical, and lamps are staggered (the section looks like Plum blossom shape). The whole UVC disinfection system consists of several UV disinfection modules.

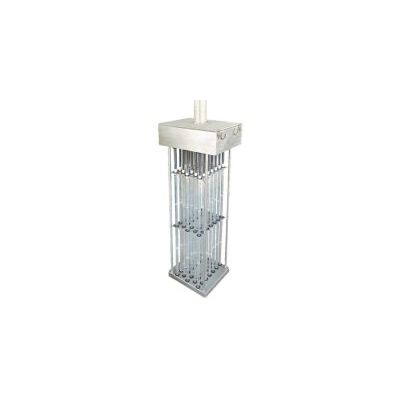

Newland - Vertical Module
Since all underwater materials are made of 316L stainless steel, the lamp socket, power supply socket and a UV lamp wire in the system are all lay in closed module. Then are not exposed to sewage water and UV light.

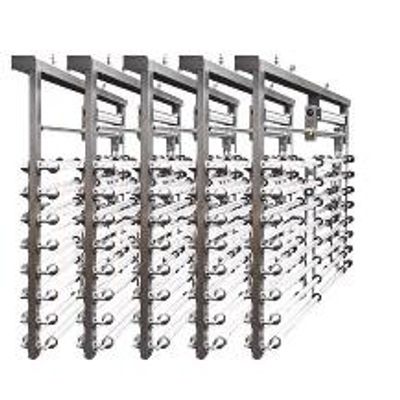

Newland - UV Open Channel Disinfection Module
Modular design is being used by Newland for NLQ open channel water disinfection system. Each module consists of a stainless steel lamp brackets, multiple UV lamps, quartz sleeves with high transmittance, auto-cleaning system, ballasts and data collection system. Thanks to the modular design, the UVC disinfection system is easy for installation and O&M.
Newland Entech - UV Open Channel Module
Another advantage of Newland NLQ series is that the ballast has good stability and heat-emission, with a power factor higher than 0.99.The ballast is controlled by microprocessor and its power could be adjusted from 50% to 100%. The ballast module is being designed according to the consumer’s requirement, has the CE certification, and UL certification is undergoing.

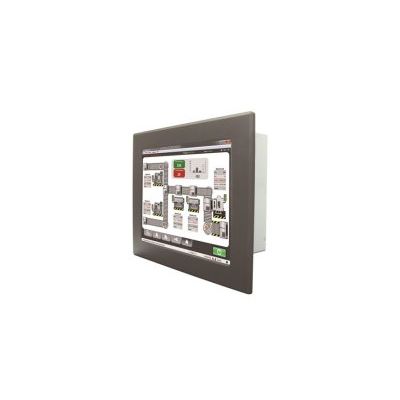

Newland - Auto Control Center
Three-phase equilibrium design is used into Newland NLQ series control system can avoid the unsafe factor caused by imbalance of three-phase. Electronic control system monitors and controls all of the parameters through human-machine interface (HCI), including monitoring UV lamp state, UV intensity, auto-control of lamp intensity, timing, water temperature and UV transmittance; this will facilitate the operator to monitor the operation of the whole UV disinfection system. Newland selects the suitable PLC type and interface according to customer’s requirement. The standard is Siemens product. When any lamp fails, the alarm system would indicate the faults type and positon through sound, light and image.
Newland - UV Sensor
UV sensor is installed in the water, 316L stainless steel is used for outer parts of the sensor. Each module has one UV sensor to collect UV intensity data. UV sensor could also monitor the water transmittance and UVC output for a long time.

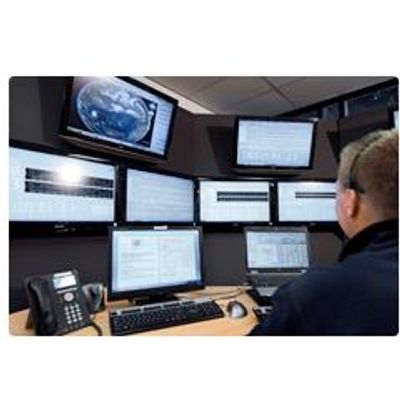

Newland - Remote Monitor Center System
The control center of Newland NLQ series would be put on the desk of technicians in the wastewater treatment plant. It is connected with a computer, using Newland operation manual software. The graphical interface displays the latest information of the UV disinfection and with the “help” menu creates convenience to the users.

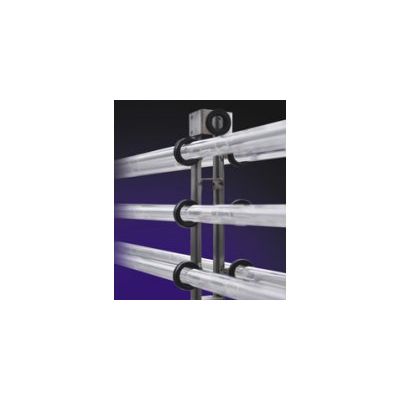

Newland - Automatic Mechanical Cleaning System
The lamp fouling eliminates the UV light intensity. Newland NLQ series introduce self-patented technology to auto-mechanical cleaning and chemical cleaning in any period of time without stopping the system. Newland patented chemical cleaning technology ensures the cleaning of lamps in any wastewater, which improves the disinfection efficiency greatly.
