NIDEC GPM Group products

Future Technologies

Nidec Corporation - EV Traction Motor System

The product that combines the Nidec Group’s technologies to work as an EV’s “heart”. - Nidec leads the world’s vehicle electrification with its compact and light products, component integration capability, and speedy development. E-Axle contributes to freeing up designs, improving running performance, power and energy efficiency, noise reduction, and everything else about EVs.

Products for Cars - Cooling Systems

NIDEC - Switchable Water Pump

The Switchable ECF (Electro hydraulically Controlled Flow) Water Pump is based on a hydraulic control of the internal control unit. This one is working on the on-/off-principle. When the water pump is in the deenergised state ("on"), the coolant flow is unhindered transported from the spiral channel into the engine block of the internal combustion engine.In the energised state ("off") the magnet valve is triggered and this causes that the internal hydraulic circuit is closed. Thereafter it builds up a pressure and the control slide moves mechanically through the impeller. This results in an interruption of the coolant flow rate ("standing water"). The return of the control slide in the deenergised state is saved by a return spring.

NIDEC - Constant Water Pump

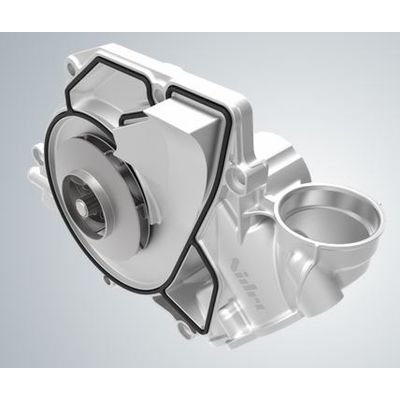

A constant water pump is driven by a belt and is based on the principle of a centrifugal pump. With a rotating impeller the centrifugal force is used for transporting liquids. The coolant, which enters axially into the pump, is forced by the impeller in a circular path to the outside. The stored energy in the fluid increases the pressure in the pump, and pushes the liquid in the spiral and the connected components. The coolant flow rate is directly related to the engine speed.

NIDEC - Switchable Water Pump

The switchable pneumatically switched flow (PSF) – water pump is based on a conventional centrifugal pump. A switch unit is integrated in the pump, connected with the low-pressure system of the vehicle. If the coolant pump is switched on, a slide moves over the vane wheel and interrupts the volume flow. The coolant circulation is stopped, and engine warm-up accelerates. This principle can lead to significant fuel saving.

Products for Cars - Cooling Systems - Variable Water Pump

NIDEC - Fully Variable Water Pump

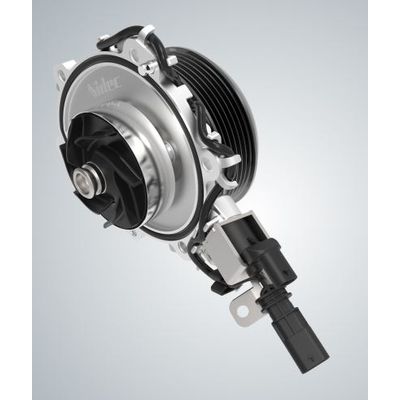

In addition to switching the coolant flow on and off this fully variable ECF (Electro hydraulically Controlled Flow) - water pump can regulate the flow rate in between with a modulated hydraulic pressure generated by an electrically initiated and pulsing solenoid valve. For completing the control loop NGPM uses a constant feedback of the control slider’s position by magnet and sensor. This concept supports NGPMs main goal to reduce the CO2-emissons due to a coolant flow perfectly adjusted to the engine’s demand.

Products for Cars - Cooling Systems - Electric Water Pumps (> 300 W)

NIDEC - Electric Water Pump

We are addressing the demand for variable oil pumps, which is becoming increasingly stronger, with our own solutions in the shape of volume-flow and pressure-variable oil pumps. Through integration into the engine management system, only as much lubricating pressure / volume flow is generated as the engine requires. GPM offers several types of vane pumps – in a directly or indirectly controlled design. Partial oil pressure load reduction can be achieved through additional valves.

NIDEC - Controlled Flow Electric Water Pumps

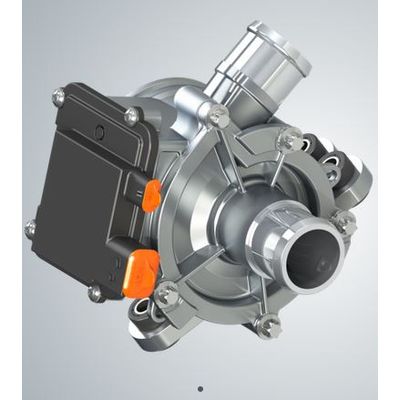

Controlled flow Electric Water Pumps provide coolant flow value based on external command via LIN, CAN or PWM. The NEW P950 in particular is designed for 48V applications and delivers exemplary results by using the best components of mechanical water pumps in combination with electric motors, which convince with a high power density.

Products for Cars - Cooling Systems - Medium Auxiliary Water Pump (80-300 W)

NIDEC - Medium Auxiliary Water Pump

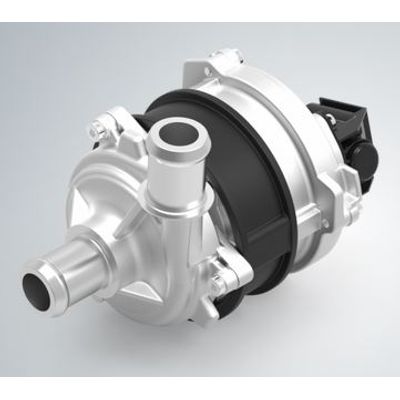

The dry runner concept combines broad experience in mechanical pumps with existing motor platform. Electric water pumps used in auxiliary heating systems enable energy efficient temperature management depending on engine load. Wide power and performance range. Used in electric vehicles for battery cooling and for temperature control of power units. Easy interface to pump via LIN, CAN or PWM.

Products for Cars - Cooling Systems - Small Auxiliary Water Pump (30-80 W)

NIDEC - Small Auxiliary Water Pump

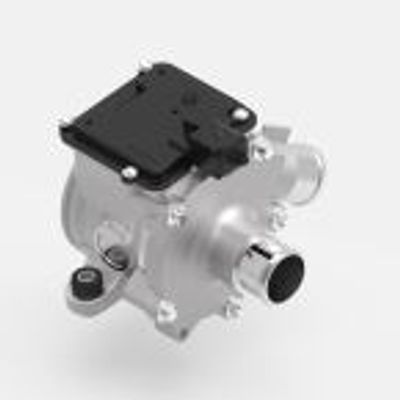

The dry runner concept combines broad experience in mechanical pumps with existing motor platform. Electrical water pumps used in auxiliary heating systems enable energy efficient temperature management depending on engine load. Wide power and performance range. Used in electric vehicles for battery cooling and for temperature control of power units. Easy interface to pump via LIN, CAN or PWM.

Truck Products - Cooling Systems - Mechanical Water Pump

NIDEC - Constant Water Pump for Trucks

The belt-driven constant coolant pump works on the principle of a rotary pump. By means of a rotating impeller, centrifugal force is used to transport liquids. The coolant, which enters the centrifugal pump axially, is forced outwards by the impeller on a circular path. The energy stored in the liquid increases the pressure in the pump and pushes the liquid in the volute and the connected components. The coolant flow rate is directly related to engine speed.
