Noiseken products
EMC Tester - Electrostatic Discharge Simulator (ESS series)
Model ESS-B3011A & GT-30RA - ESD Simulator
Cost-oriented Basic model: Cost-oriented basic model ESD Simulator equipped with the light weight discharge gun. The output voltage can be selected up to max. 30 kV and compliant to both EN / IEC 61000-4-2 Standard and ISO 10605 Standard.
EMC Tester - Impulse Noise Simulator (INS Series)
Model INS-S220 / S420 - Impulse Noise Simulator
To solve the real trouble in the market. This Noise simulator simulates high frequency noises generated by ON/OFF switching at contact points of switches or relays, and arcs caused by electric motor, allowing to evaluate the resistibility of electric devices. The Pulse contains wide range of frequency components and energy volume is changeable by adjusting pulse width. This allows conducting of highly-reproducible noise tests for noise troubles in the market.
RF Products
Model NKU07M32G/NKU2460G - Broadband Sleeve Antenna
Broadband sleeve antenna has been developed for efficient immunity testing against hand-held transmitters and cellular phones. In the conventional strong electromagnetic field immunity test in the near field, it was necessary to replace the antenna according to each frequency, which required a lot of labor and time. This new Broadband sleeve antenna is a single antenna solution eliminating the need for antenna changes and dramatically reducing the test time. Furthermore, this antenna with its small-size and lightweight properties and a flexible handle is suitable for testing in narrow spaces.

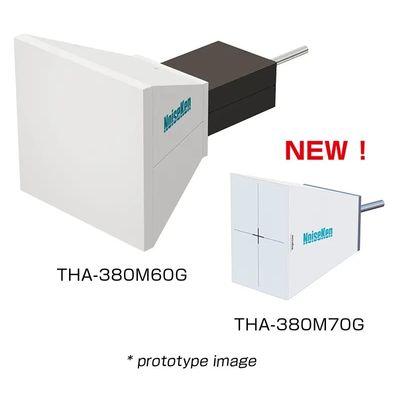

Model THA-380M60G / THA-380M70G - TEM Horn Antenna
EMC Testing in the 5G/IoT Era! The TEM horn antenna is an antenna for conducting a close proximity radiation immunity evaluation test (near electromagnetic field immunity test) of electromagnetic waves radiated from various wireless transmitters such as mobile phones and Wi-Fi equipment. In the future, the close proximity radiation immunity evaluation test using the TEM horn antenna is expected to expand to various product standards such as medical equipment (IEC 60601-1-2) and multimedia equipment (CISPR 35). NoiseKen`s TEM horn antenna has a wide band, low VSWR, and wide electric field uniformity, offering an ideal solution for an efficient close proximity radiation immunity test. *This product is based on research results of the National Institute of Information and Communications Technology (NICT), Japan and joint-research with Noise Laboratory Co., Ltd.
