Non-Destructive Testing (NDT) Products Limited products

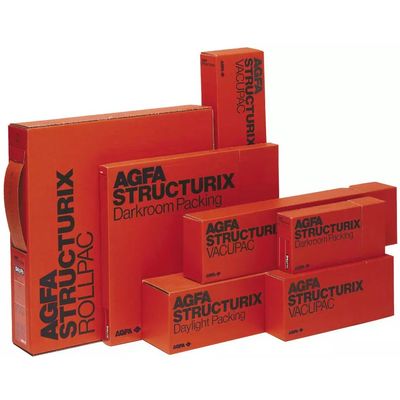

Our film systems are fully compliant with standards issued by the independent German Federal Institute for Materials Research and Testing, BAM. This designation proves STRUCTURIX capability to not only produce consistently but also to invest in quality systems which control and measure system parameters. This assures compliance with the Industrial Film Systems Classification Standards.

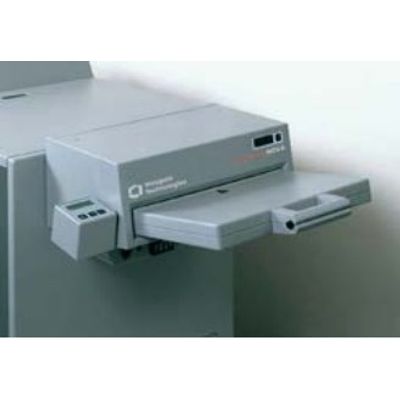

Depending on the place, situation and application, processing of the industrial X-rays films are carried out manually or automatically. Complete solutions are available to choose the best way of processing your films in combination with STRUCTURIX chemicals and equipment, all perfectly suited to one another. Waygate Technologies, formerly known as GE Inspection Technologies, provides a complete range of STRUCTURIX processors, from a versatile tabletop model to a highly sophisticated one and from low to high capacity – all designed to ensure high-quality results.

Versatile materials analyzer: Testing a vast range of materials – solids, powders or liquids – the X-MET8000 is ideal for analyzing metals, soils, wood, plastics, glass, oils and more. The analysis is non destructive and leaves no test mark.

The FM EXPERT is the next level optical emission spectrometer, combining superior analytical performance with a compact size. Its large wavelength range is ideal for the analysis of all relevant elements in metals quality assurance and production process control. The FM EXPERT also allows for the analysis of nitrogen at low levels thanks to its compact CCD optics system. The FM EXPERT combines our patented smart optics with an improved plasma view, guaranteeing excellent analytical performance with low detection limits over the entire wavelength range. The argon purged optics reduce maintenance intervals and the costs of ownership. Unique in its class, the FM EXPERT’s sealed argon system for optimized optical plasma view and the concentric electrode shielding argon flow ensure reliable nitrogen analysis down to a detection limit of just 30 ppm.

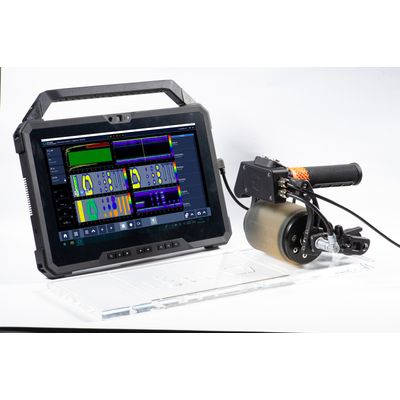

Unique and ultra-portable phased array ultrasonic roller probe for your composite inspection needs. Krautkrämer RotoArray comPAct is Waygate Technologies’ first instrument powered by our new technology comPAct. As an industry first it combines the performance of a complete phased array inspection system in a single probe thanks to miniaturized instrument electronics. With Krautkrämer RotoArray?comPAct your PA inspection workflow needs less equipment and becomes more flexible. RotoArray comPAct ensures reliable and convenient flaw detection with maximum portability, minimum weight and excellent connectivity for time- and cost-efficient manual phased array inspections.
