Nordfab Ducting - a Nederman company products

Nordfab Quick-Fit® Clips allow quick and easy connection during installation as well as subsequent removal and re-use of QF® components. The internal gasket guarantees a tight joint. Clips come from the factory with Nitrile seals.

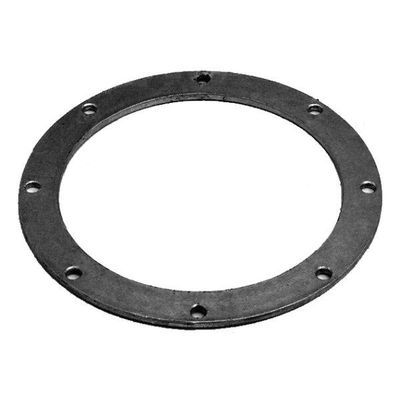

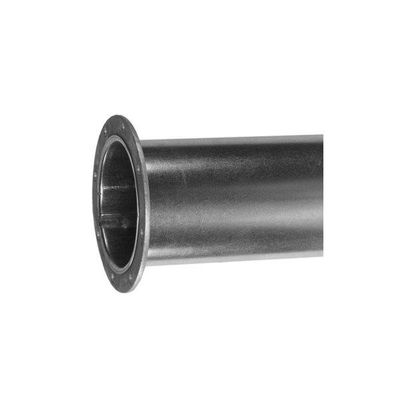

QF clipped and FL flanged ducting offers a complete range of diameters and accessories for easy-to-fix professional installations. FL flanged ducting is supplied with preassembled and drilled loose flanges for ease of alignment during installation. Duct L Galv 0.9mm 600FLN L=1.5m

The FB Duct System is used in dust collection / process ventilation systems in a wide variety of industries.

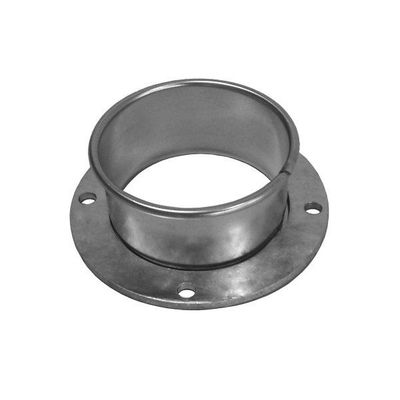

Adapter allows quick connection of QF duct to a flanged connector. ORDER EXAMPLE: Adapter Flange Galv 0.9mm 500QF 500FLN

Manually regulate airflow in dust collection ducting. Galvanised steel or 304SS construction. ORDER EXAMPLE: Damper Regulating Galv 0,7mm 100QF.

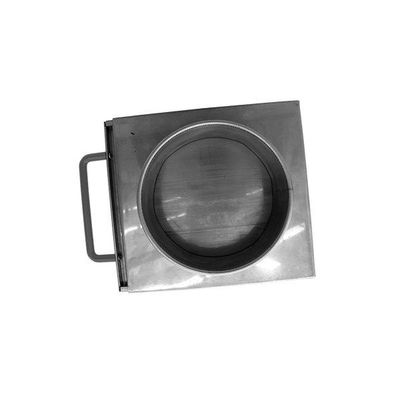

The NFMES type energy saving damper is a manually operated blast gate or sliding damper. ORDER EXAMPLE: Damper Energy S Man Galv 315QF.

Designed for quick changes between two streams and ideal for conveying dust particulate, our diverters meet EU’s machinery directive (98/37/EC) and as standard are manufactured in 2 and 3 mm painted mild steel.

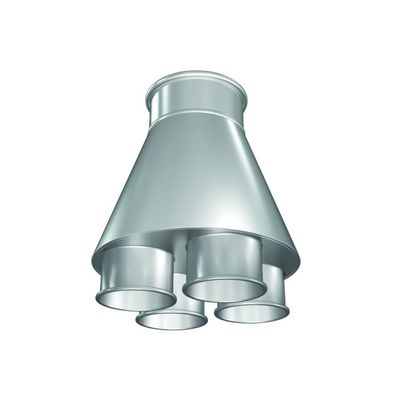

No. of connections (X is from 2 to 8) and shape (round or rectangular) must be specified. Ø2 edge type must be specified (example: hose connection. Available in diameters 100 - 710. Hood Suction Galv 160QF (add all other diameters and end types ex. 4 X 100 Ø2 200 ØA).

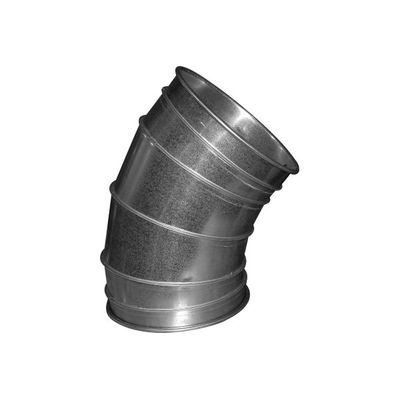

Duct Bends allow airflow direction change in a run of duct. Standard QF® Segmented Bends are also available in 90°, 60°, 30° and 15° with Quick-Fit rolled ends. Nordfab Quick-Fit® is a modular system of ductwork that allows easy installation into process ventilation / dust collection systems.

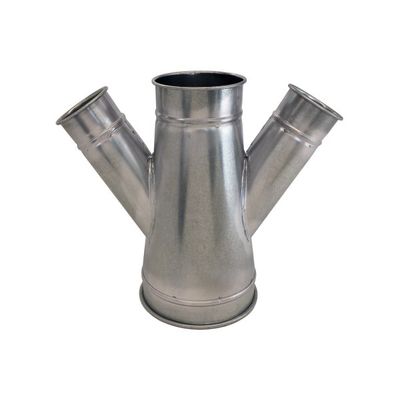

QF Double Branches, used in dust collection systems, are ductwork used to port to machine outlets or other duct lines. Standard Double Branches are 30º, Optional 45º. When ordering specify ØA, ØB, ØC, ØD.
