Norma-UA LLC products

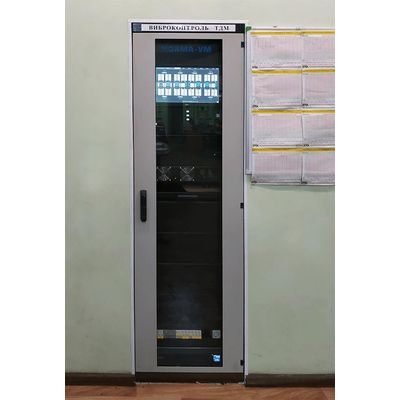

The stationary system for monitoring the parameters of vibration, mechanical quantities and/or other technological parameters of machinery. Systems are manufactured in accordance with the standards ISO10816-1-97, ISO10817-1-2002 and API Standard 670, oriented to European requirements for ergonomics and aesthetics.

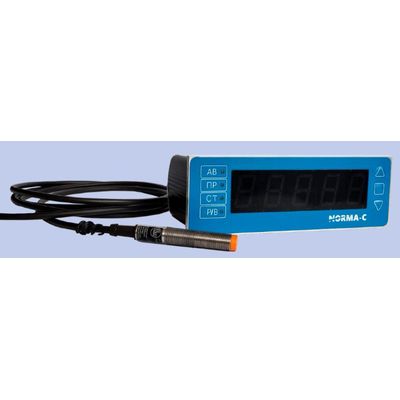

The monitoring system of rotational speed of the turbine with built-in hour meter. The composition of the tachometer system includes a tachometer unit NCB 0412, block remote indication NCB 0052 (panel mounting) / 0051 (installation on the unit) and inductive sensor IF5646 ("IFM" Germany). To make settings, and view the archived data used the software package NORMA-RS SW 1.0.

The sensor detects on the support bearing unit of the vertical, transverse or axial component of vibration and generates a corresponding electrical signal proportional to the acceleration, to the control module.

General purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.

General purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments.

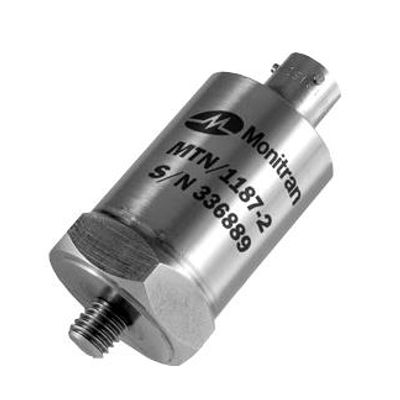

Dual purpose, top-entry, accelerometer with 100mV/g AC and 4-20mA DC outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Sealed to IP67 and includes 62GB 3-pin connector ( MTN 1186) or integral stainless overbraided ETFE cable (MTN 1186 ? ). Available with a wide range of mountings.

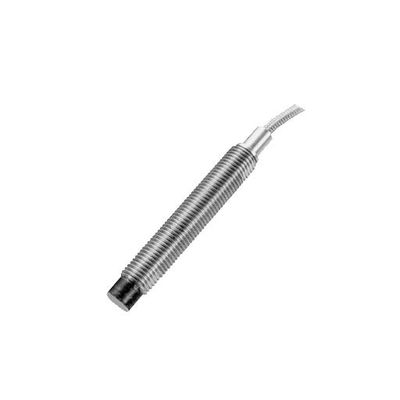

The most common probe for high speed pumps with plain metal bearings able to measure small vibration levels and gaps up to 2mm. Probe Diameter 5mm.Body Length 37mm. Thread M8. Supplied with Eddy Current Probe Driver MTN/ECPD.

Used to measure coarser vibrations. Operating Gap 0 – 5mm. Probe Diameter 13mm.Body Length 62mm. Thread M16. Supplied with Eddy Current Probe Driver MTN/ECPD
