Northwest Tech-Con Systems Ltd. (NWTC) products

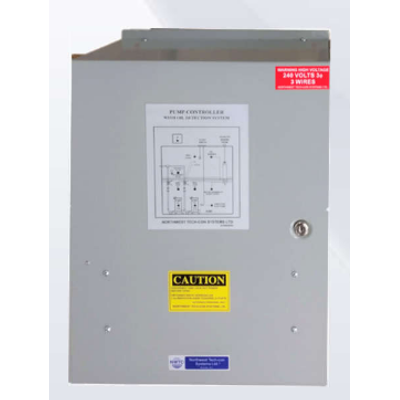

Northwest Tech-Con System's model SCP / DCP panels are of the highest quality pump controllers, built for pump up/pump down residential and commercial sump and sewage applications. A low voltage module controls starting, stopping and alternation of pumps. For DCPs, a single pump handles normal flow with the second pump handling heavy flow. A built in high level alarm sounds when water reaches a user specified high level.

Northwest Tech-Con System’s model TCP panels are of the highest quality pump controllers, built for controlling rain or waste water level control for commercial applications or high density residential buildings such as apartments. In case of a pump failure, the panel will intelligently switch to operating the remaining pumps and will sound an alarm indication. Our products can be customized to your specifications to feature options such as a maximum pump run time alarm, which indicates the user of a pump exceeding a run time of one hour.

Northwest Tech-Con System`s model SPBP-120 and SPBP-240 provides a low noise and pollution-free alternative to costly backup generator systems. The SPBP system operates on either 1 or 2 battery banks to convert 12VDC to 120VAC to supply power during power loss.

Northwest Tech-Con System`s model B-SCP | B-DCP | B-TCP constant pressure controllers are designed to maintain constant pressure for water distribution systems. With two pressure transducers placed at the suction and discharge of the pump, each pump can be individually controlled to produce the optimal amount of pressure for the systems. The pressure accepts user input within safety guidelines and is password protected to prevent any unwanted tampering. Optional interface and notification options are available to inform the user when a problem has occurred.

Northwest Tech-Con System's model O-SCP & O-DCP systems are designed for the safe operation of elevator sump pits, transformer vaults and boiler rooms to prevent oil from contaminating groundwater. Units will automatically shut down once oil has been detected in the sump with an alarm sounding to alert the user. Our oil detection panels ensure that environmental damage caused by oil leakage are prevented, saving the user the burden and cost of dealing with contaminated soil.

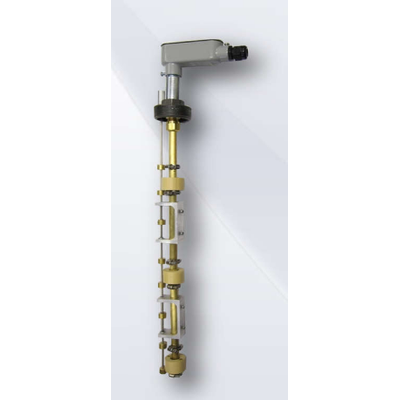

NTS Series Probes utilize magnetic floats to vertically actuate hermetically sealed reed switches within the unit steam. A low current relay interface can be used for high current application such low or high level alarms, tank filling systems and tank leakage detection. Probes can be arranged in a variety of ways, spanning single to multi-zone applications.
