Nuova Fima SpA products

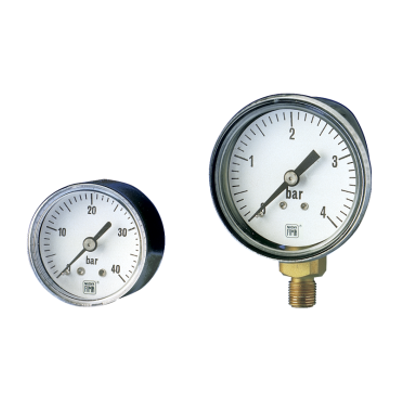

They can be used with gaseous or liquid media which do not corrode copper alloy and which do not have high viscosity or do not cristalize. Bourdon tube pressure gauges standard execution DS 1.5”, 2” (40-50mm).

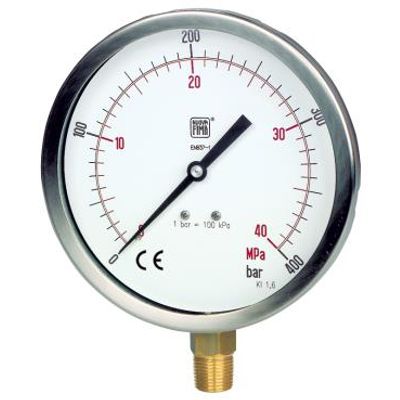

They can be used with gaseous or liquid media which do not corrode copper alloy and which do not have high viscosity or do not cristalize. Bourdon tube pressure gauges DS 6” (150mm).

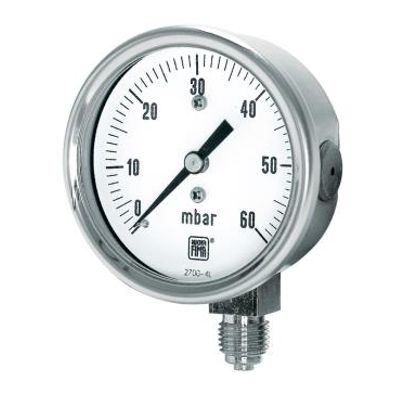

Capsule pressure gauges DS 2.5” (63mm). For measurement of low pressure and vacuum, for use on gas and dry air.

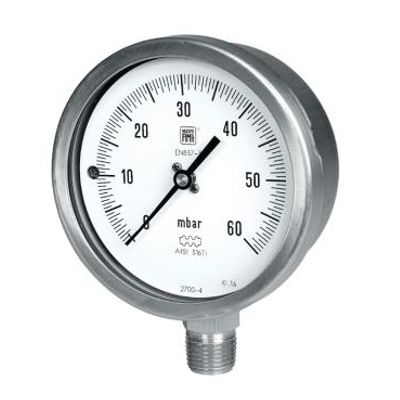

Capsule pressure gauges DS 4” (100mm). For measurement of low pressure and vacuum within the range -600…0 to 0…600 mbar, for use on gas and dry air.

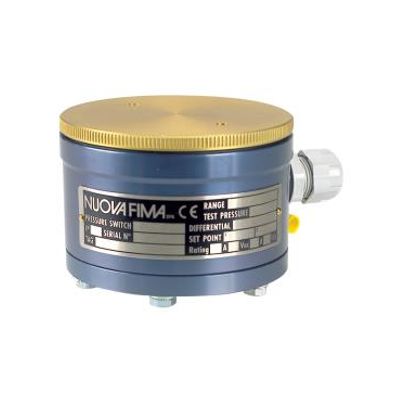

These diaphragm pressure switches are IP 55, and only suitable for applications in the chemical, petrochemical and conventional power plants. The sensing element is a metallic diaphragm and acts directly on the microswitch through a self-centering pivot. The simplicity of the design, without levers, cams or similar mechanism, gives the unit an exceptionally long working life.

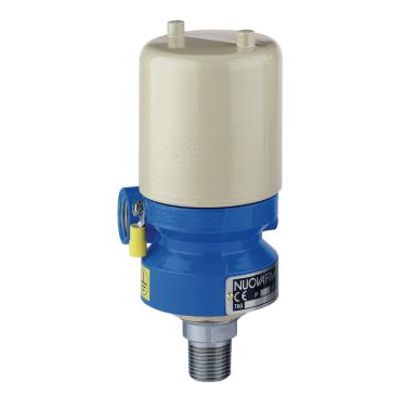

These diaphragm pressure switches are IP 55, and suitable for a variety of applications such as: chemical, petrochemical and conventional power station. They withstand the most unfavourable working conditions, caused by either the process fluid aggrassiveness or high ambient temperature.

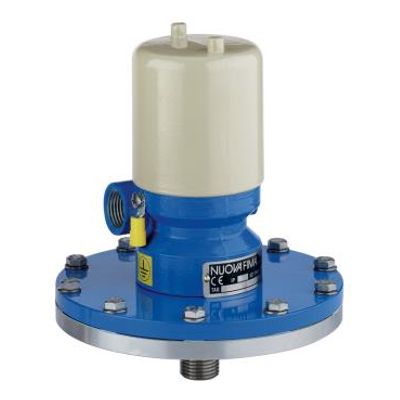

These diaphragm pressure switches are IP 55, and suitable for a variety of applications such as: chimical, petrochemical and conventional power station. They withstand the most unfavourable working conditions, caused by either the process fluid aggressiveness or high ambient temperature.

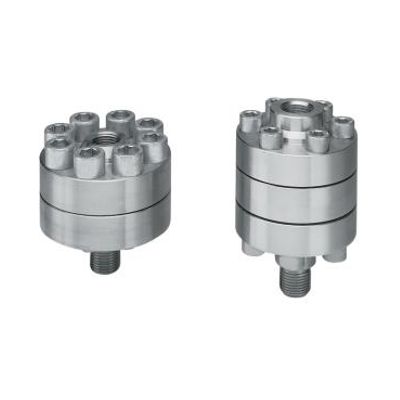

Diaphragm seals are designed to isolate the sensing element of pressure gauges, pressure switches and electronic pressure transmitter from process fluids which may be corrosive, viscous, sedimentous and/or with a high temperature. The diaphragm, welded for model 1B0 and mechanically clamped between the upper housing and intermediate ring for model 1BS , is leak proof tested to guarantee fill fluid separation from process fluid. This diaphragm seal can be cleaned by removing the lower housing. This construction feature and its compact design suits to many applications requiring frequent maintenance.

Diaphragm seals are designed to isolate the sensing element of pressure gauges, pressure switches and electronic pressure transmitter from process fluids which may be corrosive, viscous, sedimentous and/or with a high temperature. The diaphragm is mechanically clamped between the upper housing and intermediate ring and is leak proof tested to guarantee fill fluid separation from process fluid. Model MGS9/1A0 is cleaned by removing the lower housing from the intermediate ring. Both models are without sealing gaskets. This construction feature and its compact design suits many application that require frequent maintenance, for model MGS9/1A0.

Diaphragm seals are designed to isolate the sensing element of pressure gauges, pressure switches and electronic pressure transmitter from process fluids which may be corrosive, viscous, sedimentous and/or with a high temperature. The diaphragm is welded to the top housing and leak proof tested, to guarantee a separation between process fluid and fill transmission fluid. The upper part is detachable from the lower process side for cleaning. This construction feature and its compact design suits many application that require frequent maintenance.
