Nuove Energie s.r.l. products
Machines

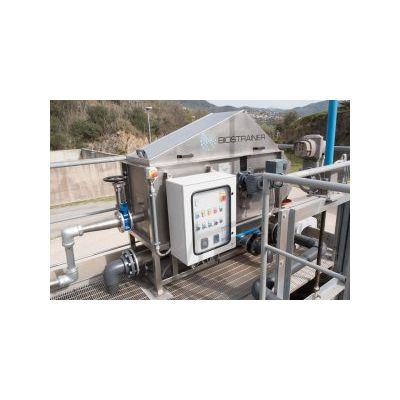

Biostrainer - Separator-Thickener
Biostrainer is the Separator-Thickener that ensures long-term functionality and reliability of the MBR ultrafiltration systems. Thanks to the Dynamic Tangential Filtration, it definitively solves the problem of fibrous and filamentous materials present in the biological sludge. Installed as a biological sludge recirculating system, it allows a remarkable reduction of the MBR maintenance interventions. Anything that traditional filters with perforated plates, wedge wires or static filtering meshes can’t do…Biostrainer will do!
Conoscreen - Micro Filter
Conoscreen is a worldwide patented microfilter, perfect for the maximum fibrous material recovery and the consequent reuse of the filtered waters. One of its main features is ensured by the Dynamic-Tangential Filtration: an advanced technology which is able to hold the particles that other machines would let through.

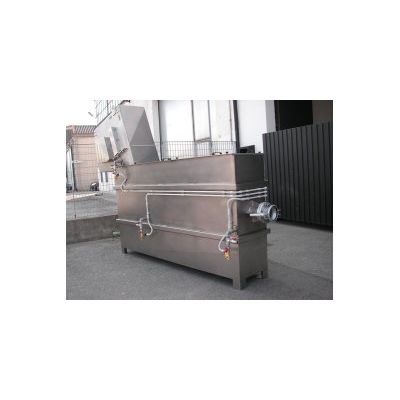

Septinguard - Self Cleaning Screening Plant
Septinguard is the self-cleaning screening plant which separates the coarse solids from the tanker waters and it is supported by the best technology possible. Septinguard is a totally hermetic and automatic sewage treatment machine, composed of a special stainless steel tank combined with a self-cleaning Vanguard V2 belt screen with a 6 mm spacing between each filtering element.
Vanguard - Self Cleaning Belt Screen
Vanguard® is the self-cleaning belt-screen ideal to separate the coarse solids from the industrial or civil wastewaters. Designed under the sign of perfection, Vanguard® has been developed for the in-channel installation and to hold the coarse solids from offtakes water or water from civil and industrial treatment plant sewage systems.
Complementary Machines

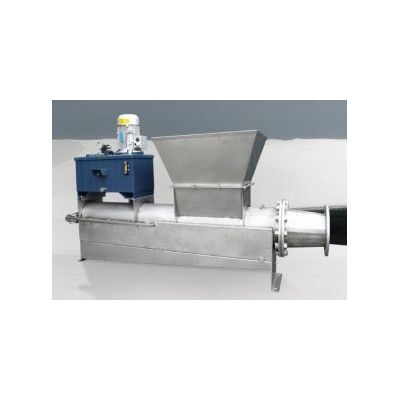

Model CP - Piston Press
The CP Piston Press is a machine that dries and compacts screening plants material or industrial waste. The material that has to be compacted falls into the compactor directly from the screen hopper or from a conveyor belt, then a steel hydraulic piston pushes the material inside the convey pipe, compacting and draining it. The CP Piston Press is mostly a combination of technology and saving: indeed the combined stage of drainage and compaction reduces the screened material transportation and disposal costs up to 75%.

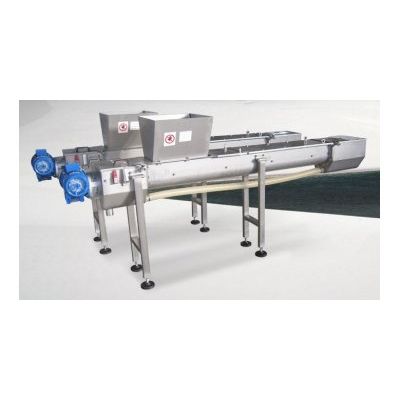

Model CSA - Screw Conveyor

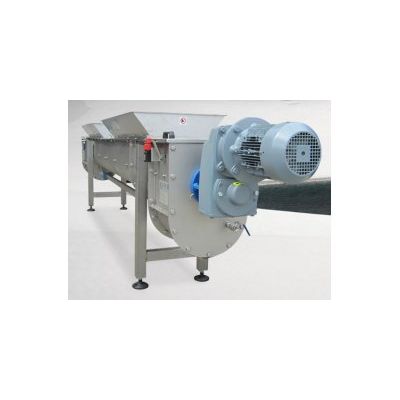

Model CPS - Screw Compactor
The CPS Screw Compactor without shaft is the compactor that can halve the screened material. The machine can be inclined up to 30° and is composed of a drainage section, a “U” trough and a compaction module. The drainage section is usually located underneath, or right before the feeding hopper and the material is conveyed through the trough to the compaction module. A technologically perfect process that leads to real savings: to reduce the material volume means lower transportation and disposal costs.

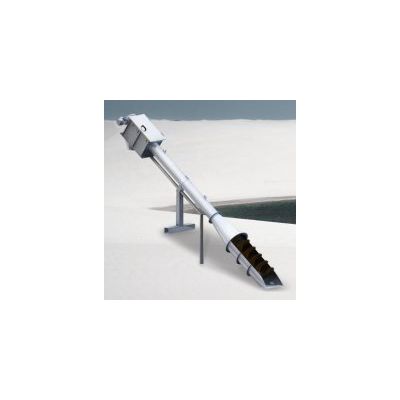

Model FK - Screening Screw
The FK Screening Screw is a screening system for the separation of the coarse solids from the wastewater and it is available in two different varieties: with or without compactor. The FK Screening Screw, in its two versions, is the ideal machine when it is necessary to separate or compact the solids of municipal or various industrial wastewater. The efficiency of a working process depends inevitably on the efficiency of every single component, and in this machine every construction detail is designed to ensure the best: from loading basket made of a perforated metal sheet or of Johnson mesh, to the convey tubular section with variable lenght, from the feeding section with compactor to the engine.
