NuPlanet Sustainable Solutions products
Grease Management - Big Dipper

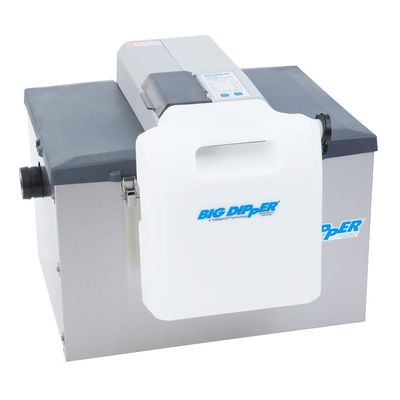

NuPlanet - Big Dipper Grease Trap
The Big Dipper W-200-IS Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 20 GPM (1.26 l/s) flow while holding more than 47 lbs. (21.4 kg) of grease. The center module which comes with digital time control, heater assembly, and mechanized skimming assembly, automatically isolates trapped grease into grease collector for easy disposal.
NuPlanet - Model W250 - Big Dipper Grease Trap
The Big Dipper W-250-IS Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 25 GPM (1.58 l/s) flow while holding more than 56.4 lbs. (25.6 kg) of grease. The centre module which comes with digital time control, heater assembly, and mechanized skimming assembly, automatically isolates trapped grease into grease collector for easy disposal.
NuPlanet - Model W500 - Big Dipper Grease Trap
The Big Dipper W-500-IS Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 50 GPM (3.15 l/s) flow while holding more than 108.4 Pounds (49.2 Kg) of grease. The centre module which comes with digital time control, heater assembly, and mechanized skimming assembly, automatically isolates trapped grease into grease collector for easy disposal.
NuPlanet - Model LD-200 - Big Dipper Passive
Big Dipper Passive Model No. LD-200, bright finish type 304 stainless steel exterior, rotationally moulded polyethene interior passive hydromechanical grease interceptor(s) for floor mounted or partially recessed installation, rated by ASME A112.14.3 standard at 20 gallons per minute (1.26 l/s) peak flow to separate and retain 98.1% of grease, totalling 47.1 pounds (21.4 Kg) of grease capacity and including as an integral part of the unit, 2″ (50mm) Inlet/Outlet connections, an integral flow control device, an integral gas trap, quick release stainless steel lid clamps, 1” NPT vessel vent connection, and a gasketed and fully removable 304 stainless steel lid. Two (2) no-hub connectors for plumbing connection provided.
Grease Management
NuPlanet - Model Trapzilla - Super Capacity Grease Interceptor
The world’s most efficient grease interceptors. The Trapzilla Super Capacity Grease Trap collects free-floating Fats, Oils and Grease (FOG) contained in kitchen drain water flows. As most food service facility managers already know, FOG build-up inside a building’s grease containment system is a major cause of problems.
Tank Level Monitoring
NuPlanet - Remote Tank Level Monitoring
The OKO Pressure Sensor unit is a system that allows you to monitor multiple tanks remotely. This is particularly useful for fuel management, ad blue, and other companies with a network of tanks as it significantly increases efficiency in distribution. The OKO Pressure Sensor is connected to an online portal that allows users to manage their stock in real-time.
NuPlanet - Ultrasonic Tank Level Sensor
The GSM 2G Ultrasonic Tank Level Sensor is an entry level tank level monitoring system with an integrated GSM modem. Unlike our OKO remote tank level Monitoring system ***link to OKO remote tank level monitoring page*** which uses a floating system to trigger alerts, the Ultrasonic Tank Level Sensor uses ultrasonic to measure the liquid level in the tank.
NuPlanet - Model SFS - Tank Bund Alarm
The SFS Tank Bund Alarm is an entry-level, battery operated bunded fuel tank alarm. It is designed to alert of the presence of any liquid between the inner tank and its outer bund. This is a highly-efficient way of monitoring your tanks. It indicates whether the inner tank has ruptured and prevents safety and environmental hazards which may occur if no action is taken.
Others

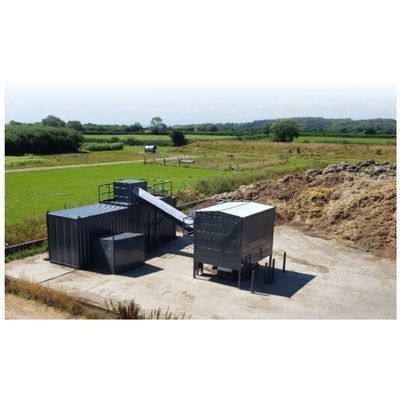

NuPlanet - Bio Digesters
The Bio Digester range turns food waste into a nutrient-rich soil enhancer in a 24-hour period. Minimum of 75% reduction in food waste mass. Drastic reduction in bin charges. Reduce emissions associated with bin trucks. Odourless processing of food waste. Clean, spacious, pest-free yards.
NuPlanet - Air Kitchen Ventilation
Over 10% of the world’s electricity is used for ventilation. As a result, there is a big move to “ecology” Units. these Ecology Units are more energy efficient. NuPlanet Sustainable Solutions presents our Ecokitchen, our innovative kitchen ventilation system. Drastically improve your kitchen air quality, decrease your service charges, minimise installation costs and generate up to 30% energy savings.
