Nuvia Dynamics Inc products

A real-time data acquisition and navigation system designed for airborne (fixed wing and helicopter) geophysical exploration, environmental science, and monitoring application. IMPAC is integrated in a single rack-mountable enclosure that meets aviation requirements. The IMPAC follows Pico Envirotec’s modular design structure producing highly flexible and easily reconfigurable instrument for Airborne surveys. Wide variety of proprietary “intelligent” instruments and third party sensors and instruments (E.g. magnetometer sensors, radiation detectors, airborne gravity-meter) can be quickly and easily interfaced.

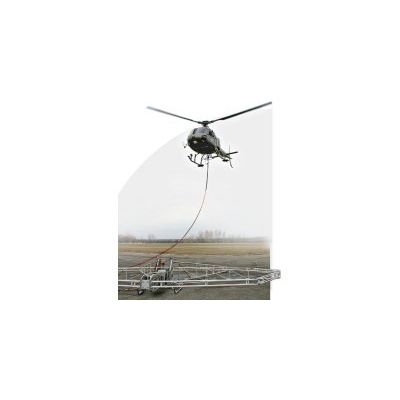

P-THEM is a versatile state-of-the-art time-domain helicopter-borne electro-magnetic button-on system. Weighing less than 300 kg, it features a powerful transmitter, an upgraded state of the art PC-based receiver and an advanced digi-tal signal processing software package. It is adaptable, well suited for shallow soil mapping, ground water and/or ore-body exploration.

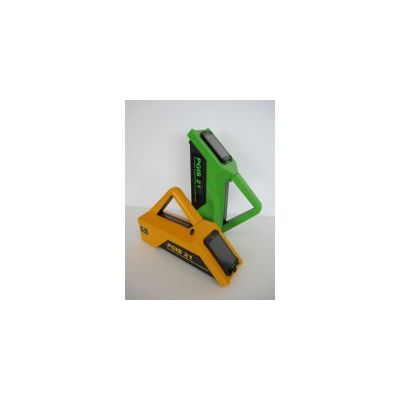

The instrument is designed for portable and mobile spectrometry surveys  in a variety of environments. The PGIS-2 is based on advanced microprocessor and mobile technologies,  consists of a detector unit, integrated with GPS, and a data logger unit (PEICore)  based on state-of-the-art portable devices, such as a smart-phone, a tablet or a notebook. The PGIS-2 embedded AGRS advanced gamma-ray spectrometer is widely used in geological and geophysical exploration and mapping, as well as in environmental and nuclear surveillance.

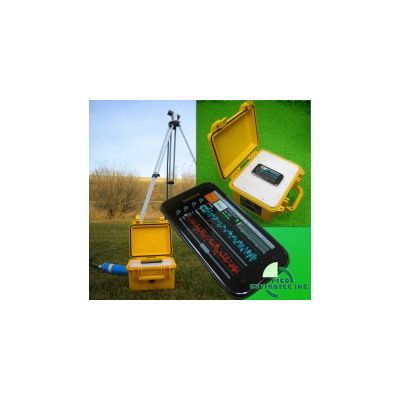

The PBM is a compact Magnetic Variations Base station based on the state-of-the-art mobile technologies. The system comprises an intelligent high sensitivity and high resolution magnetometer board, a non-magnetic tripod mount, a data logger unit, and can be equipped with up to two Cesium magnetometer sensors. The newly developed data acquisitions/interface system allows the user to control the acquisition of Magnetic data in a real time mode. The acquired data is automatically synchronized with GPS time and position. The main advantage of the PBM measuring system is its compact size, robustness and simplicity of use.

The Advanced Gamma-Ray Spectrometer (AGRS) is an intelligent, self-calibrating gamma-ray spectrometer using large volume NaI(TI) detector arrays. The unit is available in 3 standard configurations: AGRS-2: comprises 2x4Liter NaI(Tl) scintillation crystals oriented downwards, and required electronics; AGRS-4: comprises 4x4Liter NaI(Tl) scintillation crystals oriented downwards, and required electronics; AGRS-5: comprises 4x4Liter NaI(Tl) scintillation crystals oriented downwards, 1x4Liter NaI(Tl) crystal oriented upwards (cosmic/radon detection), and required electronics; Multiple units can be chained together for larger effective detector volume and detection surface. The AGRS unit can be easily installed in the aircraft and function independent or can be integrated with PEI’s data acquisition and navigation unit – IMPAC.

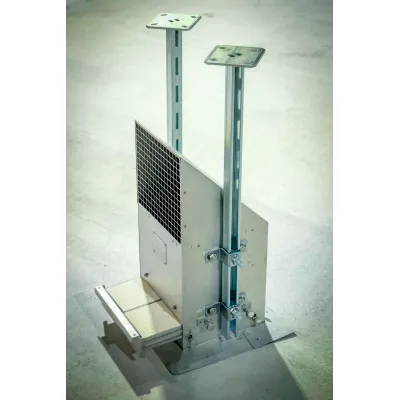

NuRAPh2 is a passive autocatalytic recombiner that secures the intergrity of installations against hydrogen risks. It can be customised to meet  protection needs and adapts to the environmental constraints of the premises to be protected. It contains catalytic substrates with a «honeycombe» structure that allows hydrogen to be recombined as low as 0,5% of hydrogen concentration, even under extreme humidity conditions.
