Oktagon Engineering GmbH products

4 wheelie steel waste bins of 1100 lt (with flat cover), served by only one reception tower (RT) with incorporated compactor (K)
RONDO-RT/K units can be installed in Parks, in Pedestrian zones, in Hotels, in Hospitals, in Schools and in Pavements having width approx 4,0 m, even under the roads (if it is allowed by the authorities) with the reception tower in the side walk. Rondo units can be provided for covering with grass, stones, etc to perfectly matchthe surrounding environment.

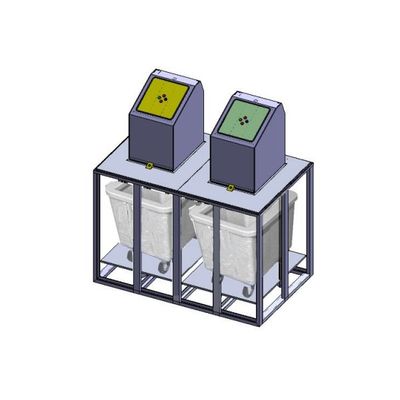

STRETO- RT/K system for undergrounding of 2 wheelie steel waste bins of 1100 lt with reception tower (RT) over each bin and incorporated compactor (K). The STRETO units are delivered fully preassembled within an FRP or galvanized steel vessel. STRETO- RT/K units can be installed in Parks, in Pedestrian zones, in Hotels, in Hospitals, in Schools and in Pavements having a width of approx 1,6m. STRETO- RT/K units can be provided for covering with grass, stones, etc to perfectly match the surrounding environment.

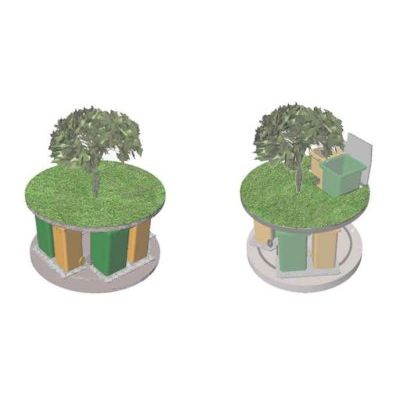

RONDO-FC system with flat cover (FC) for undergrounding in a covered shaft 3, 4 or 5 pair of 120 / 240 lt wheelie waste bins for household and recyclable waste. The installation of a Rondo-FC unit increases the garden space considerably due to reducing up to approx. 80% of the reserved storage space for the waste bins. Rondo units can be provided for covering with grass, stones, etc to perfectly match the surrounding environment. By keeping your key turned in the wall or in a column mounted control board, the system rotates until your own pair of waste bins comes under the cover, which will then open.

STRETO-FC system complete in factory preassembled within an FRP vessel with water tight automatically opened steel hinged flat cover (FC), standing up to 130 kg/m2 (optional for up to 750 kg/m2) , 230V motor included, wall mounted control board with key and 10 m connection cable. Automatically (optional) opening lid of the 240 lt waste bins (*patended).

The WASTE-O-MAT systems are electro-hydraulic operated units for undergrounding of conventional wheeled waste bins, of capacity up to 1300 lt and are delivered with ‘’CE’’ declaration conformity, according to the European directive EC-06/42. The WASTE-O-MAT units are delivered in two pre-assembled and in factory pre-tested parts for installation in prefabricated pits either as single units or in groups of more units with independent lifting (patent) of each unit what enables the collection of organic and recyclable waste on different days and or hours.

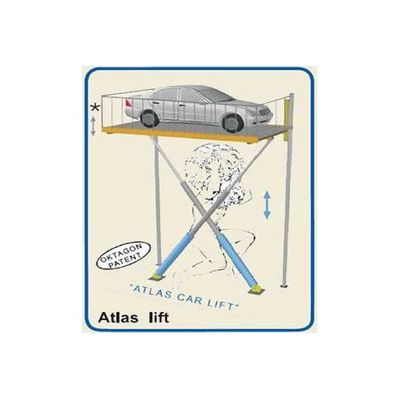

The car lifts of scissor-type were designed many years ago for lifting of commercial goods. We at OKTAGON do not offer them as car lifts in residential buildings because they have very poor performance. Forexample in orderto lift a car weighting 2000 kg, a hydraulic piston force is required between 14.000 and 16.000 kg.

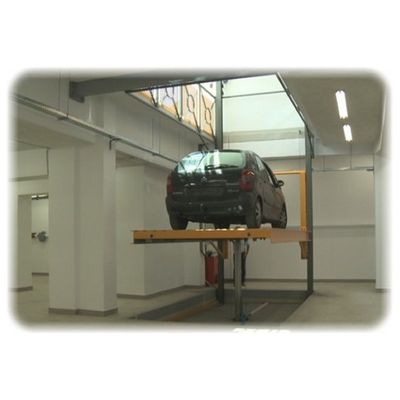

incorporated lateral sliding or up to 180 deg. turning platform. Customized lifts: 5000 kg lift with one direct acting hydraulic cylinder, automatic submergible fence and pit cover

Motorcycle lift for parking a motorcycle in the basement ,hatch cover in the ground floor and secondary lifting for loading on truck.

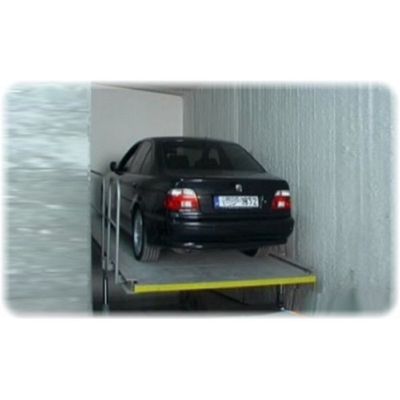

Two level parking unit with pit for 2, 4 or 6 parking places on inclined or horizontal platforms
