Olpas products
Water-monitoring sensors

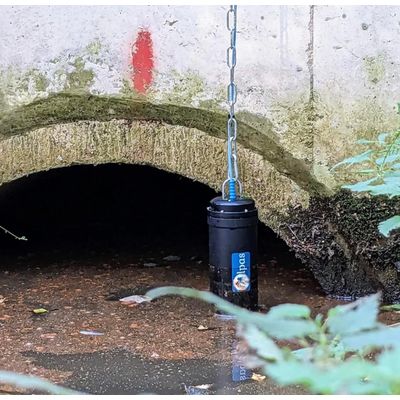

OLPAS - Model OTE-TSSC - TSS Monitoring in Sewers and CSO
Tracking TSS (Total Suspended Solids) is crucial for gaining valuable insights into water quality evolution. Additionally, it serves as an alarm system for breakthroughs or overflows. The durable Olpas Tentacle sensors are versatile, capable of installation in open water, rivers, or in challenging environments such as sewers and overflows. Olpas Tentacle Sensors have been build with remote monitoring in mind. The sensors use less energy, are accurate, and fouling resistant. This makes them the most optimal practical and economical choice for remote monitoring.

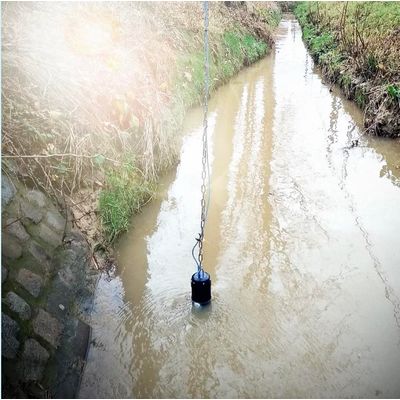

OLPAS - Model OTE-SEDA - Sediment Load Monitoring
Thanks to the extended maintenance intervals and low power consumption, Olpas sensors present an economic solution for sediment load monitoring in open waters and canals. Eliminating fault-prone mechanical wipers and a superior (bio)fouling resistance, sensor visits are only required for battery replacement and visual inspections, reducing the frequency of maintenance.Sludge concentration sensors
OLPAS - Model OTU-SDXB - TSS Monitoring in Dewatering Centrate
Measuring Total Suspended Solids (TSS) in dewatering centrate is a challenging task, but the innovative OLPAS ultrasound measurement technology makes it achievable, providing valuable insights into the dewatering process`s effectiveness. Measuring Total Suspended Solids (TSS) in centrate is a valuable metric for monitoring the dewatering process in a wastewater treatment plant (WWTP). It give insight in the the dewatering efficiency, but also provides quality assurance: TSS measurement ensures that the quality of the separated liquid (centrate) meets the requirements before it is flow back into the WWTP for processing.
OLPAS - Model OTU-SDXA - Sludge Concentration sensor (TSS)
The Olpas Sludge Concentration sensors, use the innovative ultrasound OLPAS technology, thus providing a reliable and economical measurement. The technology used, provides a fouling-resistant measurement of the sludge concentration, independent of sludge type or morphology. There are several version available with a small transducer for easy inline installation, for installation with the Olpas hot-tap retractable, and versions that are optimised for installation in a bassin. With the unprecedented fouling-resistance, which results in maintenance interval that are 4 times longer compared to optical sensors, the sensor provides an economic measurement that is several times cheaper compared to alternative technologies. Several hardware versions are available, all using the same innovative OLPAS Technology.
Dry Solids Measurement Sensors for Iron Sludge and Iron Water Treatment
Olpas - Model OBO-IWAA-001 - Ultrasound Dry Solids Sensor
The Olpas ultrasound sensor is designed for precise measurement of dry solids in iron sludge and iron water. Unlike optical sensors, which can be impeded by the opaque nature of iron sludge, this sensor utilizes ultrasound technology to deliver accurate readings between 2% and 30% DS. The sensor demonstrates insensitivity to fluid color and solid structure, significantly reducing maintenance needs and eliminating frequent recalibration requirements common with microwave sensors. It operates under a range of conditions, maintaining accuracy across varying fluid velocities. The system is powered by a flexible DC supply ranging from 6V to 24V and features a Modbus interface for seamless integration into existing systems. Its robust design includes anodized aluminum housing and epoxy-sealed windows to withstand harsh environments. With installation options for both inline and basin configurations, the sensor provides versatile mounting solutions adaptable to different applications in water treatment processes.
Olpas - Model OTU-IWAA-001 - Inline Dry Solids Measurement Sensor for Iron Water and Sludge
The Olpas Dry Solids/Dry Matter Sensor is designed for inline measurement in iron water and iron sludge. Featuring ultrasound technology, the sensor offers high reliability and accuracy in challenging conditions where traditional optical and microwave sensors fail, due to the opaque and conductive nature of iron sludge. Capable of measuring dry solids concentration from 2% to 30%, it is insensitive to fluid color, velocity, and solids' structural changes. The sensor is pre-calibrated, with options for RS485 Modbus RTU communication, and integrates seamlessly with existing IoT solutions or PLCs. Installation offers flexibility with mounting options, including inline flange and chain mounting, and requires a minimal depth of 60mm for effective measurement. Constructed with durable materials like Stainless Steel 316L and providing easy maintenance requirements, Olpas sensors represent an efficient solution for water treatment facilities requiring high-precision solids concentration monitoring.TSS Sensor for Sewers and Overflows
Olpas - Model OTE-CUSC-00X - Ultrasonic TSS Monitoring Sensor
Olpas Measurement Technology offers advanced ultrasonic sensors designed to enhance water treatment processes through precise monitoring capabilities. These sensors utilize ultrasound backscattering principles to measure parameters such as Total Suspended Solids (TSS) concentration in various applications, including sludge dewatering and urban water treatment. With a robust measuring range of 0-10 g/L, the sensors are unaffected by changes in optical parameters, fluid color, or velocity, ensuring reliable performance across diverse conditions. The sensors can be mounted using fixed or suspended installations, enabling ease of maintenance. They are constructed with anodized aluminum housing and fluorine rubber O-rings, providing durability and resistance to environmental influences. Integration into existing IoT systems is facilitated via RS485 Modbus communication, offering options for solar or battery power. Suitable for inline deployment, these sensors deliver continuous measurement and are ideal for implementation in industrial settings, contributing to efficient water management and process optimization.
Olpas - Model OTE-TSSC-001 - Ultrasound TSS Sonde for Challenging Water Environments
The Olpas OTE-TSSC-001 is an advanced total suspended solids (TSS) sensor designed for challenging water environments, including urban sewers, overflows, and influent systems. Utilizing ultrasound backscattering measurement principles, it offers a robust measuring range from 0 to 6 g/L, unaffected by changes in optical parameters or fluid color. This pre-calibrated Modbus sensor allows flexible installation, with options for both fixed mounting using M10 brackets and suspension via a stainless-steel chain. The device is engineered from anodized aluminum with a fluorine rubber sealing and epoxy sensor window to ensure durability. Maintenance requirements are minimal due to its resistance to fouling, which eliminates the need for wipers or pressured air cleaning. It supports Modbus RTU communication via a four-wire cable with a 4-pin M12 connector, and can be powered by DC supply voltage ranging between 6V and 24V. This makes it ideal for remote and difficult-to-access locations, where solar or battery power is preferred.Sediment Concentration Monitoring Sensor
Olpas - Model OTE-SEDA-001 - Sediment Load Sensor for Water Monitoring
The Olpas Sediment Load Sensor is a pre-calibrated modbus sensor specifically designed for measuring suspended sediment concentration (SSC) in open water or canal environments. Utilizing OLPAS ultrasound measurement technology, the sensor ensures minimal impact from fouling, extending maintenance intervals significantly over traditional optical sensors. This ultrasonic backscattering technique allows the device to operate unaffected by variations in water color, fluid velocity, or the physical properties of suspended solids. The sensor, housed in anodized aluminum, is designed to remain partially or fully submerged, requiring a DC supply voltage of 6V to 24V. It supports modbus RTU communication and can integrate into existing IoT or PLC frameworks. A robust design allows for installation in hard-to-reach areas, supported by fixed or flexible mounting configurations, enhancing its utility in diverse environments. Visual inspections and basic cleaning suffice for routine maintenance, while preventive measures ensure optimized performance.TSS Concentration
Olpas - Model OTU-TSSB-001 - TSS Concentration (Inline Mounting)
Pre-calibrated modbus-sensor (for inline measurement). Advantages: The Olpas Total Suspended Solids (TSS) sensor uses the unique Olpas ultrasound measurement technology. The sensor is pre-calibrated. Scaling and offset can be set for installation-specific parameters. Versions available for chain mounting and inline mounting.
