Omni Metalcraft products

The Belt Driven Live Roller (BDLR) Conveyor from Omni Metalcraft is engineered to accommodate products of different shapes, sizes, and weights, making it suitable for a wide range of material handling applications. The BDLR conveyor features 1.9 x 16ga or 2.5 x 11ga rollers. It offers bolted galvanized frames for lighter duties and welded painted frames for medium to heavy duties. This versatile conveyor system supports transporting, accumulating, diverting, and merging products with low maintenance and simple design functionality. It offers various motor options, including end or center drives, making it adaptable for both forward and reversing applications. Other options include straight, curve, and spur configurations with V-belt driving mechanisms. There are additional equipment and options available such as side guides, supports, ceiling hangers, end stops, and roller coatings. This makes the BDLR conveyor a robust solution for handling boxes, cases, drums, appliances, and loaded pallets.

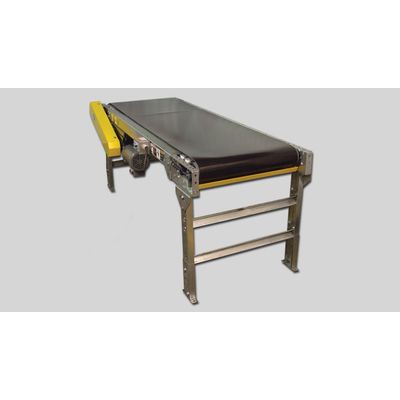

The Belt Conveyor (BC) system by Omni Metalcraft is designed to enhance efficiency in various applications such as assembly lines, sorting, inspection, and transportation. This versatile conveyor system is capable of handling a diverse array of products from bulky boxes and bundled items to furniture, wood sheets, totes, and packaged goods. The BC models achieve higher speeds compared to other conveyor types and come with multiple belt options to cater to specific needs. The available models include the BCST 100, BCST 300, BCST 600, and BCST 1200, each with varying load capacities and structural features such as bolt-together galvanized frames or welded powder-coated frames. Additional features include incline/decline capabilities, belt curves with speeds up to 200 FPM, and trough configurations perfect for cylindrical products. Optional equipment such as side guides, supports, ceiling hangers, and various drive styles further enhance customization. Control options allow tailored solutions to meet precise operational requirements.

The Chain Driven Live Roller (CDLR) Conveyor from Omni Metalcraft is specifically designed for the transportation of heavy items such as loaded pallets, tires, and drums. The conveyor system features a robust, welded construction using structural steel, ensuring durability in harsh and abrasive environments. Standard offerings include customizable lengths and widths with nearly unlimited between-frame dimensions. The positive drive mechanism, employing roller-to-roller chains and sprockets, provides assured driving power, making it suitable for applications such as palletizing, filling, load staging, robotic cells, stretch wrapping, strapping, and general transportation. The conveyor comes in various models with roller diameters ranging from 1.9 inches to 6 inches or larger, accommodating loads from 1,500 lbs to 30,000 lbs per unit in extreme duty applications. Optional equipment includes side guides, supports, end stops, transfer devices, and paint color choices. The system is compatible with controls and devices for enhanced functionality, making it a versatile choice for industrial material handling.

Chain conveyors from Omni Metalcraft are designed to handle items that are not suitable for roller conveyors. These conveyors are ideal for various challenging applications such as wrong-way pallets, racks, and automobile frames, providing a sturdy conveying surface. They can be seamlessly integrated with Chain Driven Live Roller (CDLR) systems and chain transfers, enhancing production line versatility. These conveyors can move heavy items like pallets, bars, and tubes. The standard models (CC50, CC60, CC80) come equipped with UHMW or steel track and structural tube frames capable of handling live loads up to 10,000 lbs. More demanding applications can be addressed with custom chain conveyors featuring various chain types, frame configurations, and load capacities up to 50,000 lbs. Optional equipment such as side guides, supports, end stops, transition rollers, and customized controls are available to tailor the conveyor to specific operational requirements.

Gravity Conveyors (GC) are one of the most cost effective and versatile product lines available. These conveyors are excellent for both permanent and temporary conveyor lines often found in warehouses, shipping departments and assembly areas. Gravity curves and spur options can add to the versatility of straight conveyors.
