Omniflex (Pty) Ltd products

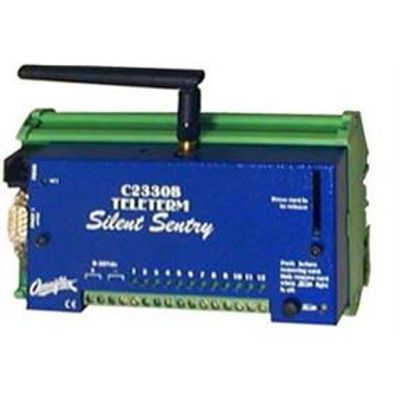

The TELETERM Silent Sentry is a state-of-the-art Alarm Monitor capable of monitoring a wide range of input types and sending SMS Alarm messages upon detection of an alarm condition.

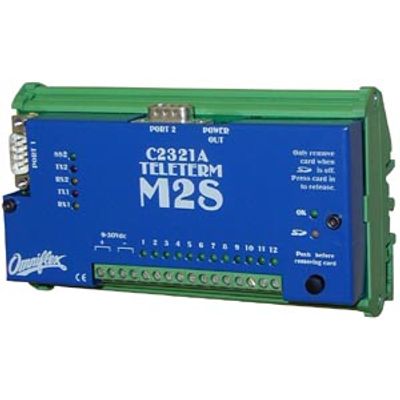

The TELETERM M2 is a state-of-the-art RTU range designed to enable a wide range of devices and machines with state-of-the-art connectivity. Everyone is aware of the enormous advances to efficiency and productivity that the latest wireless telecommunications technology and the Internet have brought to our society. With an estimated three times as many machines in the world as people, can you imagine the benefits to you of being able to harness this technology to manage your hard assets as well – regardless of where they are located!

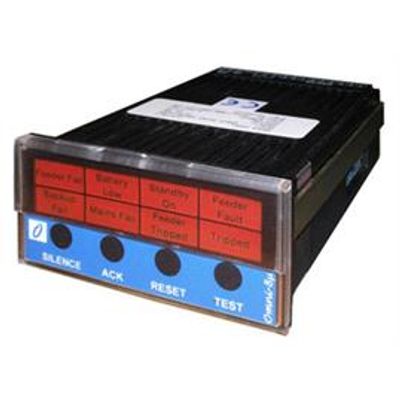

The Omni8 micro is the smallest annunciator yet from Omniflex, designed for use in space restricted areas and low input counts. Omni8 micro is a fully self- contained panel mounted annunciator with integral Test, Silence, Acknowledge, Reset Pushbuttons and audible device.

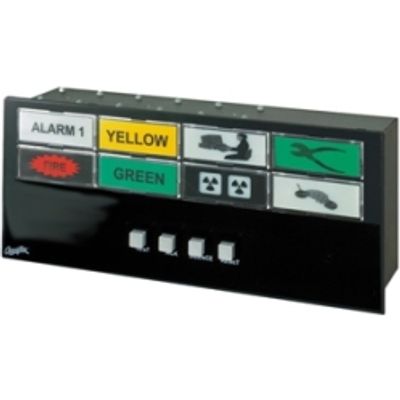

The Omni8P annunciators replace the Omni8B annunciator with a range of products offering the option of incandescent lamps, backlit LED or Sidebar LED indicator windows. The Omni8P is a panel mounted 8 point alarm annunciator with integrated Test, Silence, Acknowledge and Reset Pushbuttons, and internal audible warning.

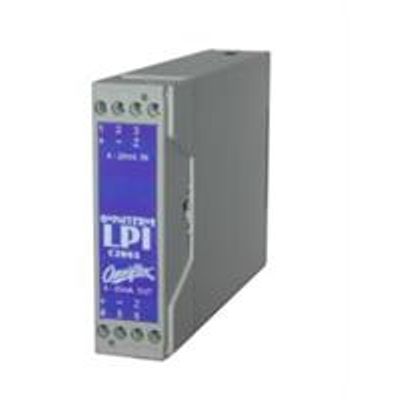

The OMNITERM LPI is a loop powered isolating current repeater specifically designed to isolate instrument current loops from circulating ground currents that can cause system inaccuracies or, at worst, instrument failure. Insert in any 4-20mA current loop to isolate the instruments in the loop. The current applied to the input is repeated on the isolated output, and the load present on the output is reflected back to the input. No separate power source is required.

The OMNITERM LPD is a dual loop powered isolating current repeater specifically designed to isolate instrument current loops from circulating ground currents that can cause system inaccuracies, or at worst, instrument failure. Insert in any 4-20mA current loop to isolate the instruments in the loop. Each channel of the LPD is completely separate and isolated from the oher. The current applied to the input of a channel is repeated on the isolated output, and the load present on the output is reflected back to the input. No separate power source is required. Forming part of OMNIFLEX` extensive OMNITERM range of industrial instrumentation, the OMNITERM LPD is designed to be DIN rail mounted, and is 22.5mm wide.

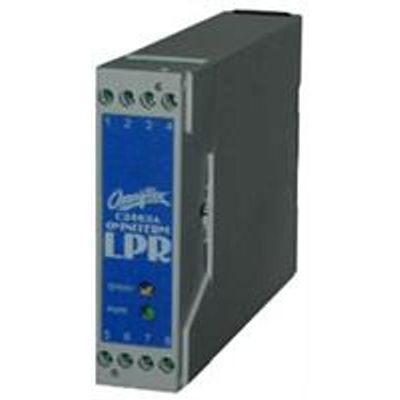

The Omniterm LPR current loop repeater is designed to create an additional current loop signal from an existing current loop without affecting the integrity of the first loop. Use the LPR to repeat current loops into SCADA, PLC and DCS systems. This 24Vdc powered module accepts 0-20mA oor 4-20mA input, and creates a second 0-20mA or 4-20mA output that repeats the input current. The input, output and power supply are each isolated from the other allowing this instrument to be inserted into any current loop without creating ground loops, even if the repeated output current loop is grounded (as is common with PLC and DCS inputs).

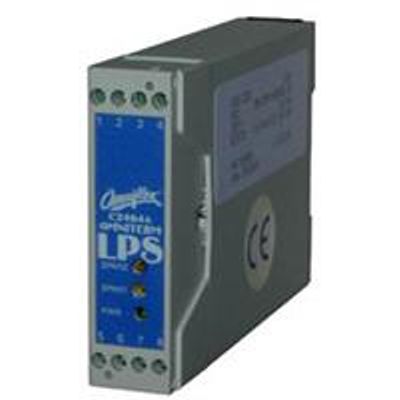

The Omniterm LPS current loop splitter is designed to create two additional current loop signals from an existing current loop without affecting the integrity of the first loop. Use the LPS to repeat current loops into SCADA, PLC and DCS systems. This 24Vdc powered module accepts 0-20mA oor 4-20mA input, and creates two secondary 0-20mA or 4-20mA outputs that repeat the input current. The input, outputs and power supply are each isolated from the other allowing this instrument to be inserted into any current loop without creating ground loops significantly affecting the impedance of the loop, even if the repeated output current loops are grounded (as is common with PLC and DCS inputs).
