ONYX Networks Texas LLC products

SATEL-EASy Pro+ is an IP67 classified UHF radio modem with a high power transmitter, wide tuning range (403…473 MHz) in one hardware and selectable channel spacing. Supported AES128 (by default) / AES256 (as an order option) encryption on radio channel increases the data security. Due to the high transmitting power, connection distances more than 80 kilometres can be covered in favourable conditions. SATEL-EASy Pro+ is compatible with widely used SATELLINE-EASy and SATEL-EASy+ product families too as well as some obsolete radio modem models, such like SATELLINE-4Pro, SATELLINE-3AS NMS and SATELLINE-3AS EPIC NMS.

SATELLINE-EASy is provides a compact and flexible solution for many different long-range applications. It can be equipped with an LCD and push buttons for facilitating the configuration of the radio modem. SATELLINE-EASy has two operating voltage levels to choose from and low power consumption.

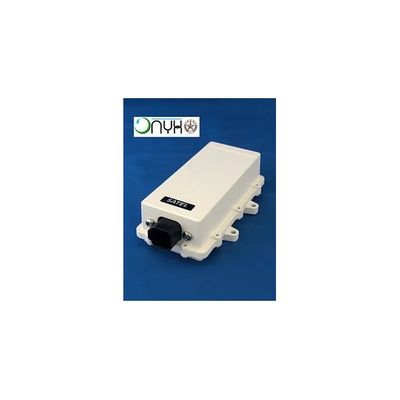

SATEL Proof-TR4+ / -TR9 is a heavy-duty radio modem. It has the IP69K rating, which is the highest protection available. It protects against ingress of dust, high temperature and high-pressure water. The product consists of this IP69K sealed housing and a radio module using either 403-473 MHz or the ISM licence-free frequency band 902–928 MHz .

SATELLINE-3AS VHF is a half-duplex VHF radio modem that operates on 135 … 174 MHz frequency band. Channel spacing 12.5 and 25 kHz are available, with over-the-air data rates 9600 bps or 19200 bps, respectively. A special advantage of the VHF frequency band, is the wider coverage. With the same carrier power and antenna gain, the connection ranges are 30 to 50 per cent larger than those reached with an equivalent UHF radio modem.

Welcome to our website, your ultimate destination for high-quality industrial antennas! At ONYX, we specialize in providing top-of-the-line antennas designed to meet the unique communication needs of various industries. Whether you require antennas for wireless connectivity, data transmission, or remote monitoring, we have the perfect solutions to ensure seamless and reliable communication.

RF enclosures for wireless data transfer in harsh environments and hazardous locations. The device complies with North American and International standards. Basic design allows data transfer via RS232, RS485 or RS422 as well as Modbus or Profibus protocols. Enclosure types Cast aluminum - Epoxy painted cast aluminum - Epoxy painted cast iron - Stainless Steel 316L - Reinforced fiberglass (zone 2 only).
