OPAL-RT TECHNOLOGIES, Inc. products
Hardware Platforms

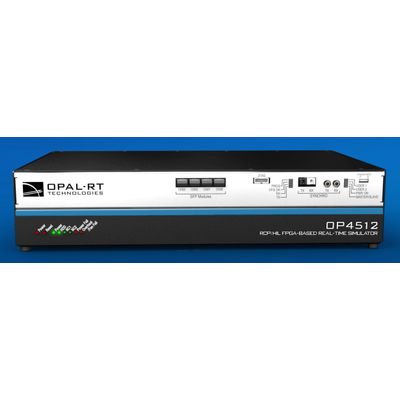

OPAL-RT - Compact Entry-Level Simulator
The OP4512 is a compact, entry-level simulator that combines all of OPAL-RT’s strengths in high-performance Rapid Control Prototyping and Hardware-in-the-loop simulation. The OP4512 is the latest evolution of our popular OP4510. This robust real-time power grid simulator offers the best performance at an affordable price.
OPAL-RT - Compact Mid-Range Simulator
The OP4610XG is OPAL-RT’s new compact mid-range simulator in its XG series and the successor of the popular OP4510. The OP4610XG is a powerful all-in-one solution in a compact desktop form factor that combines the latest AMD RyzenTM processing cores with the power of a Xilinx® Kintex®-7 410T FPGA while supporting an extensive list of communication protocols to meet the requirements for demanding Hardware-in-the-Loop (HIL) and Rapid Control Prototyping (RCP) applications.
OPAL-RT - Versatile Real-Time Digital Simulator
Backed by nearly two decades of expertise in the development of high-performance simulation hardware, the OP5705XG real-time simulator is the most adopted simulation platform by OPAL-RT users in industry and academia. OP5705XG combines the performance, versatility and reliability that is ideal for demanding hardware-in-the-loop applications. Whether working within the power systems, aerospace, automotive, oil and gas or other electro-mechanical industries, the OP5705XG has the power to simulate systems, while offering all the I/Os required to get your hardware into the loop.

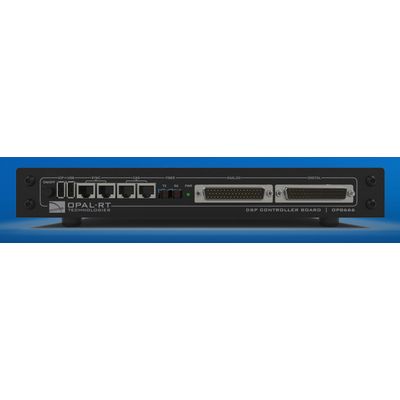

OPAL-RT - RCP Controller
The OP8666 DSP controller board is based on the popular TI C2000 series of microcontrollers that support direct programming from MATLAB Simulink, PSIM as well as embedded C making it capable of handling advanced control algorithms. This versatility is especially powerful for power electronics applications, where the OP8666 can be used for Rapid Control Prototyping (RCP) and conventional embedded development. It’s a perfect tool for validation of power converters control methods. Keeping that in mind, the OP8666 was designed to benefit fully from the RCP functionality while providing maximum integration and communication options.
OPAL-RT - Real-Time Digital Simulation
OPAL-RT’s primary goal is to provide users with a real-time digital simulation platform equipped with the best Intel processor technology available. Configurable for each customer, OPAL-RT’s real-time systems can be made to simulate, supervise and communicate with each other as master and slave systems.Based on Intel® Xeon® with up to 44-cores, the OP5033XG simulator serves as an ideal master system for configurations requiring FPGA and I/O expansion units. The OP5033XG also provides an ideal platform for real-time cybersecurity applications, in which only network protocols such as C37.118 and IEC61850 are required for hardware integration, as well as for users simply wishing to accelerate their offline simulations using OPAL-RT’s parallel processing technology.
