Optimum Filter, Inc. products

316L SS construction machined to less than 20 Ra.

316L SS construction machined to less than 20 Ra. Pressure Rating: 300 PSI at 200°F.

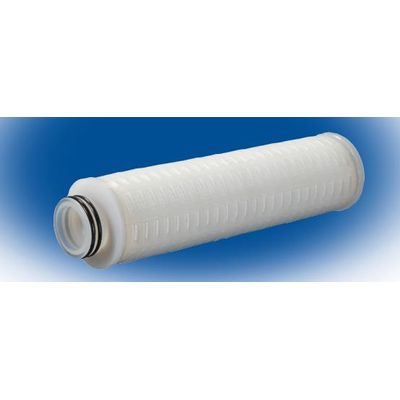

The GPFA all-fluoropolymer filter cartridge series provides superior chemical compatibility, temperature range, with ultra-low extractables for the most demanding needs of the micro-electronics industry. Ideal for aggressive “wet-etch and clean” applications. The PTFE membrane offers high flow rate at low pressure drop, while the PFA440HP hardware exhibits superior chemical resistance and high temperature tolerance. Minimized ionic and TOC extractables are attained through a specialized UPW water flush process. Wet-packing option is available for ease of use in aqueous applications. Available in the full range of micron ratings to suit all applications.

FluoroClear Cartridges are designed for highly aggressive wet-etch and cleaning applications. FluoroClear cartridges are constructed with 100% fluorocarbon materials, providing broad chemical compatibility and temperature resistance. The PTFE membrane delivers high flow rates and high purity effluent at low  pressure drops. Cartridges are available as flushed & dried or as wet-packed (60/40% DI Water/IPA Solution). FluoroClear cartridges are manufactured in a cleanroom environment to ensure product cleanliness.

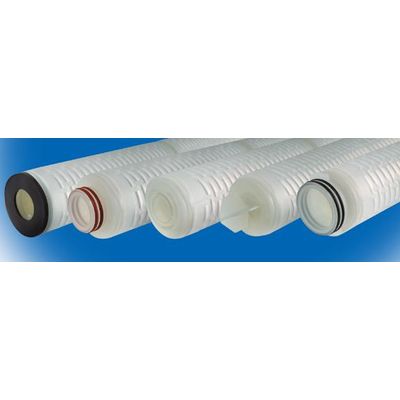

Pleated Polypropylene Cartridges are designed for use in most applications where absolute rated pleated filtration is needed. Designed to hold 6.5 square feet of filtration media, our High Purity - PP Cartridge is a great value. These cartridges are constructed with 100% polypropylene materials and assembled using the latest thermal bonding equipment. Efficiency ratings to 99.98% (Beta 5000).

GPB-Series Bi-Component Polyolefin Filter Cartridges feature thermally bonded co- extruded polyolefin fibers manufactured in a unique and proprietary process. The result is fiber-to-fiber point bonds forming a rigid, fixed- matrix pore structure. The performance benefit of this construction is a sharpened retention size cut-off. Furthermore, the enhanced matrix rigidity provides greater tolerance to differential pressures. This unique feature also prevents changes in fiber matrix throughout the life of the filter. Consistent precise filtration acts to prevent against contaminant unloading. GPB series filter cartridges are free of additives, wetting agents, binders and silicone.

Engineered with the Pharmaceutical and High Purity Industry in mind.

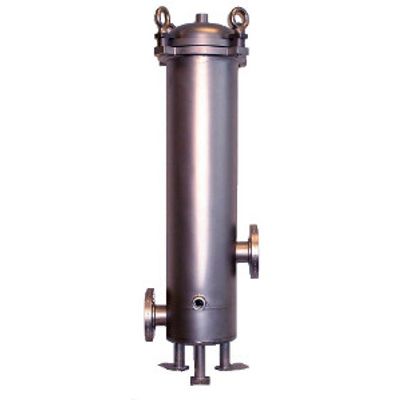

Our unique design is engineered to accept the Optimum 6″ diameter HF High Flow Pleated Cartridge providing a compact solution for higher flow rates.

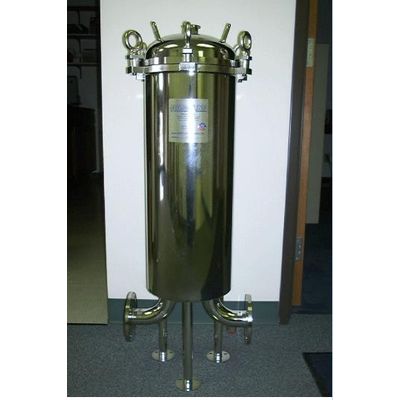

Engineered with economical configurations to reduce cost without sacrificing integrity. Standard line of housings, with 3, 4, 5, 6, & 7 cartridges to accommodate lower flow rates. 316 stainless steel construction, ensures product purity. Offset configuration allows flexible piping options. Unique Opti-Clamp closure ensures maximum strength and ease of operation.

Our unique design is engineered to accept the Optimum 6″ diameter HF High Flow Pleated Cartridge providing a compact solution for higher flow rates. A single cartridge can flow up to 300 GPM with virtually no pressure differential by the housing itself
