OPTOLUTION Messtechnik GmbH products

This system can be used for 2D/2C measurements in water up to 7 m/s and region of interests up to 300 x 250 mm. A wireless link controls the laser pulses from PIVlab. Very small interframe times (down to 60 µs) make it possible to measure high velocities. In combination with the OPTOcam 2/80, time-resolved PIV measurements are possible.

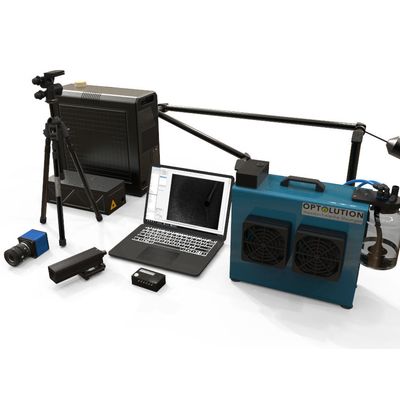

This system can be used for 2D/2C measurements in air with larger regions of interest or flow velocities. A wireless link controls the laser pulses from PIVlab. Very small interframe times (down to 10 µs) make it possible to measure high velocities. In combination with the pco.panda 26 DS (25 megapixels), high resolution PIV measurements are possible.

This system can be used for 2D/2C measurements in air with larger regions of interest or flow velocities. A wireless link controls the laser pulses from PIVlab. Very small interframe times (down to 10 µs) make it possible to measure high velocities. In combination with the pco.panda 26 DS (25 megapixels), high resolution PIV measurements are possible.

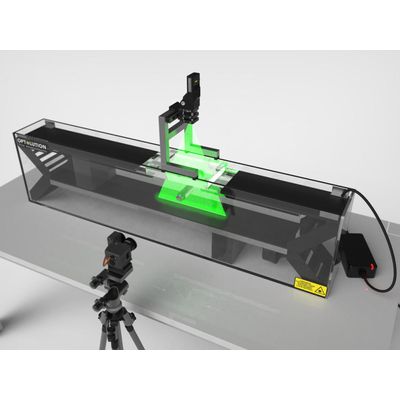

Circulating channel / aquarium (approx. 1200 mm x 150 mm x 300 mm) with thruster (200 W) and flow bodies (cylinder, wing sections, custom objects can easily be integrated by 3D printing).

The laser diode pulsing system (LD-PS) by OPTOLUTION is a low-cost illumination for Particle Image Velocimetry (PIV). It generates bright and very thin light sheets with user selectable pulse spacing and pulse length. The system is very compact and extremely easy to use. The high brightness is achieved by toggling (arrays of) high-power laser diodes using a special laser driver circuit. We offer optical power outputs of 5 W, 20 W and 40 W. The systems can be used for measurements in air or water. The LD-PS includes a built-in synchronizer that can be used to generate pulses for cameras. Several firmware for our cameras can be implemented. But the laser can also be setup to accept TTL pulses from a third-party synchronizer. Light sheet optics, an optical rail and a tripod mount (Manfrotto 200PL- Quick Release Plate) are included.
