Optronic GmbH products

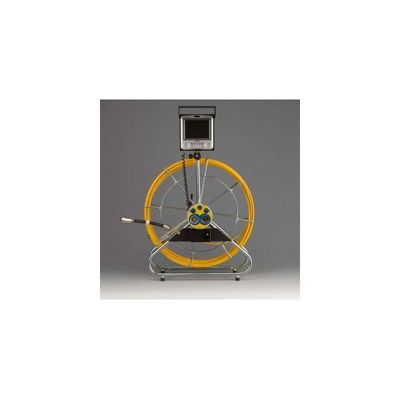

Video camera system for inspecting DN 50 to DN 250 pipes in and around the house The San-Scope 6.0 is a rugged camera system, designed specially for inspecting drainage pipes. With advanced m-LED technology, the camera heads illuminate up to DN 250 pipes. The 50 m fiberglass pushrod can negotiate around several 90° bends in a DN 70 pipe and inspect the full cable length. Even DN 20 pipes can be inspected with an optional Varioflex pushrod. Upgrades like a monitor, battery pack, cable distance counter, positioning or data acquisition unit transform this into a true stand-alone system.

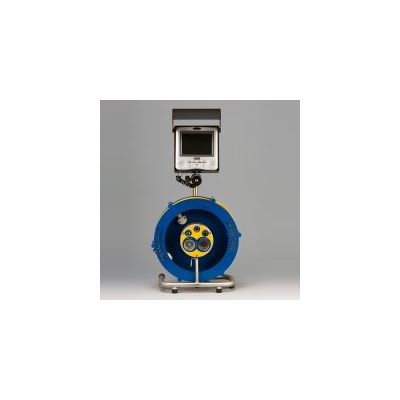

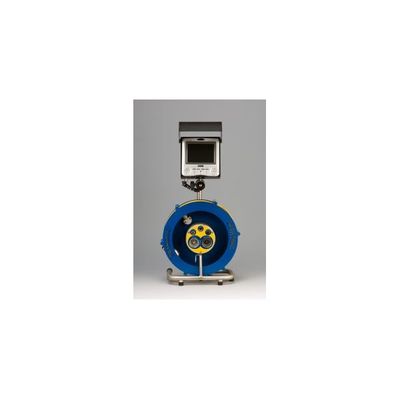

An extremely flexible and versatile video camera system ideal for tiny spaces and DN 20 to DN 200. The San-Scope Kombi is a dual-camera system for easy inspection of washbasins to drain pipes. The specially constructed Varioflex pushrod enables the 16 mm camera head to get around the tightest of curves. The 32 mm camera head is perfect for larger pipes and can, connected to a 30 m pushrod, easily inspect pipes up to DN 200.

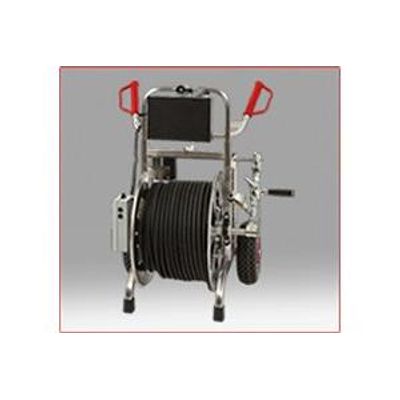

Digital camera system in one wire technology. A supplementary cable or wire beside the hose is not needed. The Jetcam 40 Pro is a very efficient system for unblocking. Before and after the unblocking, this system serves as sewer cleaning system. It is equipped with a high performance camera for having an ideal optical orientation while the several working procedures.

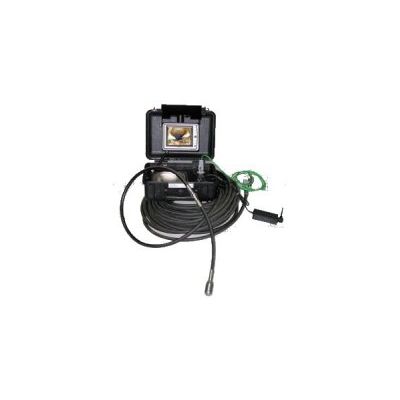

Digital camera system in one wire technology. A supplementary cable or wire beside the hose is not needed. The Jetcam 40 stand alone is a very efficient system for pipe cleaning. It is equipped with a high performance camera for having an ideal optical orientation.

The San-Scope Multifunction Steelroller comes with a huge range of use. The basic version has a 4,5mm/30m fibre glass cable with a 32mm CCD-color spherical head camera. It is further possible to install a mini camera on a 5-15m Varioflex cable on the back side. Therefor a second wrapping fixture exists on the bobbin. Optionally divers additional camera heads can be fit easily, using the new developed collector ring screwing fixture. Available are on the Varioflex cable a 16mm cmos and a 18mm cmos color camera. On the 4,5mm fibre glass cable a 23mm CCD color camera, a 32mm upstanding camera, and a 32mm double light ring CCD camera for illumination up to 200mm.
