Orbinox products

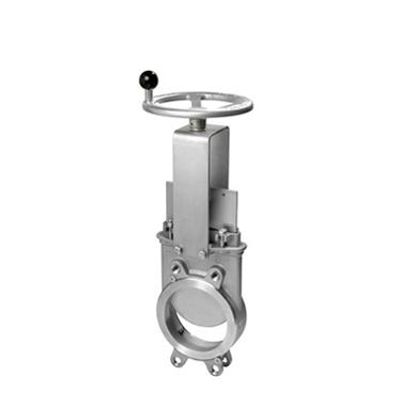

Uni-directional wafer style knife gate valve for general industrial applications. The EX model knife gate valve is a uni-directional wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as: Pulp and paper, power plants, wastewater treatment plants, chemical plants, food and beverage, bulk handling, mining, etc.

Uni-directional high performance wafer style knife gate valve for general industrial applications. The EK model knife gate is a uni-directional wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as: Pulp and paper, power plants, wastewater treatment plants, chemical plants, food and beverage, bulk handling, mining, etc.

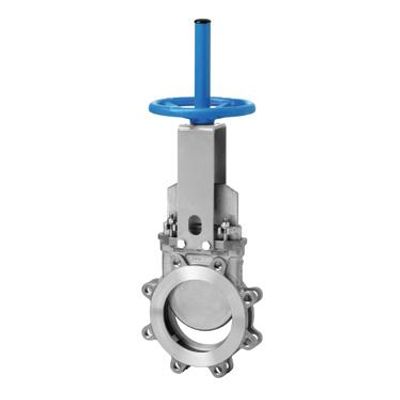

Uni-directional MSS SP-81 lug type knife gate valve for general industrial applications. The ET model knife gate is a uni-directional lug type valve designed according to MSS-SP-81 and TAPPI-TIS 405 for industrial service applications.

Four-side sealing flush bottom wall mounted penstock. Square or rectangular port sliding wall penstocks sealed on all 4 sides. Used for on-off or control applications in wells, tanks, pipe outlets, etc. Carbon or stainless steel fabricated construction, with tight sealing by means of elastomer seals. Available in a wide range of dimensions and for many different pressure heads.

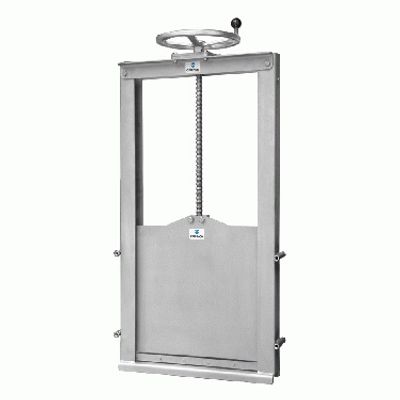

Three-side sealing flush bottom channel penstock or gate for open channels. Square or rectangular sliding channel gate, with fixed parts embedded in concrete and seals on 3 sides. Used for on-off or control applications in open channels. Carbon or stainless steel fabricated construction, with tight sealing by means of an elastomer seal. Available in a wide range of dimensions and for many different pressure heads.

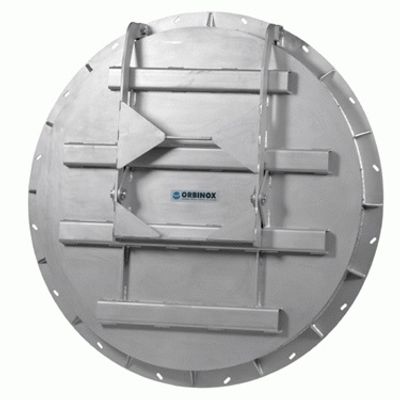

Round swing check gate to be wall-mounted or flanged, intended to prevent backflow and commonly installed at the end of a line, as a check valve. Carbon or stainless steel fabricated construction, with tight sealing by means of an elastomer seal. Available in a wide range of dimensions and for many different pressure heads. May include a counterweight for adjustment and control of the opening.

Regulating or isolating round butterfly damper. Normally with one single disc on a central shaft and optionally with multiple interconnected blades. Available with pneumatic, electric, hydraulic or manual actuator. Depending on the sealing system, varying levels of tightness can be obtained (95% -100 %). Suitable for low pressure combustion gases at high temperatures (600ºC). Applications in cogeneration plants, waste heat recovery systems. Sizes: Up to DN 2500.

T-shape or 3-way round and square section flange mounted multiple diverter damper for gas regulation/control, diverting and isolation. 3 way damper with one inlet and 2 outlets. Each outlet port has a butterfly or louvre damper, normally mechanically interlocked, so that as one port opens the other closes. The 3 way damper can control, distribute or isolate gas flow. Available with pneumatic, electric, hydraulic or manual actuator. Depending on the sealing system, varying levels of tightness can be obtained (95% -100 %). Suitable for low pressure combustion gases at high temperatures (600ºC). Applications in cogeneration plants, waste heat recovery systems. Sizes: Up to DN 2000.

One or multiple louver rectangular section flange mounted louver damper for gas regulation/control and isolation. Rectangular regulating or isolating damper. Options include a single louvre on a central shaft or multiple interconnected louvres, depending on the size of the damper. Available with pneumatic, electric, hydraulic or manual actuator. Depending on the sealing system, varying levels of tightness can be obtained (95% -100 %). Suitable for low pressure combustion gases at high temperatures (600ºC). Applications in cogeneration plants, waste heat recovery systems. Sizes: Upto 2500 x 2500.

Free discharge energy dissipation fixed cone valve for regulation and closing of bottom and intermediate outlets in dams and reservoirs. Round-port valve for regulating and closing the flow under high heads; normally installed at the outlet works of dams under free discharge. Designed to control the amount of water downstream in order not to damage the enviroment. The outflow can be guided by means of fixed or mobile guide vanes. Wide range of sizes and special materials to match specific requirements and depending on the head under which the gate will operate. Available with hydraulic, electric or manual actuator.
