The 6 position N-EVAP’s ability to expand the sample size range with an optional large sample holder makes it an ideal instrument for laboratories that will be evaporating up to 6 samples at once and are using a wide range of sample flask outside diameters. The standard instrument fits samples with an outside diameter of 10-30 mm, and the optional large sample holder can accommodate samples with an outside diameter of 30-56 mm.

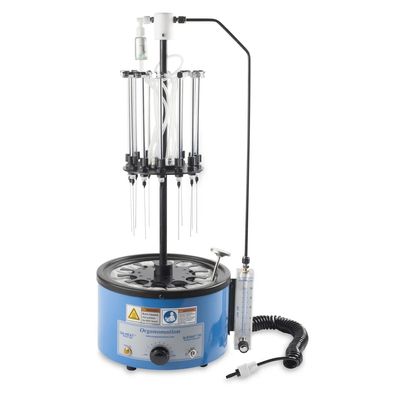

The 12 position N-EVAP nitrogen evaporator (cat# 11155) is a compact unit that allows for up to 12 samples to be evaporated simultaneously. At each individual sample position, the gas flow can be controlled via a precision needle valve. This is ideal for the simultaneous evaporation of samples with varying evaporation end points. The sample tray has a spring tensioner which allows any test tube between 10-30 mm to be processed without any modifications to the instrument. An optional small sample holder allows samples with an outside diameter of 5-16 mm to be processed.

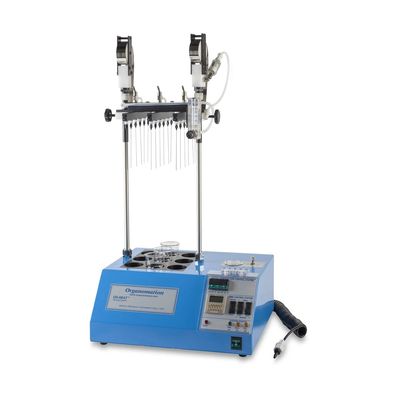

The 9 position MULTIVAP is a high temperature dry block model designed to evaporate large volume samples. The benchtop evaporator contains a rectangular gas distribution system mounted on a frame and dual post assembly, allowing the needles to be raised and lowered with ease. The manifold delivers nitrogen gas to the needles or glass pipettes, which direct the gas onto the sample’s surface. This method results in rapid solvent evaporation and sample concentration. In order to conserve nitrogen gas, the manifold has a toggle switch for every row of 3 samples, which allows the individual rows to be shut off when evaporating batches of less than 9 samples. Nitrogen gas flow is also controlled by an adjustable flow meter and a built-in pressure regulator.

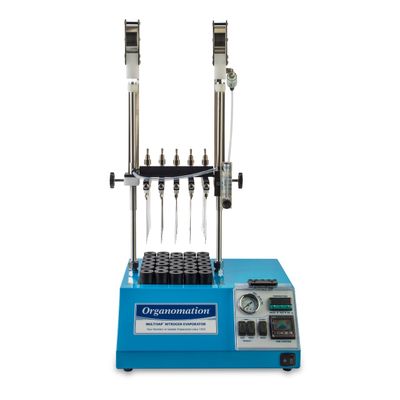

The 30 position MULTIVAP nitrogen blowdown evaporator is a high temperature dry block model. This instrument contains a rectangular gas distribution system mounted on a frame and dual post assembly. The manifold delivers nitrogen gas to the needles or glass pipettes, which direct the gas onto the sample’s surface. This method results in rapid solvent evaporation and sample concentration. In order to conserve nitrogen gas, the manifold has a toggle switch for every row of 5 samples, which allows individual rows to be shut off when evaporating batches of less than 30 samples. Nitrogen gas flow is also controlled by an adjustable flow meter and a built-in pressure regulator.

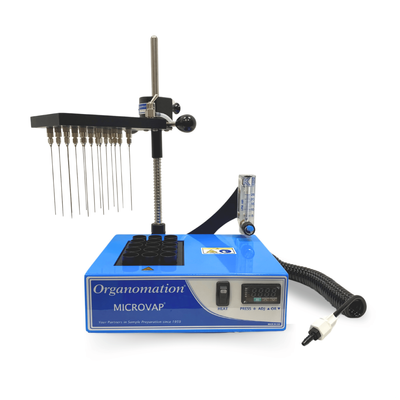

The 15 position MICROVAP benchtop evaporator is intended for small batch solvent evaporations, such as concentrations of sample groups in microcentrifuge tubes. It offers an effective and compact evaporation solution for samples in life science and pharmaceutical laboratories. Each MICROVAP uses minimal hood space while providing optimal temperature control for high and low boiling point solvents. The 15 position MICROVAP comes standard with stainless steel luer lock hubs and 4-inch x 19-gauge stainless steel needles for easy removal. Up to 15 samples can be accommodated at once, and the instrument comes customized for one sample size with an outside diameter of 10-22mm. If multiple sample sizes will be used with the instrument, inserts can be purchased for each additional sample size.

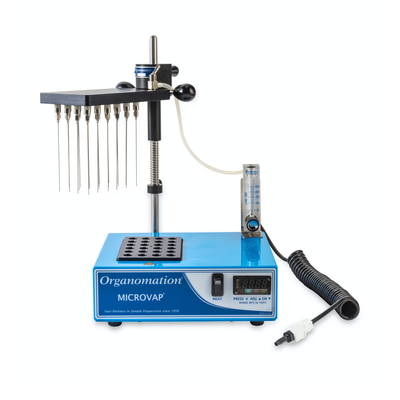

The 24 position MICROVAP small vial evaporator is intended for concentrating small volume, small batch samples, such as concentrations of groups of samples in microcentrifuge tubes and GC vials. It offers an effective and compact solution to evaporation of samples for life sciences and pharmaceutical laboratories. Each MICROVAP uses minimal hood space while providing optimal temperature control for high and low boiling point solvents. The 24 position MICROVAP comes standard with stainless steel luer lock hubs and 4-inch x 19-gauge stainless steel needles for easy removal.

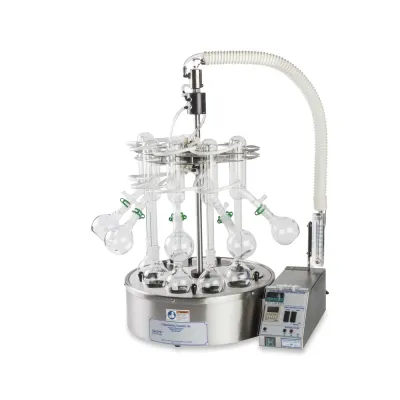

The digitally controlled 8 position S-EVAP-KD large scale solvent evaporator (Cat# 12018) can evaporate up to 8 samples at once with a capacity of up to 500 ml at each sample position. Glassware sets can be purchased for individual solvent collection (Cat# GS2153), or central solvent collection (Cat# GS2153-C with Cat# GS2158-C8). Smaller glassware accommodating up to 250 ml can be purchased for individual solvent collection (Cat# GS2152), or central solvent collection (Cat# GS2152-C with Cat# GS2158-C8). Smaller glassware is accommodated with the use adapter rings (Cat# XA2284).

The digitally controlled 10 position S-EVAP-KD (Cat# 12010) large scale evaporator can evaporate up to 10 samples at once with a capacity of up to 250 mL at each sample position.  Glassware sets can be purchased for individual solvent collection (Cat# GS2152), or central solvent collection (Cat# GS2152-C with Cat# GS2158-C10).

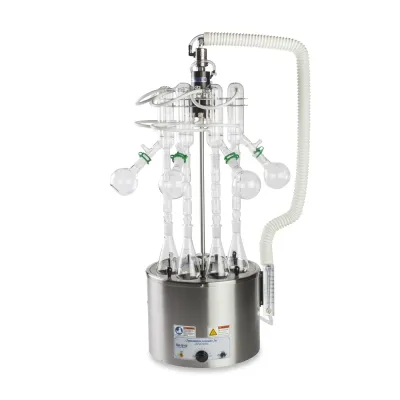

The mechanical thermostat 8 position S-EVAP-RB large scale solvent evaporator (Cat# 12060) can evaporate up to 8 samples at once with a capacity of up to 250 ml (Cat# GS2162) at each sample position. Smaller glassware accommodating up to 125 ml (Cat# GS2161) may also be used with the purchase of adapter rings (Cat# XA2286).

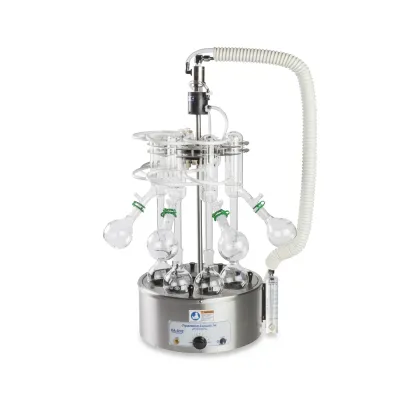

The digitally controlled 10 position S-EVAP-RB large scale solvent evaporator (Cat# 12090) can evaporate up to 10 samples at once with a capacity of up to 250 ml (Cat# GS2162) at each sample position. Smaller glassware accommodating up to 125 ml (Cat# GS2161) may also be used with the purchase of adapter rings (Cat# XA2286).
