Orion S.p.A products

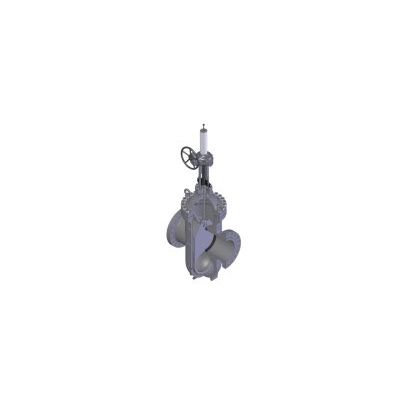

Cast steel, conduit type pipeline expanding gate valves, outside screw and yoke, rising system, metal to metal or soft seats, removable yoke sleeve, gland repacking under pressure.

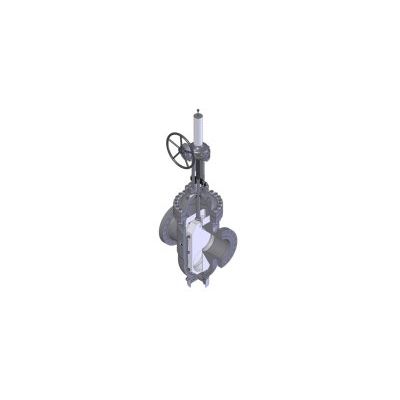

Cast steel, conduit type pipeline gate valves, single disc, normal acting or reverse acting, outside screw and yoke, rising stem, metal to metal or soft insert seats, removable yoke sleeve, gland repacking under pressure.

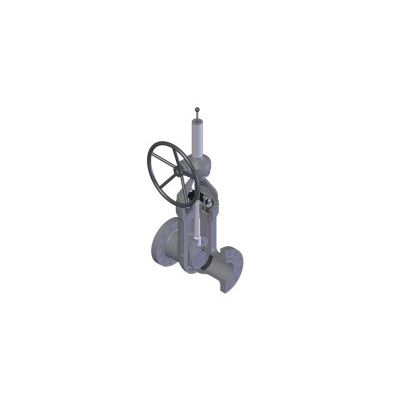

Pressure seal valves are best fit for vertical stem / horizontal flow installation. Special cases can be evaluated and developed on request. Cast or carbon alloy steel, outside screw and yoke, rising stem, non-rising handwheel, welded-in seat rings, removable yoke sleeve, gland repacking under pressure.

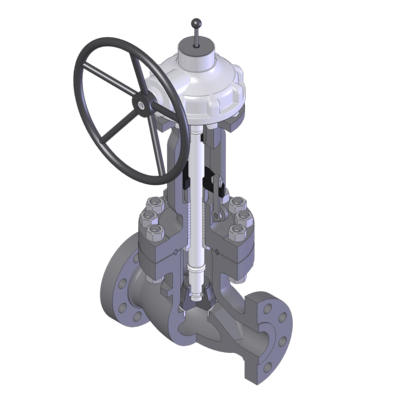

Pressure seal valves are best fit for vertical stem / horizontal flow installation. Special cases can be evaluated and developed on request. Cast or carbon alloy steel, outside screw and yoke, rising stem, guided swivel plug disc, welded-in seat ring, gland repacking under pressure.

Cast steel body, outside screw and yoke, rising stem, non-rising operator, renewable seats, removable yoke sleeve, backseat for repacking under pressure.

Also available as Y-pattern confihuration both in bolted bonnet and pressure seal version.

Cast or forged steel body, outside screw and yoke, rising stem, non-rising operator, renewable seats, removable yoke sleeve, backseat for repacking under pressure.

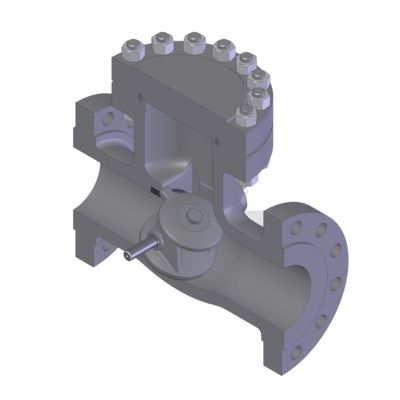

Cast steel, balanced disc, renewable body seat ring, bolted body-to-cover connection. Tilting disc check valves (top entry) are best fit for horizontal pipeline installation, thus they can be used even in vertical piping with upward flow. Check anyway with ORION if the valve is suitable for the desired installed position.

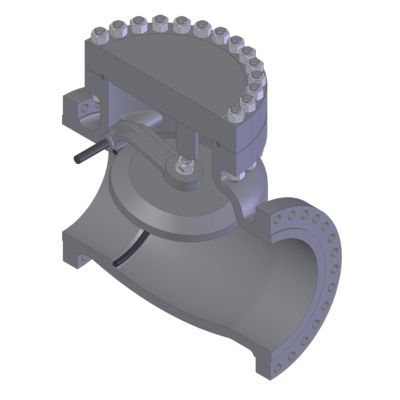

Cast Steel, Swing Type disc, renewable body seat ring, bolted body-to-cover connection. Swing check valves are best fit for horizontal pipeline installation. Special cases can be evaluated and developed upon request. For small valve sizes, a vertical installation (only with upward flow) is still possible, but for heavier weights of discs chattering issues can occur. Dampers or counterweight shall be then provided. Cast steel, swing type disc, renewable body seat ring, bolted body-to-cover connection.

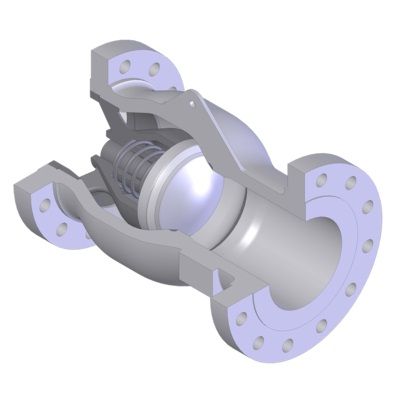

As per ORION standard, the spring is sized for horizontal and vertical (downward-upward flow) installation, but it shall be properly sized to match specific installation, especially on larger valves where heavy discs are involved. An arrow is cast embossed on the body of the valve, indicating the fluid direction. Check anyway with ORION if the valve is suitable for the desired installed position.
