Ortec - AMETEK products

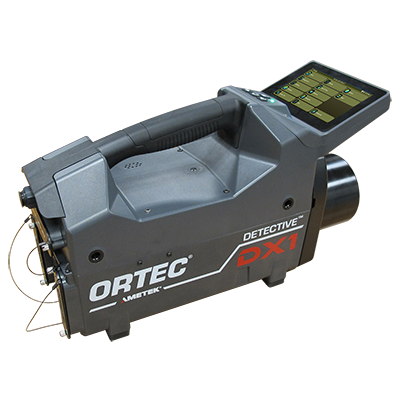

Experience the future of radioisotope identification with ORTEC’s new Detective DX1 — the next-generation High-Purity Germanium (HPGe) Radioisotope Identification Device (RIID) that sets a new standard in performance, ergonomics, and cybersecurity. Building upon the trusted legacy of the Detective-X, the DX1 combines familiar reliability with enhanced features to meet the evolving demands of today’s field professionals.

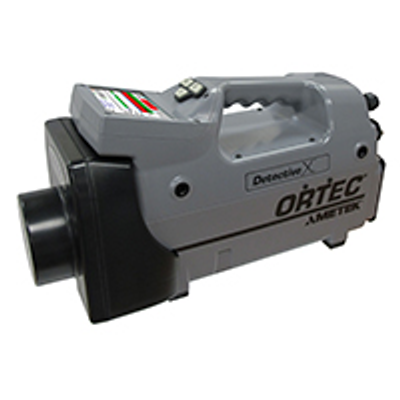

How do you improve on “The Gold Standard” for nuclear threat detection and identification? ORTEC’s Detective X high purity germanium (HPGe) “RIID” does exactly that with a combination of identification improvements, operational (conops) improvements, better interconnectivity capabilities, and longer battery life.

Combining a large, high sensitivity crystal with an intelligent algorithm, the RADEAGLE can quickly, accurately, and simultaneously detect and identify four or more isotopes, typically in under 30 seconds.

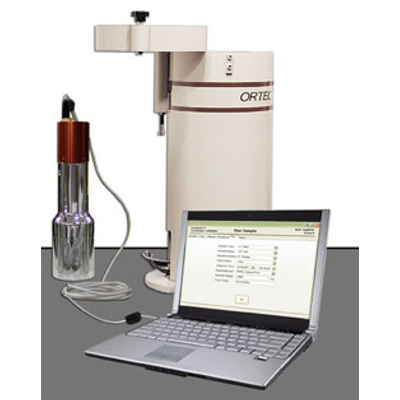

ORTEC GEM radiation detectors are P-type coaxial HPGe detectors designed to address the typical energy range for Gamma Spectroscopy of ~40 keV and upwards.

The ICS integrated electro-mechanical cooling system for HPGe radiation detectors from ORTEC exploits the latest generation in cryogenic technology to provide LN₂-free operation with no loss of detector performance.

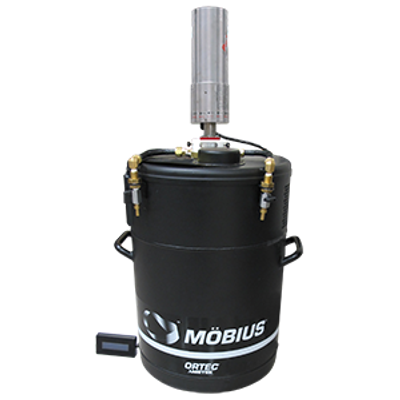

The ORTEC Möbius Recycler technology provides “tried and tested” liquid nitrogen cooling of your radiation detector in a system where LN₂ requires refilling approximately once every other year under normal, continuous operating conditions. This is achieved by the integration of the Sunpower^® cryocooler and a specially designed 25 liter liquid nitrogen dewar.

EASY-MCA interfaces to a PC via a USB2 cable. This compact MCA is stackable and portable, and no PC option slots are needed. Each EASY-MCA has memory capable of holding the complete spectrum. You have the option of 2k channels of resolution which can be switched to 1k or 0.5k channels or 8k channels of resolution which can be switched to 4k, 2k, 1k, or 0.5k channels.

The ORTEC EASY-NIM 928 suite of instruments offers a new approach to nuclear pulse counting and pulse-height analysis for a variety of applications in nuclear science, providing customers flexibility, reliability, and ease-of-use in a cost effective package. Each member of the family comprises hardware in the form of a compact single-width NIM module; software in the form of a “front panel emulator” for the Windows environment, and an optional toolkit to enable the user to integrate the hardware into his own experiment or instrumentation system.

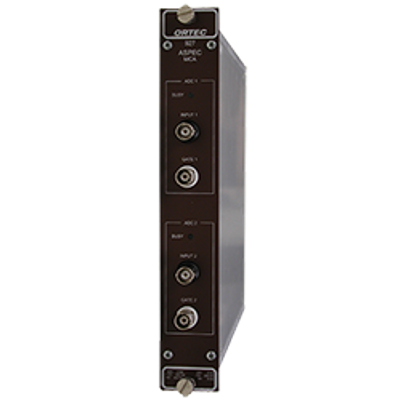

The ORTEC Model ASPEC-927 interfaces to a personal computer via the USB-2.0 interface and includes MAESTRO emulation software. Each ASPEC-927 is presented in a single width NIM chassis and includes two independent 16k ADCs, and 512 kb of memory. The successive-approximation 16,384 channel ADCs with 1.25-µs conversion time has selectable conversion gain settings for 8,192, 4,096, 2,048, 1,024, or 512. Dead time corrections can be accomplished using the Gedcke-Hale Extended Live-Time method or the ZDT method.

The ORTEC FoodGuard-1 Sodium Iodide Food Screening system is designed for the rapid screening of foodstuffs, both solids and liquids, for radioactive isotope contamination. Primarily designed for "front line" response for food producers, traders, import, and export agencies, etc., FoodGuard-1 is an out of the box solution developed specifically to get you up and testing samples in a matter of minutes.
