O.S.K. Vana Sanayi Ltd. Sti. products

O.S.K. ÇAVUŞYAN Strainer; Made of brass with replaceable single filtering screen made of stainless steel. PN 16 nominal pressure with pipe union connection with female thread. DN 65 (2,5`) up to DN 100 (4`)

O.S.K. CAVU§YAN CLASS 300 Bronze Gate Valves with NPT threaded end. Rising Stem. Union Bonnet; Body, bonnet and the wedge are made of bronze. Rising stem is made of MS-58 brass. May be repacked under pressure in full open position due to backseat. Rising stem visibly indicates position of wedge

O.S.K. ÇAVUŞYAN Conical Seat; Full body made of bronze. Perfect Mechanical Functions.Precise Geometry Dimensions. PN 16 nominal pressure. Good Semblance. Convenient Installations. Used in pipeline system for the transmission of water, oil, and other media. DN 65 (2 ½”) up to DN 100 (4”)

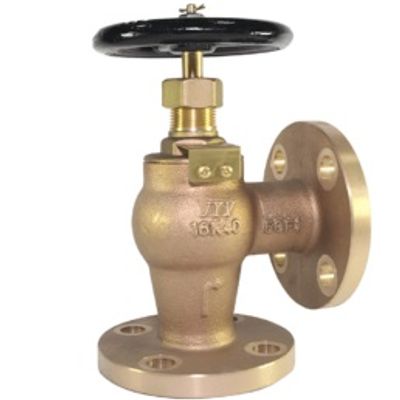

The Marine Bronze Angle Valve 16K is designed in compliance with JIS F7400 standards and features flanges as specified in JIS B2220 - 16K. Engineered to withstand harsh marine environments, this valve is suitable for sea water applications. It offers reliable performance due to its robust construction using marine-grade bronze, ensuring durability and resistance against corrosion. The technical specifications adhere to industry standards, making it an ideal choice for maritime operations requiring dependable flow control solutions.

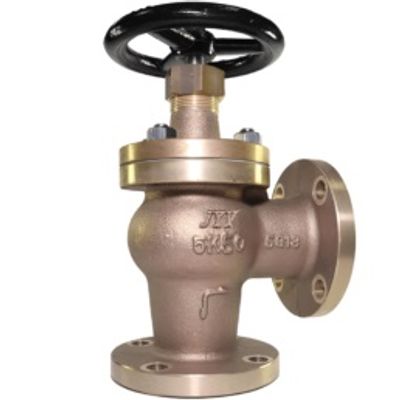

The Marine Bronze Angle Valve 5K, adhering to the JIS F7302 standard, is engineered for maritime applications, particularly with sea water. Available in sizes DN 15 to DN 65, this valve is designed to manage fluid flow with precision under marine conditions. Featuring a screwed bonnet for smaller sizes and a bolted bonnet for larger ones, the valve ensures secure closure and reliable operation. Its compliance with JIS F7400 production standards, along with the use of flanges per JIS B2220 - 5K, enhances its durability and integration into existing marine systems. This valve is part of a broader line of products including marine cast iron check and globe valves, each tailored to specific maritime operational needs. Together, these components provide robust options for controlling flow and pressure in challenging marine environments.

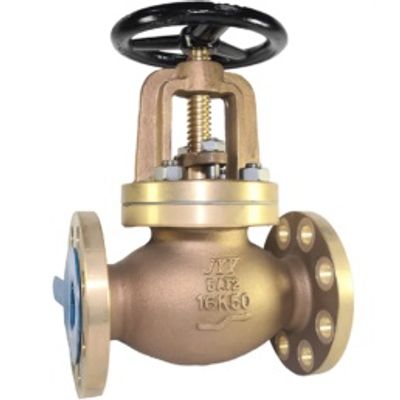

The Marine Bronze Globe Valve 16k, compliant with JIS F7303, is specifically engineered for maritime applications, particularly for controlling sea water flow. Constructed with bronze materials, it adheres to the stringent JIS F7400 standards and features flanges that conform to JIS B2220-16K specifications. This ensures its robustness and longevity in harsh marine environments. The valve`s design focuses on precision and reliability, offering effective flow control under high-pressure conditions. It forms an integral part of marine systems, ensuring operational safety and performance. The production process emphasizes precision engineering, aligning with international standards to guarantee durability and functionality.
