P S Analytical Limited products

The PSA L225A200 Sampling System is a simple sampling interface. The sample pathway is constructed entirely from inert plastics and glass for water/waste water samples. Consult P S Analytical for compatibility with more corrosive sample types. The system comprises a plug valve, particulate filter, needle valve and glass separator bowl (providing a continuously refreshed reservoir of sample at atmospheric pressure for sampling by the analyser).

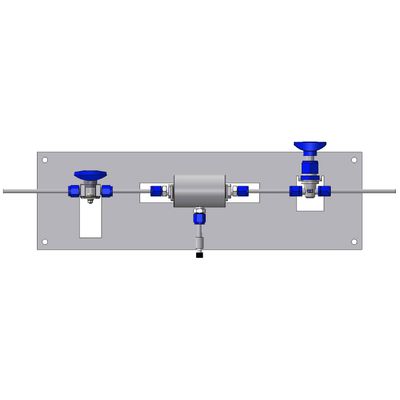

The PSA L225A210 Sampling System is a simple sampling interface for higher particulate concentrations.  The sample pathway is constructed entirely from PTFE and PFA, with Viton seals, providing excellent compatibility with a wide range of sample types, including many corrosive samples. The system features a fast loop filter, perfect for samples with high particulate levels and/or reactive particulate.  The filtration arrangement prevents a build-up of particulate material on the filter. The system also includes a plug valve at the sample inlet and a needle valve to control the bypass flow.
