PacWest Global, LLC products

The MDS-9 Series is a smaller version of the MDS-13.  We can custom build your MDS-9 or MDS-9m with fewer conveyors for a smaller footprint and electrical load. The MDS-9 series was developed for the small to midsize end users including pellet, gasification and farm-related end users requiring a pre-dried biomass product that can be processed on a small to medium-size scale. Other end users include manure, sludge, mineral, food and food waste.

The new MAKO-13 and the MAKO-13m are built using the latest in patented hot element technology. With up to 10 Million BTUs’ of direct heat capability, 1300C/4000 degree instant on with 200C/400 degree surface temperature, the MAKO-13/m can dry coffee AG-crops, sludges, manures and other high-moisture content materials. It’s portable and can be moved to any location where electrical power or a diesel gen-set is available. The dryer is built with ribbed and cross-ribbed heavy inner steel construction and 2″ insulated aluminum or stainless steel exterior panels. Raw wet material is fed via infeed conveyor to the loading station at the entrance and is spread over the conveyor with tines and a distribution and transport system. Up to 3′ of material is heated and turned several times as it makes it’s way through five 18′ conveyors. Wet moisture in vapor form is evaporated and removed through a proprietary 30″ fan system.

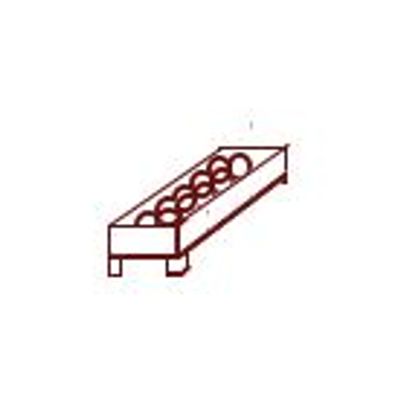

Our compact hot element twin screw conveyor systems are widely being used in industry to pre-dry various feedstocks. Many different kinds of bulk solids can be conveyed through the MDS systems to reduce high percentages of moisture prior to further processing. MDS conveyors are manufactured using either aluminum or stainless steel. The system is totally enclosed for safety and the flexibility of removing the elements when needed. The patented heating elements can produce extremely high temperatures in excess of 1300 degrees C. In line precise temperatures can be controlled with sequential on/off control with a touch screen PLC. Control of the pulsation rates of the elements and VFD control of the conveyor produces precise temperature control through the system.

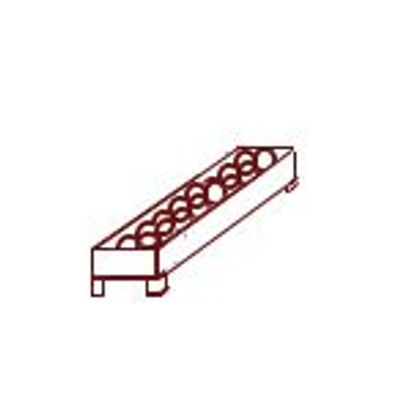

Our large hot element twin screw conveyor systems can be used in industry to pre-dry various feedstocks including gasification and the pellet industry. Many different kinds of bulk solids can be conveyed through the MDS systems to reduce high percentages of moisture prior to further processing. MDS conveyors are manufactured using either aluminum or stainless steel. The system is totally enclosed for safety and the flexibility of removing the elements when needed. The patented heating elements can produce extremely high temperatures in excess of 1300 degrees C. In line precise temperatures can be controlled with sequential on/off control with a touch screen PLC. Control of the pulsation rates of the elements and VFD control of the conveyor produces precise temperature control through the system.

Feed Rate: 1-6 Tons Per Hour. Output Size: 100 – 2000 Microns. Machine Size: 19’ 2” x 17′ 8″’ x 10’ 10″. Footprint: 192sq ft. Weight: 18000lbs. Motors: 300/350, 50, 3, 3/4, 3/4, 1 –  Electric. Power: 146 – 290 kW. Feed Size: Up to 6”. Moisture In: Up to 70%. Moisture Out: Down to 0%.

Feed Rate: 1-4 Tons Per Hour Output Size: 100 – 2000 Microns Machine Size: 18’6” x 15’ x 12’ Footprint: 180sq ft. Weight: 9200lbs Motors: 250, 50, 3, 2, 1, 1 – Electric Power: 130 – 175 kW Feed Size: Up to 6” Moisture In: Up to 70% Moisture Out: Down to 0%

Feed Rate: 1-7 Tons Per Hour. Output Size: 100 – 2000 Microns. Machine Size: 25’7” x 18’ 7″ x 8 10″’. Footprint: 163 sq ft. Weight: 26500lbs. Motors: 350/400, 75, 10, 2, 2, 2 – Electric. Power: 182 – 1344 kW. Feed Size: Up to 6”. Moisture In: Up to 70%. Moisture Out: Down to 0%.

CRI-MAN pumps have a double chopping system and are designed for heavy applications.

This equipment is fit for the solid-liquid separation for agriculture, industry and sewage systems.

This equipment is fit for the solid-liquid separation for agriculture, industry and sewage systems.
