PALBASE Recycling Engineering products

During the grinding process, the hydraulic ram presses the material against the rotor. The rotor is equipped with blades suitably designed for the materials to be recycled. The product’s particle size is determined by the dimension of the sieve holes. The belt drive and the reaction system, absorb shocks during the grinding process, thereby protecting the mechanical elements of the shredder. The forward movement of the piston against the rotor is controlled by the consumption of the motor. Each material to be processed, depending on its makeup, may require a suitable program.

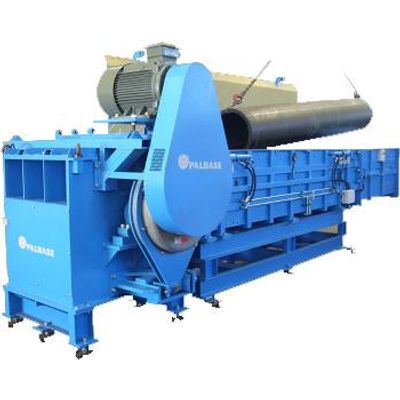

This range of shredders is used for recycling of pipes and thick, large-section profiles.The materials to be recycled are fed in via a loading tunnel with a safety cover.The profiles are hydraulically pressed against the rotor, and the movement of the ram is controlled by the motor’s consumption.The design of the blades, rotor and infeed system, have been optimized to obtain a high-density end product, thanks to the large thickness of shredded material that is obtained.

For some applications, like hollow pieces, it is used a vertical ram, along with the standard horizontal one. The material to be ground is pressed downward by the vertical ram, thereby compressing larger items.

The double shaft shredder allows the processing of a wide variety of materials, dimensions and densities, being suitable for the reduction of bulky products. It is equipped with a large hopper and two shafts, which support the cutting discs, being driven by two independent gear motors. The cutting discs are manufactured in high quality steel and wear resistant. The reduced speed of rotation allows low energy consumption and noise level. The inversion system allows to, in case of excessive load, is automatically activated the temporary inversion of the rotors movement in order to avoid the overloading. As an option, an upper ram can be mounted for processing of bulky parts (bumpers, containers, etc.).

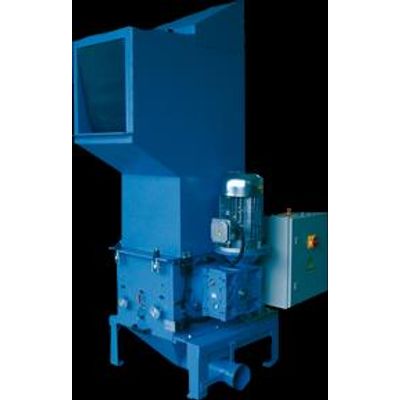

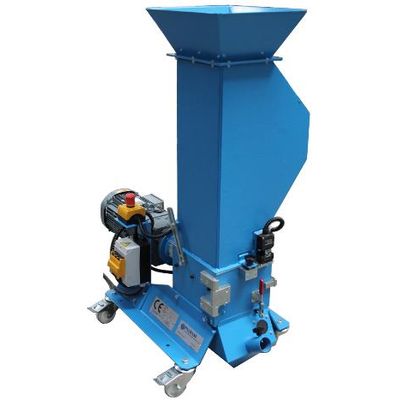

This series of granulators was designed for recycling sprues and small, thin walled parts in a closed loop with the injection molding machine. Its compact frame enables a small amount of space to be taken up. The low rotor speed, and the blade positioning allows for a reduction of dust in the regrind. Quick-release devices enable the granulator to be easily opened for cleaning and maintenance. The design of the cutting system eliminates the need to adjust the blades, thereby allowing them to be quickly replaced.

This series of granulators is intended for recycling plastic materials, such as sprues tops and tails as well as injected parts and packaging. The rotor, with staggered knives and low speed, promotes low noise reduced energy consumption and dust in the regrind.

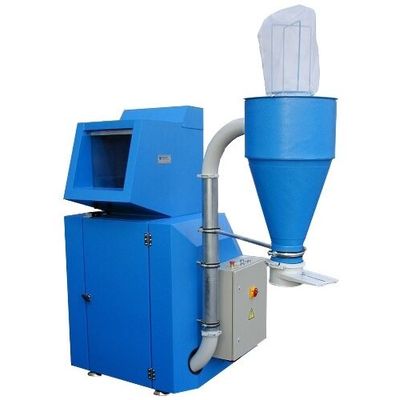

The XRT range, designed for general applications, is used as a central granulator or close to the machine. Its sturdiness ensures a long life in recycling plastic materials obtained by injection, blow molding and extrusion. The scissor cutting system reduces the production of dust as well as energy consumption. A jig for adjustment of the knives outside the granulator ensures precision in the gap between knives, while allowing them to be quickly and easily replaced. A wide range of options makes this series of granulator very versatile.

This range of granulators is designed specifically to size reduce extruded profiles up to 6 meter long. The horizontal opening allows ergonomic feeding and profiles are automatically by the rotor. Short length profiles can be fed manually or with belt conveyor to a top mounted hopper. Its compact design, including the soundproofed version, enables the equipment to be installed in the production area.

The XRT range, designed for general applications, is used as a central granulator or beside the press. Its sturdiness ensures a long life in recycling plastic materials obtained by injection, blow molding and extrusion. The scissor cutting system reduces the production of dust as well as energy consumption. A jig for adjustment of the knives outside the granulator ensures precision in the gap between knives, while allowing them to be quickly and easily replaced. A wide range of options makes this series of granulator very versatile.

The guillotines are used for size reduction of products to enable feeding to grinding equipments. Typical applications are: rolls of film, purges, bales, etc. A range of accessories equipments, like loading and unloading belts conveyors, complement the recycling systems.
