PalmSens BV products

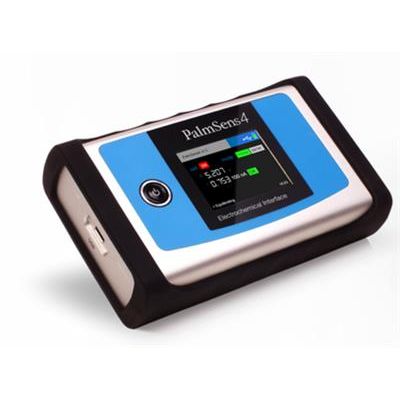

Our flagship instrument, the PalmSens4, is a USB and battery powered Potentiostat, Galvanostat, and optional a Frequency Response Analyser (FRA) for Electrochemical Impedance Spectroscopy (EIS). The PalmSens4 has a large potential range (-5V to 5V or -10V to 10V) and current range (100 pA to 10 mA) with a high resolution and low noise. The economical PalmSens4 is a complete laboratory instrument but its compact and rugged design makes it also ideal for field work.

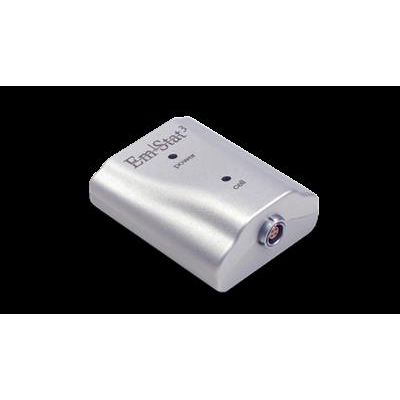

EmStat is a small and low cost potentiostat with research grade capabilities. It has eight current ranges from 1 nA to 100 mA (EmStat3+) full scale, with a minimum resolution of 1 pA. It provides the most relevant electroanalytical measurement techniques. Its price makes it a popular choice for educational purposes. The EmStat USB powered potentiostats are the smallest research grade electrochemical interfaces available on the market. The devices are general purpose potentiostats but are also highly suitable for embedded use in applications.

EmStat Blue is a small USB and battery powered potentiostat with integrated Bluetooth. It is ideal for mobile sensor applications. EmStat Blue is a small and low cost potentiostat with research grade capabilities. It has eight current ranges from 1 nA to 100 mA (EmStat3+ Blue) full scale, with a minimum resolution of 1 pA. It provides the most relevant electroanalytical measurement techniques and is used with the PSTrace software or with PStouch for Android.

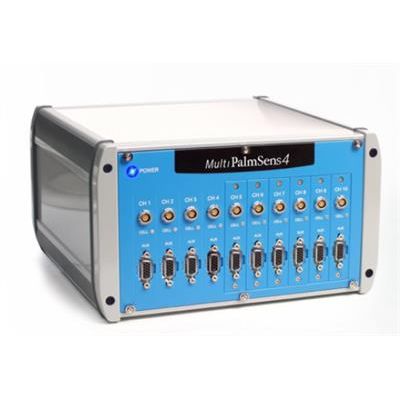

The MultiPalmSens4 is a flexible multi-channel potentiostat, galvanostat and impedance analyzer which you can fully tailor to your requirements and budget. The MultiTrace software allows for using each channel individually or simultaneously or running a sequence of automated tasks on each channel. Each channel provides an additional auxiliary port for controlling peripherals or monitoring temperature or other analog signals.

The MultiEmStat is a versatile multi-channel potentiostat with 4, 8 or 12 independent EmStat potentiostats. The channels can perform experiments independently of each other. The MultiEmStat is conveniently connected by means of a single USB connection and controlled by MultiTrace. Each potentiostat has eight (EmStat3) or nine (EmStat3+) current ranges: 1 nA to 10 mA/100 mA with a resolution of 1 pA at the lowest current range and can automatically select the optimal current range. Our multi-channel potentiostats are designed for the most demanding users who want quality and high productivity without compromising on cost.

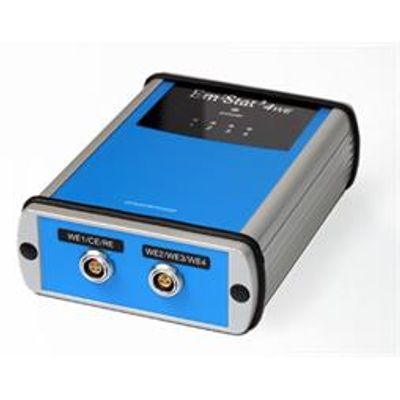

A polypotentiostat with 4 working electrodes, that makes parallel measuring of multiple electrodes in one electrochemical cell possible. With this polypotentiostat one electrochemical cell can be equipped with 1, 2, 3 or 4 working electrodes and all of these will be measured parallel. The EmStat3 4WE consists of a standard EmStat3 potentiostat and additionally three polypotentiostat (bipotentiostat-like) modules. All techniques supported by EmStat3 are available for the EmStat3 4WE.

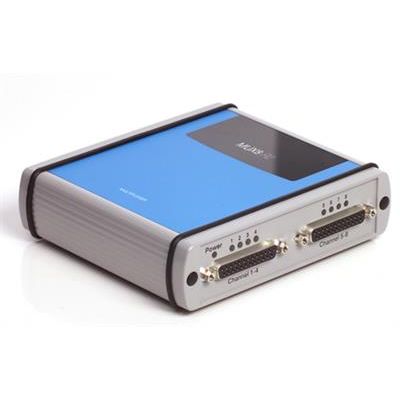

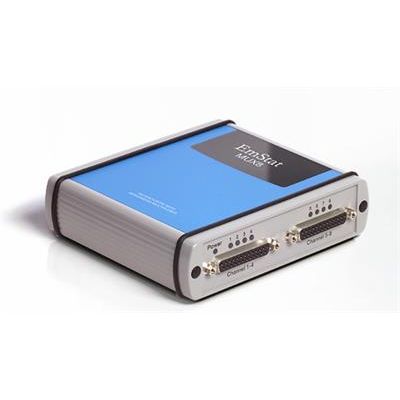

The EmStat can be combined with a multiplexer forming one integrated instrument to perform measurements with multiple electrode systems. With the MUX8-R2 connecting arrays or other setups made of up to eight working electrodes in two or three electrode cell types is possible. If more channels are required, one or more MUX-R2 can be stacked to the EmStatMUX to add up to 128 channels.

To complete your setup, we can offer you cables for connecting your electrodes or combining multiple MUX8 devices to increase the number of channels (daisy chain).

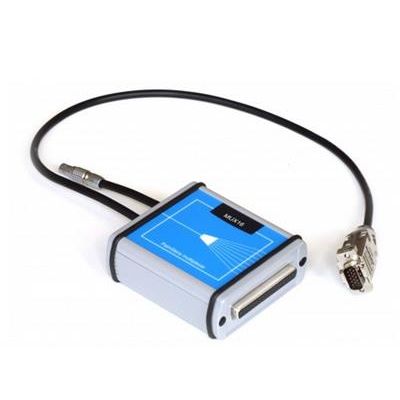

This multiplexer allows the usage of a single PalmSens or EmStat Blue with up to 16 electrochemical cells, by switching between the different cells. A great way to raise efficiency.
