Pantreon GmbH products
Products

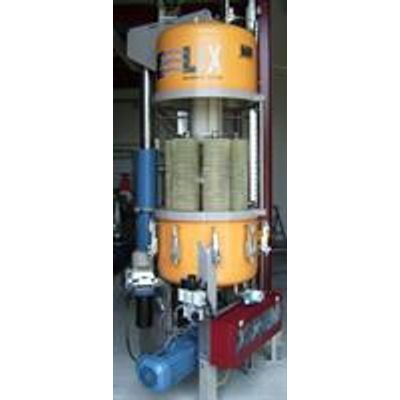

Zelix - Membrane System for Lab Test

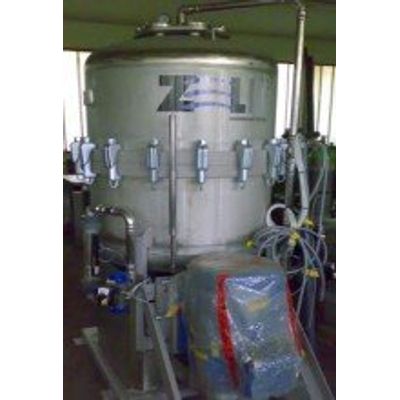

Zelix - Membrane System for Water Treatment
1 rotor ring. 1–25m² filter area.

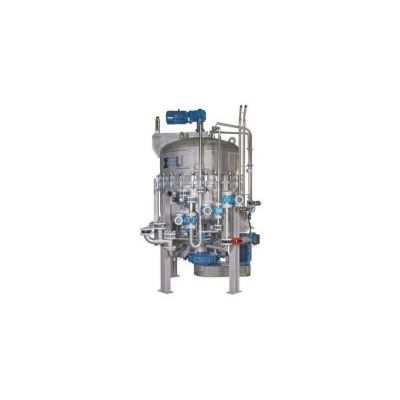

Zelix - Membrane Filtration System
2 rotor rings. 33-70m² filter area.
Zelix - Membrane Filtration System
3 rotor rings. 90-130m² filter area.
Technology
Zelix - Electrokinetic Membrane System
ZELIX MEMBRANe.KINETICS 1 - ELECTRO KINETICS: the use of ZELIX flow technology as electrodes for the construction of high-voltage fields with the dynamically rotating filter modules as counter electrodes offers a unique activation of interfaces - unique and innovative, especially in connection with the mechanical separation effect of the membranes directly at the phase boundaries. With the strengthening influence of electrical charge on the hydrophobic and colloidal properties, ZELIX MEMBRANe.KINETICS also shows positive effects in concentrates AFTER processes with (e.g. through oxidation) denatured molecules.
ZELIX Basics

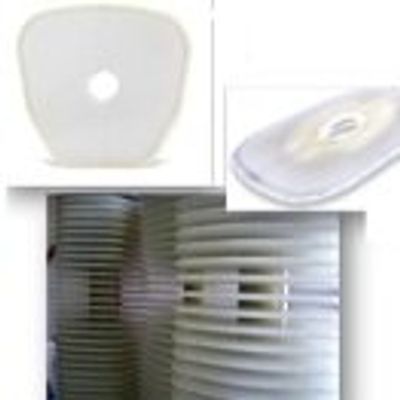

Zelix - Zelix Filter Technology
Increases the filter area by 40 % through trapezoid disc design and increased number of discs. . Increases the performance of membranes. . Has optimized hydrodynamic design. . Reduces the mechanical stress. . Reduces the energy consumption.

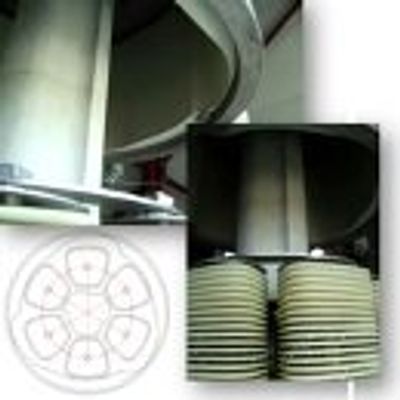

Zelix - Flow Control System for Membrane Filters
Increases the dynamics of turbulent flow on the membranes. Directs + focuses the turbulent flow to the filter modules and reduces dynamic loss off the membranes. Reduces the energy consumption and the mechanical stress on substances

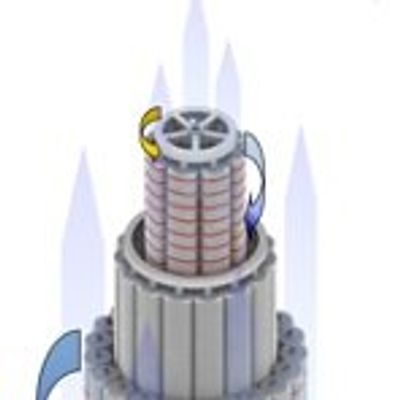

Zelix - Rotation Technology for Filtration System
By segmentation of the filter area into smaller modules the rotation speeds and rotation directions can be adapted over the rotor radii in ZELIX membrane system. The principle of dynamic balance makes possible uniform flow conditions over the entire filter surface.

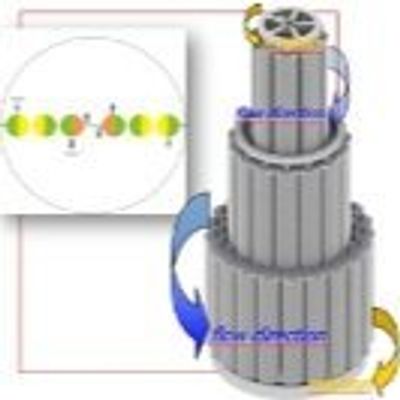

Zelix - Filtration Flow Technology
The selected INCLINATION of filter discs in adjacent filter modules, fixed on rotating ring(s), results in turbulent flow with strong VERTICAL direction - over the complete membrane surfaces even in installations with large filter area. HELIX4D leads to extensive exchange of concentrations, even in high viscous fluids and substance content.
