Paragon Pump Company products

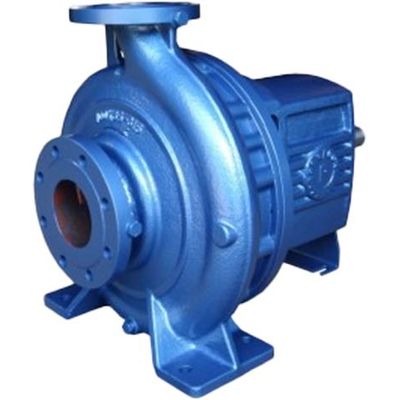

The PA Series Pump is a single stage, back pull-out, end-suction centrifugal pump. It is available in 41 sizes, from 2x1.25-5 (50x32-130) to 12x10-16 (300x250-400) for heads up to 690 feet and flows to 5300 GPM. The Paragon PA Series pumps can be used for the following services in the Commercial, Residential, Agricultural, Industrial, Process, Petroleum and Food & Beverage industries.

The PA Series Fire Pump is specifically designed and ruggedly constructed to meet the requirements of the Fire Protection Industry. These pumps are built to International Standard DIN 24255 and tested to AS 2941-2008 widh Fire Safety Products (FSP) Certification under SETSCO Certification Body of Singapore.Paragon Centrifugal End Suction Back Pull Out Fire Pumpoffers a complete range of PA Series of pumps for vital role of protecting life & property in Fire Protection industry.

The PS Series is a double suction, horizontal, split case centrifugal pump available in 46 sizes from 5x3-8 (125x80-210) to 36x36-31 (900x900-780) for heads up to 656 feet (200 m) and flows up to 80,000 GPM (18,000 m3/hr.). The PS Series has a maximum operating pressure of 435 PSI (30 bar) and a maximum operating temperature of 221° F (105° C). The Paragon PS Series pumps are used for air conditioning, cooling towers, irrigation and drainage pumping stations, power stations, industrial water supply systems and fire fighting applications.

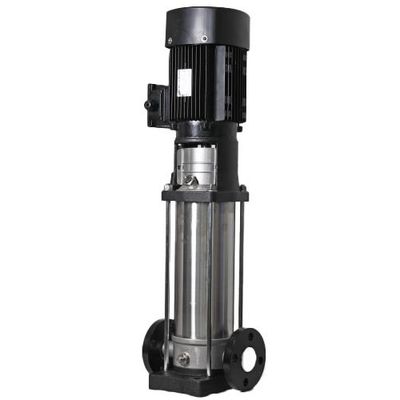

The PV Series is a stainless steel vertical multistage pump available in eight sizes with up to 26 stages. These pumps are suitable for clean water or liquids. They are widely used for high buildings, plants, mining, city water supply systems and irrigation.

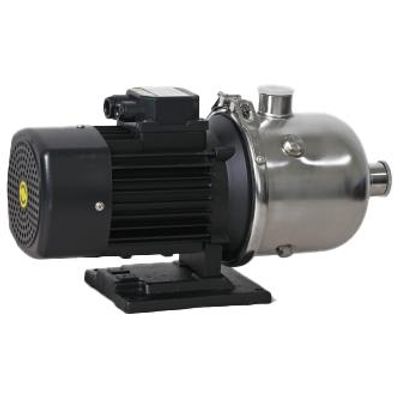

The PM Series pumps are horizontal multistage stainless steel pumps available in four sizes up to 6 stages.  These pumps, used for clean water or liquids of which chemical and physical characteristics are similar to those of water, are widely used for high buildings, general industrial, circulation water supply systems, etc.

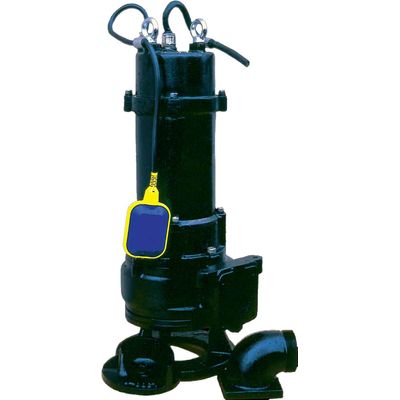

CP Submersible Sewage Pumps are designed for economical and reliable pumping of sewage water from commercial, residential and industrial sources. They are suitable for pumping clear and waste water containing solid and fibrous material. Used in conjunction with the automatic coupling system, the below ground level wet installation is a particularly economical solution which also does not damage the environment. These pumps are also suitable for quick portable applications.

SP Submersible Sewage Pumps are mainly used to pump waste, sewage and mud with solids for municipal, industrial waste-treatment plants and dewatering at construction sites. They exhibit excellent performance due to an impeller with a single or double blockage-free vane, which avoids jamming and clogging. They are very convenient to install; a quick disconnect, portable version of this pump is available. A fully automatic control system for protection and signal output is available for easy central monitoring, making this pump convenient to control. These pumps have excellent reliability, with functions of leakage monitoring, overheating protection and overload protection, etc.

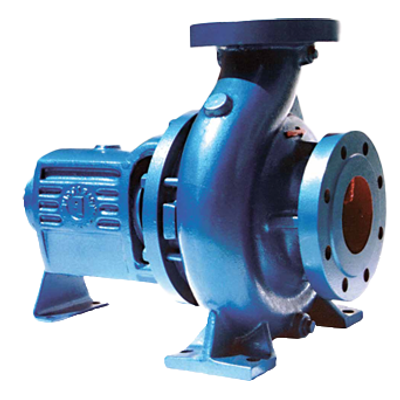

PAZ single stage close coupled centrifugal pump with performance and dimensions in accordance with DIN24255 standard, horizontal installation. The back-pull-out construction allows the pump to be disassembled without disturbing the suction and discharge pipework.

The PBS series submersible borehole pump is mainly used for raw clean water supply and is ideally suited for:

The P-ISO Series Pump is a single stage, back pull-out, end-suction centrifugal pump.
