Paroscientific, Inc. products

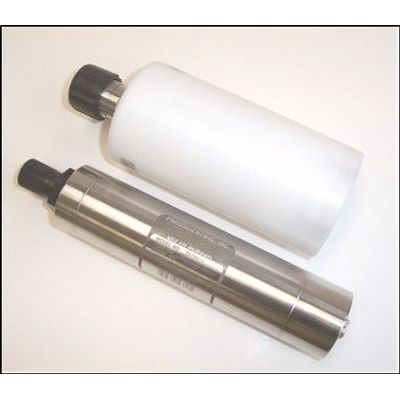

Digiquartz® Transducers are incorporated into submersible housings as depth sensors. All depth sensor ranges are available with either frequency outputs or integral intelligent electronics with bi-directional digital communications. Typical application accuracy is better than 0.01% with parts-per-billion resolution, low power consumption, and excellent long-term stability.

Paroscientific Intelligent Transmitters consist of a Digiquartz® Pressure Transducer and a digital interface board in an integral package. Commands and data requests are sent via two-way RS-232 or RS-485 serial interfaces. Direct digital outputs in engineering units are provided with parts-perbillion resolution using the built-in, anti-aliasing IIR filter mode. Typical accuracy is 0.01% even under harsh environmental conditions. All intelligent transmitters are preprogrammed with calibration coefficients for full plug-in interchangeability.

The Model 715 displays pressure and temperature data from all Paroscientific Intelligent transmitters that have Dual RS-232 and RS-485 interfaces. The two-line, 16 character, alphanumeric, backlit, liquid crystal display is user configurable with included software. Display functions include pressure and temperature values with engineering units, overpressure warning, tare indicator, user defined text messages, and a horizontal analog bar graph showing percentage of full-scale pressure. The Model 715 Display will respond to display commands from the transmitter, a computer, or other serial host on either the RS-232 or RS-485 port. For stand-alone operation, it displays data whenever power is applied to the transmitter.

The Model 745 Portable Transfer Standards provide the highest accuracy pressure measurements for laboratory and metrological applications. Digiquartz® Transducers cover 26 absolute and gauge pressure ranges up to 40,000 psi (276 MPa) with unsurpassed accuracy, reliability and stability. The simple, intuitive front-panel user interface and versatile functionality with the rearpanel RS-232 computer interface make the Model 745 the best choice for high performance pressure calibrations.

The Model 765 Transfer Standards provide the highest accuracy pressure measurements for portable field applications. The integral Digiquartz® Transducers cover absolute pressure ranges up to 40,000 psi (276 MPa) and gauge pressure ranges up to 200 psig (1.38 MPa).
