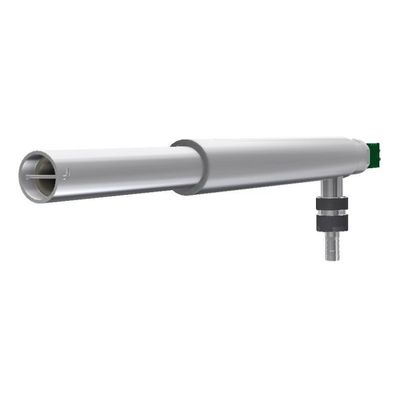

Water cooled suction pyrometer for bayonet socket Ø 50 mm. Water cooled suction pyrometer for bayonet socket for different ceramic shields (VDI, IFRF). Can be used for temperatures up to 1600 °C. For the manually and discontinously determination of the temperature in the fire chamber (like demanded for the singularly test at chamber installations according to the emission act) is only interesting the convective part of the heat and not the radiation-heat. Suction pyrometer can use for such determination.

Pyrometer cannot be cooled with water.  The suction takes place vertically to the gas flow.

Outer jacket can be cooled with water, for use in temperatures > 700 °C, with cooling quenching and subsequent heated gas line.

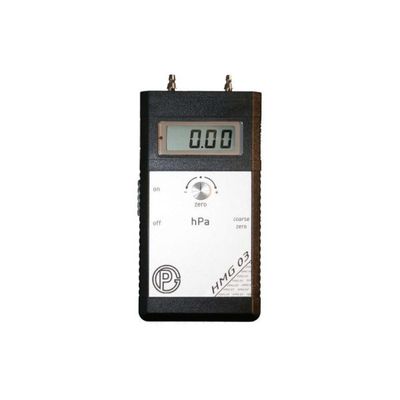

Hand-held instrument with indication of the difference pressure with precision pressure transmitter, low drift during temperature change. For the measurement with Pitot tube. Besides differential pressure, the hand-pressure instrument can also measure positive and negative pressure.

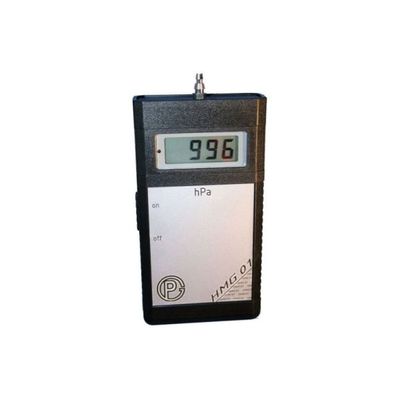

Hand-held instrument with indication of the absolute pressure. To measure the absolute pressure in the duct and ambient air condition.

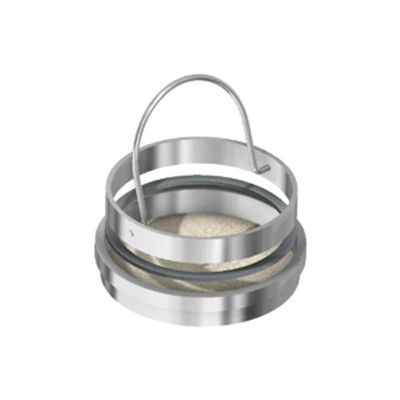

Parts for filter devices:glass and quartz fiber filter, seals, transport glasses, catridges etc.

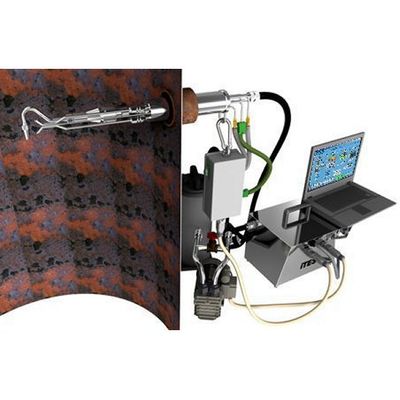

Application area: Standard according to VDI 2066, EN 13284-1, EPA 5, ISO 9096. Information: click on the litte image on the right or here: Schematic sketch - IN-Stack.
