Pauselli s.r.l. products

The Pauselli pile driving machine can be equipped with different types of impact heads for pile insertion. On request, the company Pauselli designs and manufactures impact heads for any type of pile.

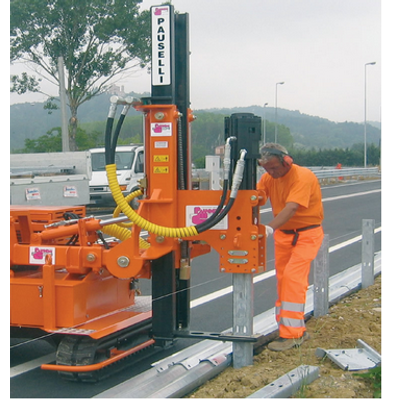

Pile driver mod. 400 is a small and compact machine, easy to be transported. The lightweight of the machine allows transport by a simple trailer. The column is hydraulically positioned on the ground, assuring an excellent stability during the pile extraction. The pile driving machine is specifically designed for maintenance work and for guard rail installation in restricted and narrow areas. It is also ideal for the installation of piles for solar panels structures and for the installation of anchoring screws for foundations and photovoltaic panels. The machine has a very good quality-price relation.

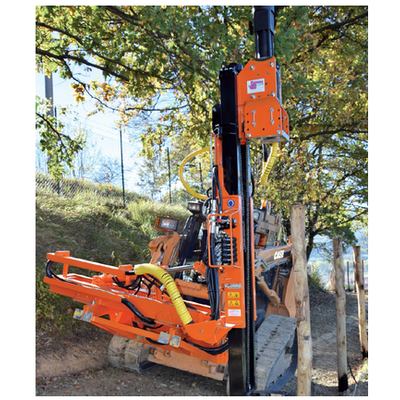

Pile driver machine Mod. 700 is stable, compact and quick in its movements, specially designed for road safety barriers installation. The machine can be used also for wooden piles and photovoltaic installation. Pile driving machine mod.700 standard can install piles of a maximum height of 3 meters. On request the machine can be supplied with an extension column, in order to install piles up to 3.50 meters. Pauselli pile driving machine for fences has been designed to work on soils with deep slopes. It is equipped with a predrilling system that make easier the installing of wooden piles into the ground.

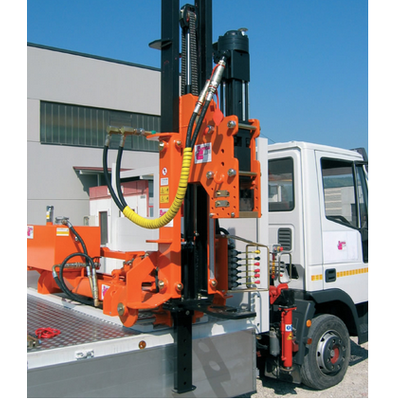

Pile driving equipment on truck 300 B is mounted on a flange type DIN. it can be easily mounted on trucks were a plate supporting the equipment is applied on the front side or on tractors, Dumpers, etc... The pile driver equipment is especially designed for road barriers fixing and maintenance. It is used to install iron or wooden piles for any kind of fences, for wineyards and for fruityards etc...

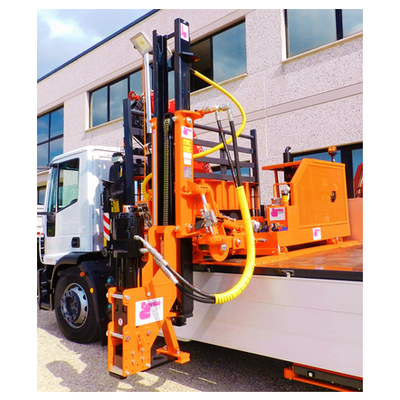

Pile driving equipment on truck mod. 500 B is specially designed for road maintenance works, it is easy to install on every type of truck. The Pile driver equipment must be hydraulically feeded by the PTO circuit of the truck. The ability to insert the pile throughout its entire length depends on the distance between the lorry platform and the ground. The size of the pile driving equipment can be customised.

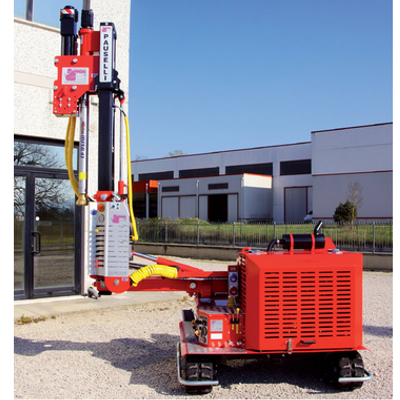

Pile driving machine mod 500 SX can be easily installed on every kind of truck. it is designed for any kind of road maintenance work, it is supplied with an independent hydraulic system. It is not necessary to feed the equipment by the PTO circuit of the truck. The ability to insert the pile throughout its entire length depends on the distance between the lorry platform and the ground. The size of the pile driving equipment can be customised.

Pile driving Mod 900 is a machine of large dimension. It has been realized to work in very hard soils. it has been realized to work in very hard soils. The machine can assure an excellent stability and quickness in installing piles of large dimension. The standard model has a double extension column and can install piles of a maximum height of 4 mt. On request, it is very easy to apply on the standard pile driver double extension column with double positioning of the hammer holder, in order to install piles of a maximum height of 4.6 meters.

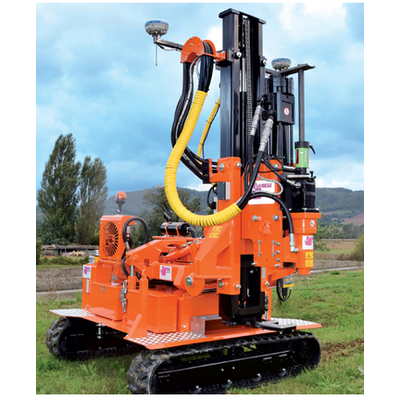

The Stonex STX-Suite GPS System allows accurate and rapid installation of posts and piles for photovoltaic parks and vineyards, without the cost of topographical surveying. The equipment consists of two GPS receivers on the pile-driving machine, one on a tripod and a tablet with integrated software. The Stonex application allows the operator to prepare the project in the office or out on the field and view it on the tablet.

The PauselM pile-driving machine can be equipped with a test system to perform static tests on the driven piles. This system has been designed to allow guard rail installers to check the hold of roadside and viaduct barriers with extreme ease. It can also be used to check the hold of structural photovoltaic piles. The test results can be printed immediately, saved to a USB drive or sent by email for real-time monitoring directly from the office. In the pile-driving machines with GPS system installed, more complete reports show the exact position coordinates of the test.

The Downhole Drill Equipment is a special equipment that can be applied on the Self Propelled Pile driving machine for the drilling of road pavement in every hard condition. The Downhole drill hammer drills every kind of soil, reinforced concrete, rock and granite.
