PCB Piezotronics, Inc. products

Model: 320C03. Sensitivity: (±10%)10 mV/g. Measurement Range: ±500 g pk. Broadband Resolution: (1 to 10000 Hz)0.003 g rms. Frequency Range: (±5%)1 to 6000 Hz. Sensing Element: Quartz.

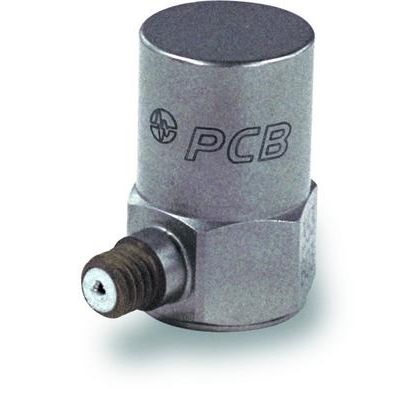

ESS high sensitivity, quartz shear ICP® accel., 100 mV/g, 1 to 4k Hz, 10-32 side conn., to +325 F/+163 C. Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²)). Measurement Range: ±50 g pk (±490 m/s² pk). Broadband Resolution: 0.0003 g rms (0.003 m/s² rms). Frequency Range: (±5%)1 to 4000 Hz. Sensing Element: Quartz. Weight: 0.7 oz (20 gm).

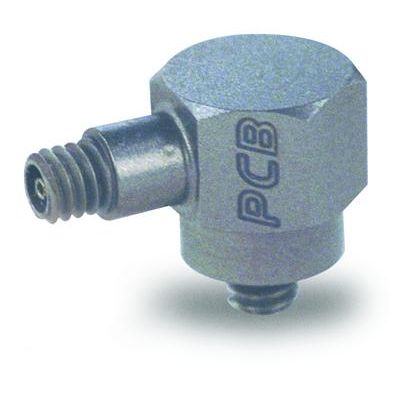

ESS mini (2 gm), quartz shear ICP® accel., 10 mV/g, 2 to 10k Hz, 5-44 side conn., 5-40 mtg stud, to +325 F/+163 C. Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²)). Measurement Range: ±500 g pk (±4900 m/s² pk). Broadband Resolution: 0.005 g rms (0.05 m/s² rms). Frequency Range: (±5%)1.0 to 10000 Hz. Sensing Element: Quartz. Weight: 0.07 oz (2.0 gm).

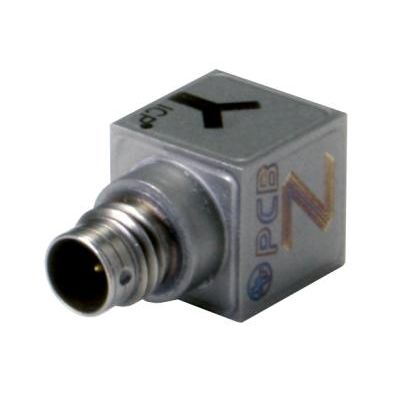

Triaxial ICP® accelerometer, 10 mV/g, 500 g, 1/4-28 4-pin connector, Adhesive mount, TEDS 1.0, Temp. to +325 °F. Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²)). Measurement Range: ±500 g pk (±4905 m/s² pk). Frequency Range: (+/-10%)0.4 to 10000 Hz. Electrical Connector: 1/4-28 4-Pin.

Triaxial ICP® accelerometer, 50 mV/g, 100 g, 1/4-28 4-pin connector, Adhesive mount, TEDS 1.0, Temp. to +325 °F. Sensitivity: (±10%)50 mV/g (5.1 mV/(m/s²)). Measurement Range: ±100 g pk (±981 m/s² pk). Frequency Range: (+/-10%)0.4 to 10000 Hz. Electrical Connector: 1/4-28 4-Pin.

UHT-12™, Charge output accel, high temp to +900 F, 0.53 pC/g, 5000 g, to 6k Hz, 10-32 side conn, 5-40 thread mount, case isolated. Sensitivity: (±10%).53 pC/g (.054 pC/(m/s²)). Measurement Range: ±5000 g pk (±49050 m/s² pk). Frequency Range: (±10%)10 kHz (10 kHz). Weight: .31 oz (8.7 gm).

UHT-12™, Charge output accel, high temp to +1200 F, 1 pC/g, 1000 g, 0.46 inch cube, stud mount, with screw tabs, to 10k Hz, case isolated. Sensitivity: (±10%)1.15 pC/g (.117 pC/(m/s²)). Measurement Range: ±1000 g pk (±9800 m/s² pk). Frequency Range: (±10%)10 kHz. Cable Termination: 10-32 Coaxial Jack. Weight: .54 oz (15 gm).

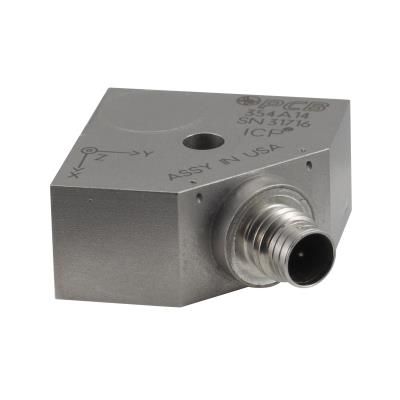

Cryogenic Triaxial Accelerometer,10 mV/g, -320 to +250 F, case isolated.1 Hz to 10 kHz, 1/4-28 4-pin connector. Newly launched Triaxial Cryogenic Accelerometer. Sensitivity: (±10%)10.0 mV/g (1.02 mV/(m/s²)). Measurement Range: ±500 g pk (±4905 m/s² pk). Electrical Connector: 1/4-28 4-Pin.

Cryogenic, quartz shear ICP® accel., 10 mV/g, 1 to 6k Hz, 10-32 side conn. (-320 to +250F/-196 to +121C). Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²)). Measurement Range: ±150 g pk (±1472 m/s² pk). Broadband Resolution: 0.01 g rms (0.1 m/s² rms). Frequency Range: (±5%)1 to 6000 Hz. Sensing Element: Quartz. Weight: 0.33 oz (9.4 gm).

At PCB, we don`t just know the sensor business; we pioneered ICP® technology. For over 50 years, every sensor design and assembly is subjected to tight in-house inspection and quality control. That`s why we have impeccable product performance and longevity. And that`s what our customers expect from every PCB® sensor.
