Pelican Worldwide B.V. products

1 1/2` BSP male inlet. Pressure gauge connection and TIR facility to handle. 316 SS with PTFE seals. Weight 2 kg. Test Pressure 12,5 Bar (180 PSI). Design Pressure MAWP 6.9 Bar (100 PSI). Design Temperature 190°C (374°F).

2" BSP male inlet. Pressure gauge connection and TIR facility to handle. 316 SS with PTFE seals. Weight 2 kg. Test Pressure 12,5 Bar (180 PSI). Design Pressure MAWP 6.9 Bar (100 PSI). Design Temperature 190°C (374°F). This product (Airmaster 2 " BSP) is directly available from stock.

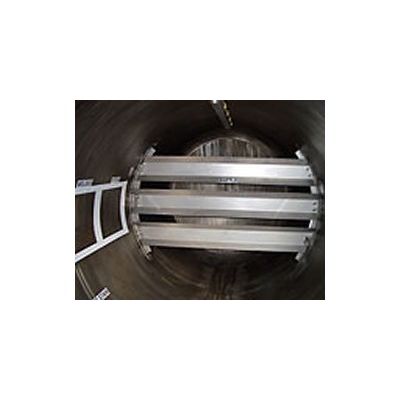

Baffle set 3 omega profiles horizontal. Other specifications (material, sizes and/or colours) available on request at minimum quantities. Other specifications (material, sizes and/or colours) available on request at minimum quantities.

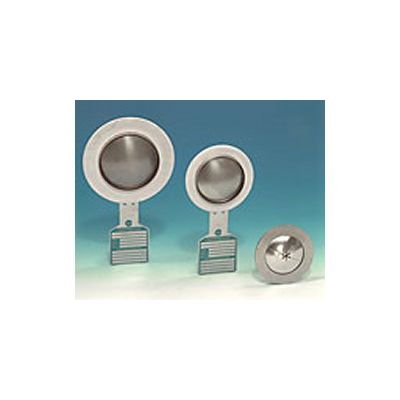

2 1/2 `/65mm - 2.69 bar. Other sizes and pressures available on request.

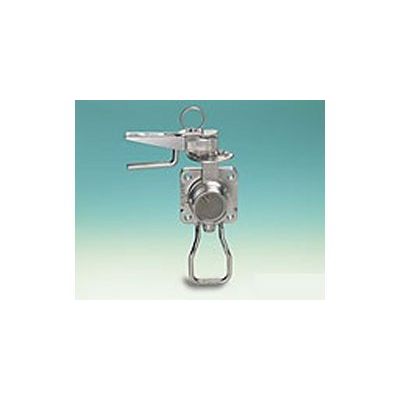

2` BSP Male inlet. Presure gauge connection, gauge and TIR facility to handle. 316 SS with PTFE seals. Weight 2.2 kg. Test Pressure 12.5 Bar (180 PSI). Design Pressure MAPW 6.9 Bar (100 PSI). Design Temperature 190ºC ( 374ºF). This product (Flymaster 2 " BSP Thread) is directly available from stock.

2` Inlet flange, slotted to suit 2` BSTD minimum. Presure gauge connection, guard and TIR facility to handle. 316 SS with PTFE seals.  Weight 4.6 kg.  Test Pressure 12.5 Bar (180 PSI).  Design Pressure MAPW 6.9 Bar (100 PSI).  Design Temperature 190ºC ( 374ºF). This product (Flymaster 2 " Flanged) is directly available from stock.

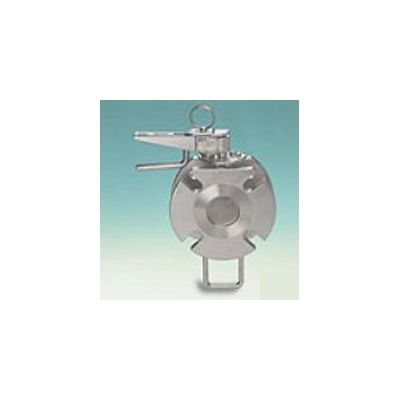

Designed to clamp between two flanges or directly onto the pipework. Left hand operation with TIR to handle and lug to outlet flange for pivot assembly. 316 SS with PTFE seals. Weight 2.5 kg. Test Pressure 10 Bar (145 PSI). Design Pressure MAPW 6 Bar (87 PSI). Design Temperature 190ºC ( 374ºF). This product (Flymaster 3 " Clamped) is directly available from stock.

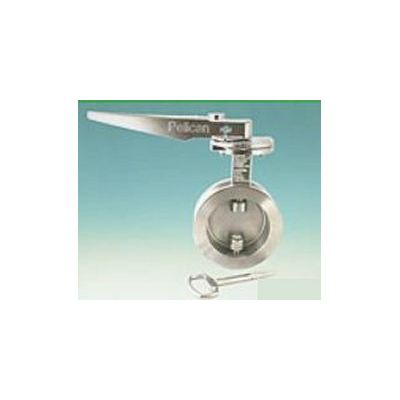

Designed to clamp between two flanges or directly onto the pipework. Lockable handle with TIR and `emergency shut off` as standard. 316 SS with PTFE seals. Weight 2.5 kg. Test Pressure 10 Bar (145 PSI). Design Pressure MAPW 6 Bar (87 PSI). Design Temperature 190ºC ( 374ºF). This product (Flymaster 3 " Clamped Lockable Handle) is directly available from stock.

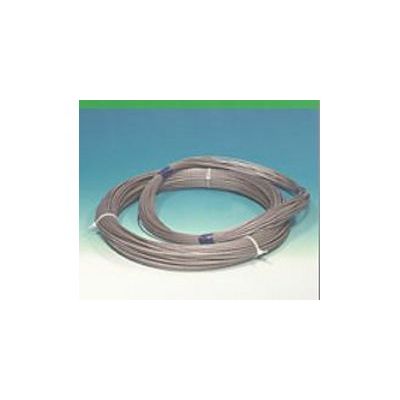

Cable 2mm (length 50m). This product (Stainless Steel) is directly available from stock.

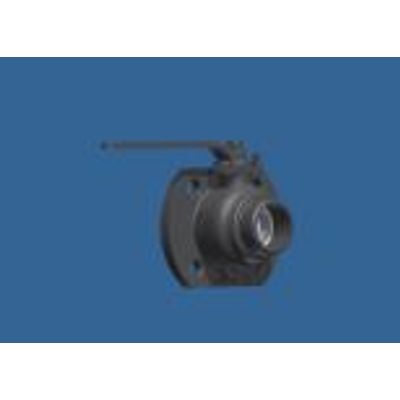

Wall thickness Sanitary Ball Valve Flanged of outlets available in DIN, SMS, ISO, 3A. SS316L on request.
