Pelmar Engineering Ltd. products

Year of Manufacture: 1960, Renovated in 2010. For Producing: Rubber Sheets, Line Dimension (LXW): Approx. 21 X 2.6 m, Line Speed: 3 - 30 m / min, Calender Roll Size: 500 ϕ X1250 mm,configuration: Inverted `L`,Bearings: Bush Type Roll Type: Drilled,Nip Adjustment: Motorized,Max. Product Width: 1200 mm, On Windup: 1100 mm,Width Adjustment: By Pneumatic Bronze Cutting Knife, Max. Product Thickness: 7 mm, extended to 10 mm by doubling,Max. Dia of Winded product: 800 mm, Cooling Water temperature: 10˚,Max. Heating temperature: 120˚,Nr. of Cooling Drums: 5,Windup Station: Included, Motor: DC, Rade Koncar, GearBox: Litostroj, 185 KW, Transmission: 1 Gearbox + 3 Cardan Shafts Friction: Top/Middle Rolls: 1:1.29, Middle/Low Rolls: 1:1, Line Auxiliary Power Supply: Conveyors: 3 KW, Cooling Unit: 3.6 KW,Winding device: 1.5 kW, Steam Consumption: 129 Kg/Hr, Water Consumption: 75 m3/Hr, Controls: Available, Allen Bradley, TCU: Allen Bradley SLC 500,Electricals: Available.

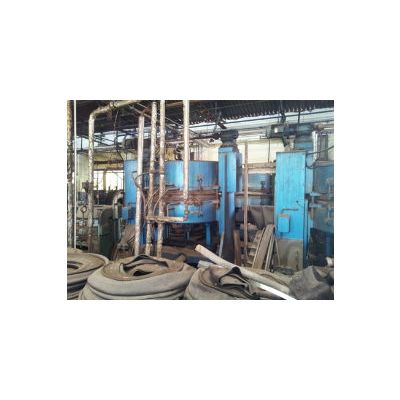

Year of Manufacturer: 1973. Type: MA4L / MR4. Tire Sizes: 8.25 - 20 to 12.00-20. Steam Consumption: 20 Kg/hr. Power Supply: 47 KW,
Max. Air Pressure:  18 Atm. Max. Steam Pressure: Max 6 Atm. Automation: Semi-Automatic. Dimension: 2130 X 2000X 2600 mm. Opening/Closing: Hydraulic. Equipped with Penuamtic loading/unloading system.
