Penguin Pumps Pvt. Ltd. products

Residence, Small Farms, Nurseries, Hotels, Small Industries, Gardens & Fountains.

Power range : 0.37 kw to 2.2 kw - Single Phase. & 0.75 kw to 3.7 kw - Three Phase. Speed : 2780 RPM. Version : A.C. Single Phase, 190-230 V. 50 Hz Capacitor Start & Run [CSCR], A.C. Three Phase, 350-440 V. 50 Hz Direct on Line [DOL]. Type of Duty : S1 [Continuous]. Flow Rate upto : 0.20 to 7.0 Lps. Head Range upto : 7 to 335mt., 23 to 1100 ft. Nominal Outlet Size : 25, 32, 40, 50, & 65 mm. Maximum Liquid-Temperature : 33` C.

Power range : 0.37 kw to 2.2 kw - Single Phase, 0.75 kw to 15 kw - Three Phase. Speed : 2850 RPM. Version : A.C. Single Phase, 190-230 V. 50 Hz Capacitor Start & Run [CSCR], A.C. Three Phase, 350-440 V. 50 Hz Direct on Line [DOL] Upto 5.5 kw, Star Delta [SD] Upto 20 kw. Type of Duty : S1 [Continuous]. Flow Rate upto : 20.0 Lps. Head Range upto : 162 mt. / 530 ft. Nominal Outlet Size : 25, 32, 40, 50, 65, 80, 100 mm. Maximum Liquid-Temperature : 33` C.

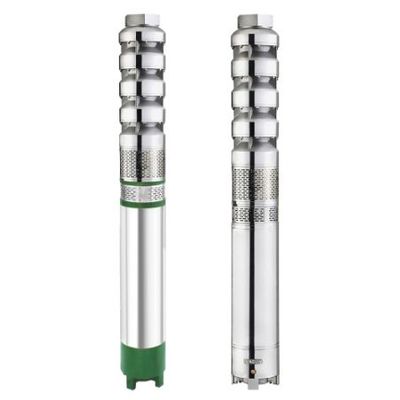

Penguin Full SS series Pumps are made completely of Cr Ni Stainless Steel AISI-304 Investment Cast, has developed by the way of high monopolize technology and unique design concept in the case of using solid stainless steel material for excellent corrosion resistance, provides superior durability, Sustainable flawless performance for years and ensures highest wear and tear resistance. The unique design and superior material construction that will outperform ordinary fabricated stainless steel pumps for all kind of water pumping requirements.

Power range : 2.2 kw to 20 kw - Three Phase. Speed : 2880 RPM. Version : A.C. Three Phase, 350-440 V. 50 Hz Direct on Line [DOL] Upto 5.5 kw, Star Delta [SD] Upto 20 kw. Type of Duty : S1 [Continuous]. Flow Rate upto : 1.0 to 22.5 Lps. Head Range upto : 9.0 to 458 mt., 30.0 to 1500 ft. Nominal Outlet Size : 50, 65 & 80mm. Maximum Liquid-Temperature : 33` C.

Power range : 5.5 to 45 kw - Three Phase. Speed : 2880 RPM. Version : A.C. Three Phase, 350-440 V. 50 Hz Star Delta [SD] 7.5 h.p. 20 kw. Type of Duty : S1 [Continuous]. Flow Rate upto : 5.0 to 44.0 Lps. Head Range upto : 13.0to 252 mt., 42.0 to 826 ft. Nominal Outlet Size : 100mm. Maximum Liquid-Temperature : 33` C

Power range : 3.7 kw to 45 kw - Three Phase. Speed : 2880 RPM. Version : A.C. Three Phase, 350-440 V. 50 Hz Star Delta [SD] 7.5 h.p. 20 kw. Type of Duty : S1 [Continuous]. Flow Rate upto : 1.0 to 22.5 Lps. Head Range upto : 9.0 to 458 mt., 30.0 to 1500 ft. Nominal Outlet Size : 65 & 80mm. Maximum Liquid-Temperature : 33` C.
