The Centronic Series 5T detectors offer high blue sensitivity coupled with high shunt resistance and low dark leakage current. They are particularly suited to low light level applications from 430-900 nm where the highest signal to noise ratio is important. They may be operated photovoltaically or with a reverse bias of up to 12V where lower capacitance is needed. The 5T range provides the most economic solution for all applications where high speed of response above 800 nm is not critical.

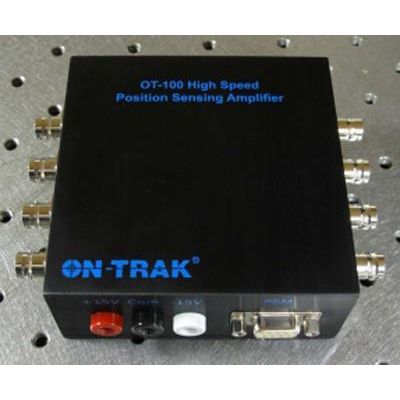

The OT-100 High Speed Position Sensing Module contains a fully packaged SiTek Electro Optics Signal Processing Circuit (SPC) in a convenient and durable package. The OT-100 is designed to output bipolar voltages representing the position and intensity of a light spot on the PSD at bandwidths of up to 400 kHz. BNC outputs allow simple and fast connection to voltmeters and oscilloscopes. Banana jacks are provided for easy connection to most common power supplies. Plug and play connection to PSM modules and PSDs are made via the DB9 input and supplied DB9 cable.

The OT-301 Position Sensing Amplifier is the easiest, most precise way to process the current output from any position sensing detector (PSD) on the market.

3T series photodetectors are specifically designed for high speed, infra-red laser pulse detection. The detector structure designed to be fully depleted at 60 volts reverse bias, uses high resistivity silicon to achieve very low capacitance. The detectors offer high responsivity in the 800-1000 nm range but are equally suited to high speed application at longer wavelengths where maximum absolute responsivity is not as important as speed of response.

The 4X series of photodetectors are designed specifically for sensing high speed 1064 nm Nd YAG laser pulses. The detector structure is designed to be fully depleted at 150 volts reverse bias and offers high pulsed and DC responsivity at wavelengths up to 1100 nm coupled with an extremely low capacitance per unit area.

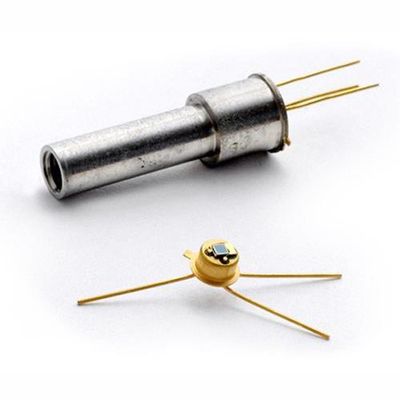

The BPX65 family of detectors feature Centronic’s 1mm2 high speed, high sensitivity chip already successful in a wide variety of applications. The chip can be packaged in various forms suitable for fibre-optic communication, such as the AX65-RF (precisely centred, isolated, low chip to window spacing) a standard 2 or 3 lead TO18 or even epoxy encapsulated. It has also been used for encoder designs and with MIL SPEC release at the heart of advanced laser warning systems.

The AEPX Series of photodiodes is offered in a range of small active area sizes suitable for high frequency fibre optic applications. These photodetectors take advantage of an epitaxial structure to achieve good high frequency response at operating voltages as low as 5 volts. The detectors may also be operated at higher bias levels up to 20 volts to achieve extremely fast pulsed response.

The newest GL Gonio Spectrometer for DUT up to 300 mm! ENTER THE WORLD OF THE GONIOSPECTROMETER GL Optic’s latest innovative product combines the functionality of a goniophotometer with the features of a spectroradiometer to measure brightness and to check angle dependence luminous intensity. MEETING THE DEMANDS OF THE MARKET Traditional goniometers use a photometer as a measuring probe. However, contemporary SSL (Solid State Lighting) such as LED and/or OLED lamps and luminaires require the use of spectroradiometers. This is because LEDs are narrow-banded sources and simple systems based on photodiodes can cause additional errors (due to the LED spectral curve which is limited to a small spectral range).

Series E photodiodes packaged with a colour correcting filter to approximate the response of the human eye.
