Pergam-Suisse AG products

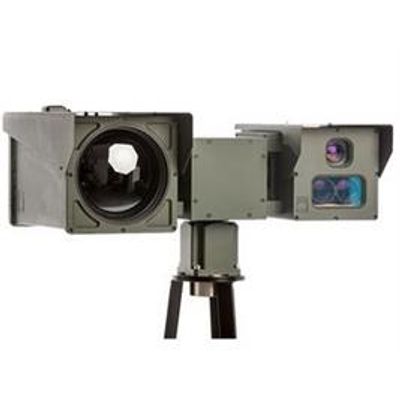

High-performance, multi-sensor pan-tilt zoom PERGAM PTP series thermal are used in different surveillance security and border control systems. These cameras can be integrated into the existing security system or into the brandnew system under development.

Natural gas is composed of more than 75% methane. There is high demand for an easy and cost-efficient method for the detection of methane in all sectors of the natural gas industry. From production through processing and transmission, to distribution; an impressive number of applications can be realized with the LMC (Laser methane copter) including line, tank and asset inspections, landfill emission monitoring, and surveys in difficult to access areas that prevously required scaffolding. LNG and the shale gas industries are other markets with huge opportunities for leak detection Services.

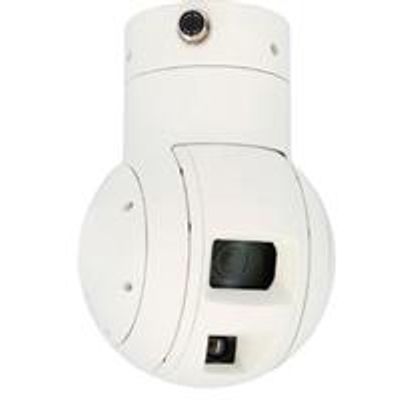

A gyro stabilized system with 2-axis active stabilization, a thermal imaging camera and a video camera. PERGAM S130 is a gyro stabilized PTZ surveillance system which consists of an infra-red channel with an uncooled detector and a FullHD vizible range camera installed on a gyro stabilized PTZ-platform. The system is designed to be used with drones and helicopters.

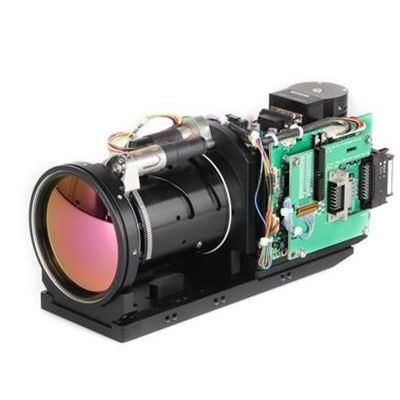

AXION COOLED compact cooled thermal imaging core series for surveillance systems of middle and long range. The InSb detector forms sharp thermal images with the resolution of 640?512 pixels. The core operates in the MWIR range of 3-5 microns.  The cores are equipped with various lenses with the focal distances up to 1450mm.

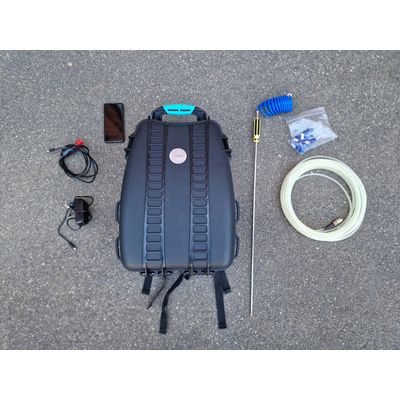

Compact and portable methane gas detector. Truly portable offers the laser methane detector and Laser Methane Mini-G (LMmG) users the ability to detect methane in the distance. Laser Methane is based on utilization of laser absorption spectrophotometer of methane gas for gas measurement.

LMS mini for small areas (up to 600 meters radius). More in small: Junior representative in the line of stationary Pergam scanners. LMS mini is designed to monitor leaks in small to medium sized areas.

The remote gas analyzer is designed to detect methane in the atmospheric air and automatically signal the excess of its concentration. The device measures the intensity of infrared radiation when it passes through an environment in which methane vapor is present. Unlike similar gas analyzers made using open optical path technology, in the Open Path Gas Detector both the transmitter and the infrared receiver are installed in one unit, and a retroreflector is used to reflect the signal.

360° leak detection: SELMA Dome is a remote laser detector on a rotary platform. It is mounted on the vehicle top to monitor gas leaks within a radius of 150 meters.

SELMA Duo is a laser methane detector for local detection of the lowest gas concentrations. Air intakes are mounted at the bottom of the front bumper.

Laser system for detecting methane leaks along transport pipelines and storage areas. ALMA G5 is based on the utilization of laser absorption spectrophotometer of methane gas for gas mesurement. The system detects natural gas leaks by emitting a laser at a particular wavelength and analyzing the light reflection from an object to determine how much was absorbed by the methane in the natural gas. The measured gas volume is expressed by methane column density (ppm × m): methane density (ppm) multiplied by length (m).
