Pergande Group products

The high performance PERGANDE filter, suitable for very fine dust and utilizing pulse-gas cleaning system, are the result of years of research and development. A totaly new diffuser nozzle warrants ideal flow condition inside the filterbag respectively, compered to traditional systems based on the same cleaning supply pressure. The PERGANDE high efficiency fine particle filters with their pulse-gas cleaning system are unequaled in the industry adapted from their high reliability, durability and the know-how based on many years of experience. The PERGANDE-System is protected by international patents.

Pergande has earned its high reputation in the area of speciality custom designed off-gas and dust filtration equipment. Pergande equipment is extensively applied in the chemical and pharmaceutical industries, where standard filtration equipment is not practical, feasible or applicable because of limitation with space, extreme pressure ratings, temperature ratings, and /or exposure to corrosive chemicals for instance.

The high performance vapor filters are a special development of the Pergande filter fabrication. They are used in applications where dust must be separated out of hot vapors. The cleaning mechanism is integrated and heattraced in the head of these special filters in such a way that the clean gas temperature is accurately maintained at the level of the vapor temperature. Thus the vapor is maintained above the dew-point and wetted or clocking filter bags are avoided. Pergande is recognized in the industry as one of the leading enterprises in the area of high performance vapor precipitators.

Pergande is one of the leading enterprises in Europe in the area of pressure shock resistant and pressure rated off-gas filtration equipment. Pressure shock resistant as well as pressure rated equipment is engineered by Pergande as well as the fabrication is done at the in-house production. The approach warrants a high standard of quality in respect to process technology, design as well as fabrication technique, since everything is coordinated from one place.

As leading company for production of SiO2-Filtersystems PERGANDE owns the required know-how starting with design up to manufactoring and installation of such filters. Based on years of research we developed for our PERGANDE-SiO2-Filters amongst others an especially for separation of silica optimized flow guidance as well as a specific face velocity for the filterbags. Together with the patented cleaning system high filtration efficiency are reached.

The Pergande rotary scrubber has been developed together with large chemical companies in Germany.They have now reached a very high standard in terms of performance and reliability. The ability to separate the undesired components from the exhaust gas is maintained even during large variation of the concentration or amounts of exhaust gas. In other words these washers have a very high range of performance, but still low-maintenance products. The live time or durability of the PERGANDE rotary scrubbers is very high as a result of the low gas velocity inside the separator compared to a venturi scrubber, which achieves its efficiency through very high velocities in the venturi throat.

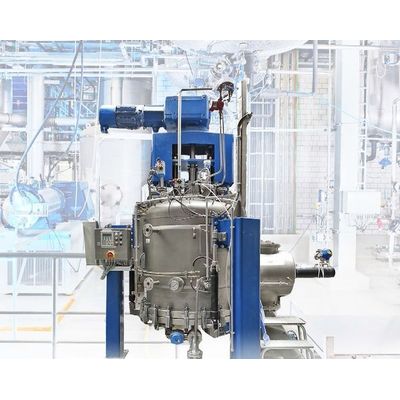

Nutsche filters are extremely suitable for filtering batches of liquids with a high solid content, particularly when the solids will be undergoing challenging post-processing. The liquid is separated mechanically from the solid using a permeable layer (filter medium). This is done using either a vacuum that exploits the atmospheric pressure, or with the help of pressure, or a combination of vacuum and pressure.

Vacuum paddle dryers require minimal space for the largest possible thermal transfer surface. They provide thermally gentle treatment of the products. In comparison to well-known vacuum drying cabinets, they have the advantage of largely automatic product entry and exit, plus they induce high drying speeds by continually changing the position of the product on the heated surface. The entire process takes place within a hermetic conclusion.

Drum dryers are film dryers that ensure particularly quick and gentle drying. The product being dried only comes into contact briefly with the dryer and is exposed to the drying temperature for a few seconds. Drying in a vacuum is even gentler to the product. The system can also be designed as a cooler. The drums are cooled with water or brine to extract heat from the product.

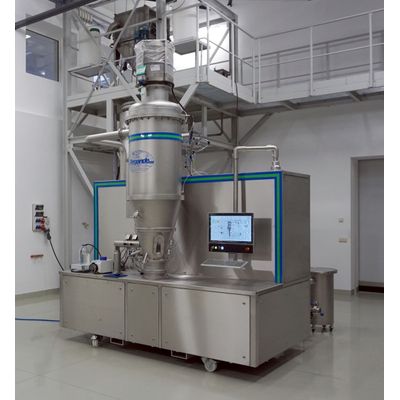

The Pergande lab-scale fluidized bed granulation system is a mobile lab-scale equipment for product and process development for scientific and industrial applications.
