PEVASA products

Polyamide 6, Melting point: 220°, Tensile Strength: 82 N/mm2, Flexural Strength: 3300 N/mm2, Recyclable by depolymerisation 100%, Internal liner of ethylene acid copolymer.

Pipe connections D63mm or D90mm available. Threaded connection top 2" 1/2, 4". 6". Slot sizes for nozzles and distributors, 0,2 mm or 0,5 mm.

Flange Top Threaded 4" 8UN or 2"1/2 8NPSM Pressure vessels (10,5 bar).

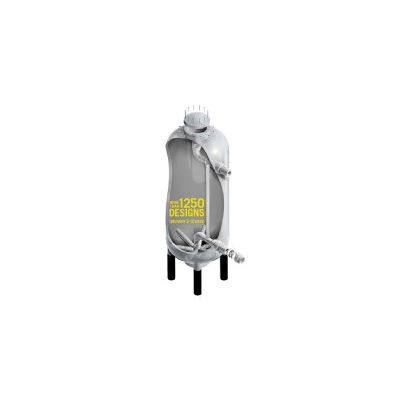

10.5bar pressure tanks for water treatment. Threaded (Top] 4` 8UN or 2``* 8NPSM connection.

Cartridges Type DOE:30”. N^? Cartridges: 21-45. Flow Range m3/h: 30-95.

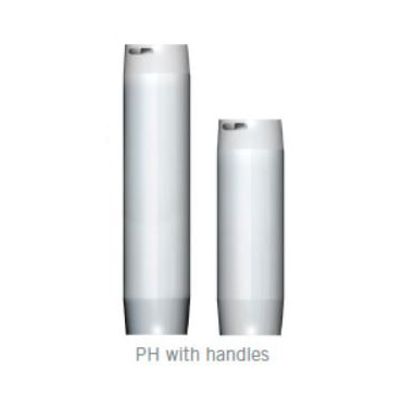

2*`l/2 8NPSM. Portable pressure vessels (10,5 bar) with handles. OPTIONAL: Customizable colors

Flow: 20 m3/hour. N° Bags: 1. Bag Type: 0- RING 0 180 mm. L810 mm. Weight: 26 kg

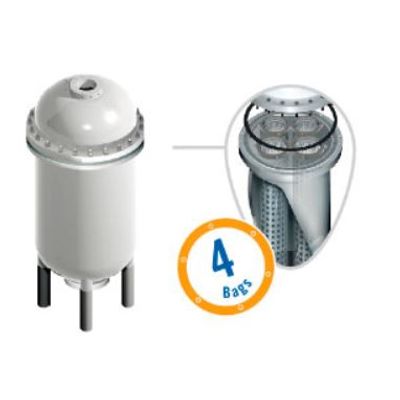

Flow: 80 m3/hour. N° Bags: 4. Bag Type: O-Ring 0 180 mm. L 810 mm. Weight: 51 kg
