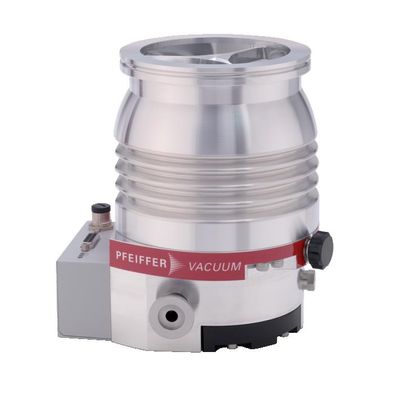

Rugged, powerful turbopump with a pumping speed of up to 260 l/s for N2. Extremely high compression, especially for light gases. Ideal for the generation of an ultra high vacuum. Integrated TC 110 drive electronics. For installation in any orientation. Extensive accessories expand the range of applications. H=Version with extra high compression ratio.

Suitable for HiPace 30, HiPace 80 mini. Required installation elements included in scope of delivery. Standardized 1/8" plug-in screw connection for 8 mm hose connection. Water cooling is mandatory if the pump is to be heated or operated under high gas loads.

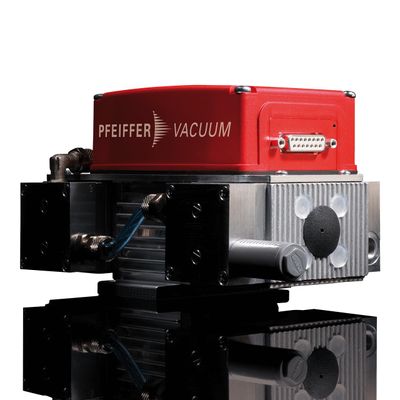

Through its compactness, the diaphragm pump from Pfeiffer Vacuum is ideal for integration in increasingly small analytical systems and turbopumping stations. Beginning with a pumping speed of 0.25 m³ per hour, you can choose from a wide selection of pumps. The strongest of these vacuum pumps manages a pumping speed of max. 4.3 m³/h. The benefits of the diaphragm pump from Pfeiffer Vacuum are numerous, the efficiency and reliability unique.

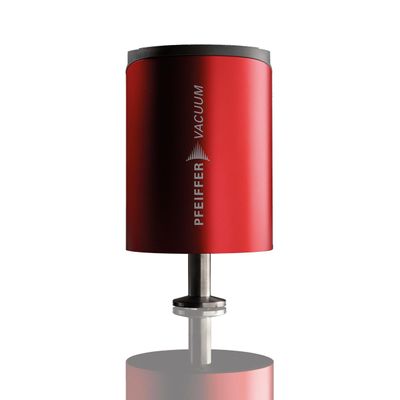

The ActiveLine series offers a wide range of vacuum gauges that work on a variety of measuring principles and have a classic analog outlet. The series thus covers the technically relevant vacuum range from ultra-high vacuum to overpressure. The outlet voltage of the transmitter, that is proportional to the pressure, can be displayed as pressure on the three controllers or read into controllers through analog inputs for further processing.

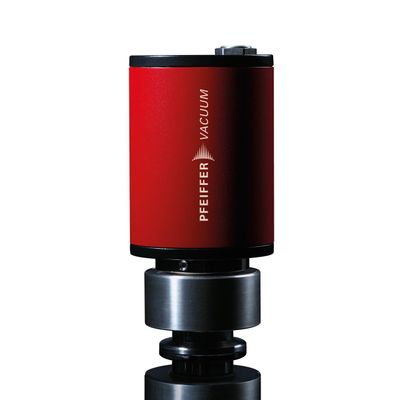

Total pressure vacuum gauge with digital signal outlet. Choice of fieldbus interfaces or analog output with two switch points and LCD display available as options. DigiLine gauges are designed for industrial and research applications requiring total pressure measurement that is reliable and easy to install. The series covers the technically relevant vacuum range with measuring principles encompassing piezo, Pirani, capacitive, hot cathode and cold cathode sensors. All gauges have an RS-485 interface which can be used to connect up to 16 measuring points to a controller. The M12 connector assemblies qualify these vacuum gauges for usage in heavy-duty environments. The gauges can be operated in a communication network with accessories from the current HiPace turbopump range.

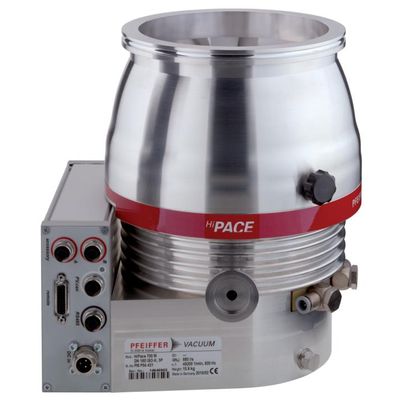

5-axis magnetically levitated turbopump with a pumping speed of 685 l/s for N2. Integrated digital magnetic bearing controller TM 700. Installation in any orientation; flexible through connectivity of up to 4 accessory parts. With integrated water cooling for maximum gas throughput. Interface: Profibus and Remote; Y-Connector M 12 for Profibus included in scope of delivery. The turbopump features extremely low vibration and is oil-free. With In-field sensor calibration. Including venting valve for pulsed venting. Protection Class: IP 54. Extensive accessories expand the range of applications.

Dual-stage rotary vane pumps with a pumping speed of 1.5 m3/h. Extremely low noise, ideal for laboratory applications. Easy integration thanks to the UL and IEC 61010 certification of the entire pump. Optionally with magnetic coupling.

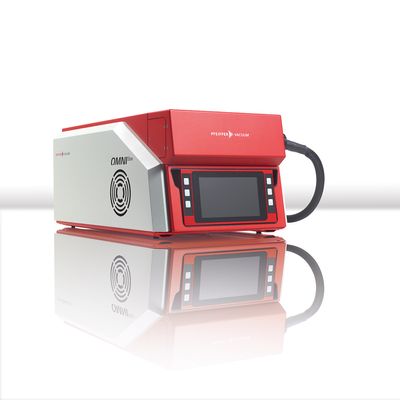

Select the smallest mass range with which the set measuring tasks can be performed. This ensures maximum sensitivity. Gas inlet with stainless steel capillary and inlet valve.

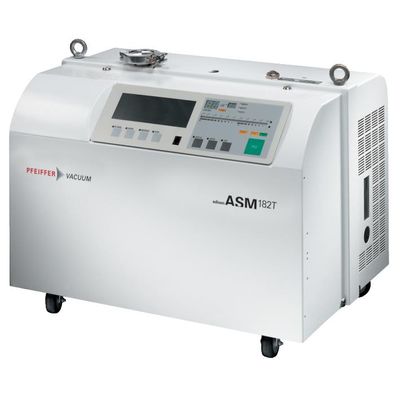

Powerful rotary vane pump with 20 m3/h backing capacity. 4.4 l/s helium pumping speed. 200/240 V operating voltage. European power cable. Operator interface and voice synthesizer in French.

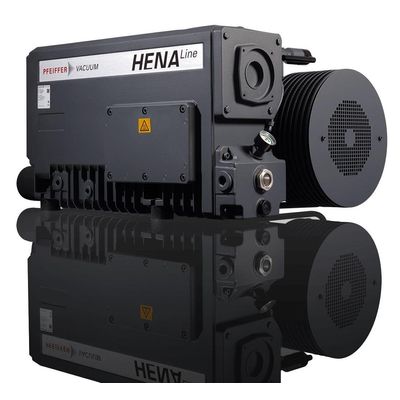

Single-stage rotary vane pumps from Pfeiffer Vacuum have long been some of the most widely used products for processes in the low and medium vacuum range. Their long life and pumping speed, irrespective of the gas used, are the outstanding properties of this pump.
